Home › Lexus › 2003 › LX 470 › Repair and Diagnosis › Transmission › Transfer Case › Transfer Case System › Transfer Shift Lever Assembly › Components

Transfer Shift Lever Assembly: Components

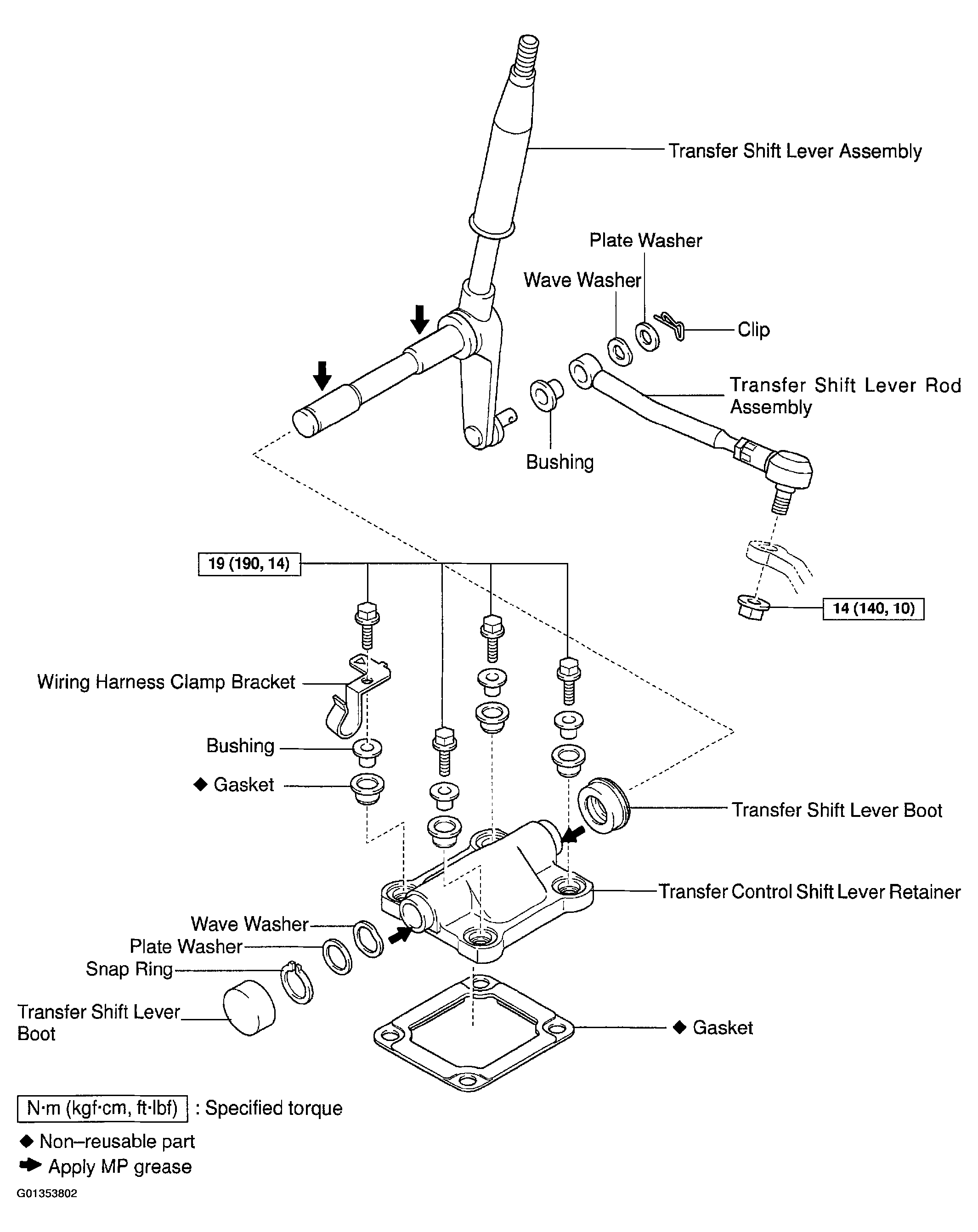

Fig 1: Identifying Transfer Shift Lever Assembly Components
G01353802Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
