Engine Room Junction Block

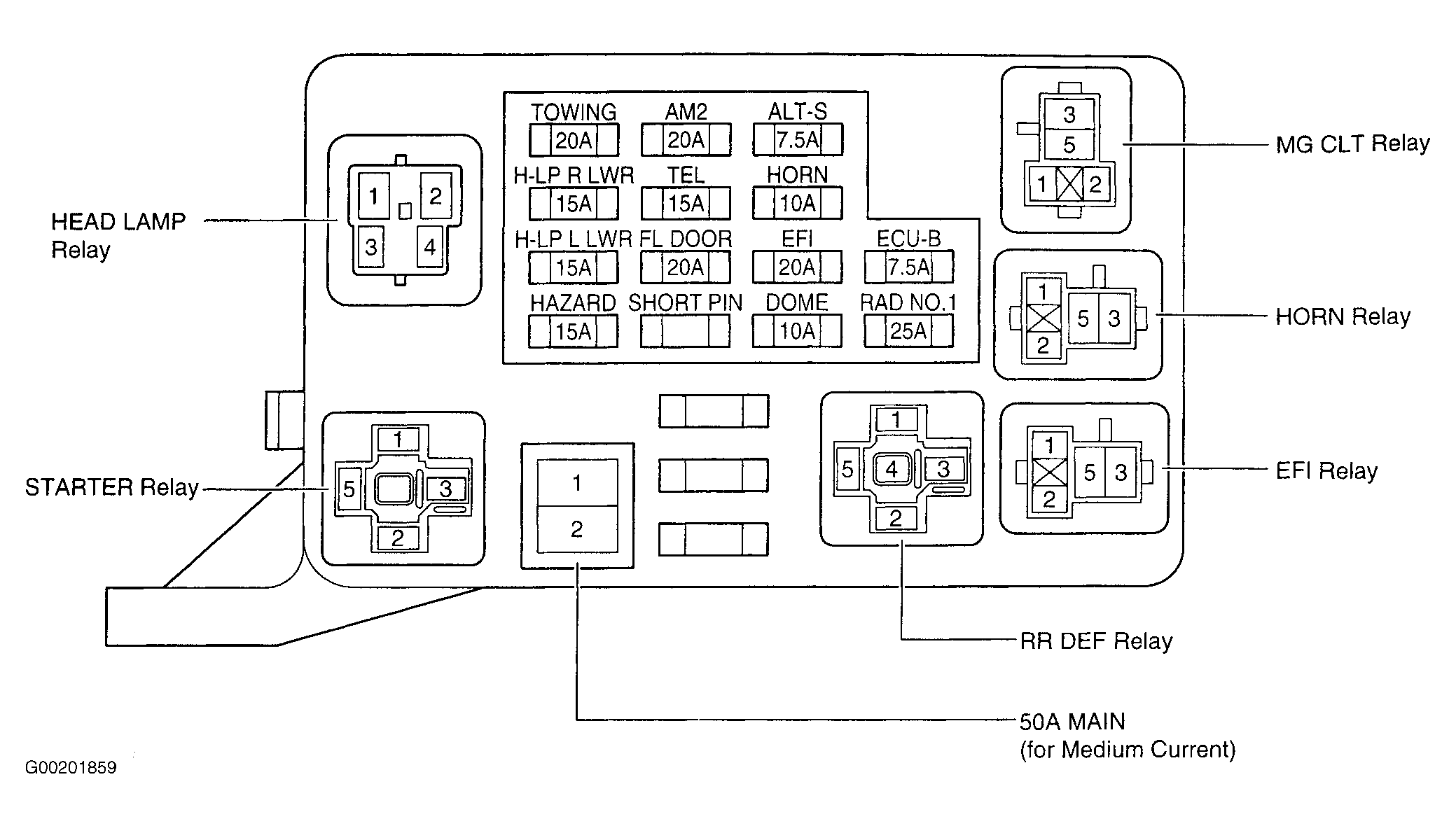

ENGINE COMPARTMENT JUNCTION BLOCK (J/B) RELAY IDENTIFICATION
| RELAY DESCRIPTION |
|---|
| STARTER Relay |
| Head LAMP Relay |
| MG CLT Relay |
| Horn Relay |
| EFI Relay |
| RR DEF Relay |
ENGINE ROOM JUNCTION BLOCK FUSE IDENTIFICATION LEGEND
| Fuse | System | |
|---|---|---|
| 7.5A | ALT-S | Charging |
| 7.5A | ECU-B | Automatic Air Conditioning Automatic Light Control Combination Meter Headlight Interior Light Key Reminder and Seat Belt Warning Light Auto Turn Off Multiplex Communication System Power Window Theft Deterrent and Door Lock Control Wireless Door Lock Control |
| 10A | DOME | Automatic Air Conditioning Combination Meter Garage Door Opener Interior Light LEXUS Navigation System |
| 10A | DOME | Moon Roof Multiplex Communication System Power Seat (w/ Driving Position Memory) Radio and Player |
| 10A | HORN | Horn Multiplex Communication System |
| 15A | HAZARD | Trailer Towing Turn Signal and Hazard Warning |
| 15A | H-LP L LWR | Headlight Multiplex Communication System |
| 15A | H-LP R LWR | Combination Meter Headlight Multiplex Communication System |
| M5A | TEL | Cellular Mobile Telephone |
| 20A | AM2 | Engine Control and Engine Immobiliser System Starting and Ignition |
| 20A | EFI | Electronically Controlled Transmission and A/T Indicator Engine Control and Engine Immobiliser System |
| 20A | FL DOOR | Automatic Light Control Interior Light Key Reminder and Seat Belt Warning Light Auto Turn Off Multiplex Communication System Power Window Theft Deterrent and Door Lock Control Wireless Door Lock Control |
| 20A | TOWING | Trailer Towing |
| 25A | RAD NO.1 | Auto Antenna Radio and Player |
| 50A | MAIN | Automatic Light Control Headlight Headlight Beam Level Control Light Auto Turn Off Multiplex Communication System Starting and Ignition |
