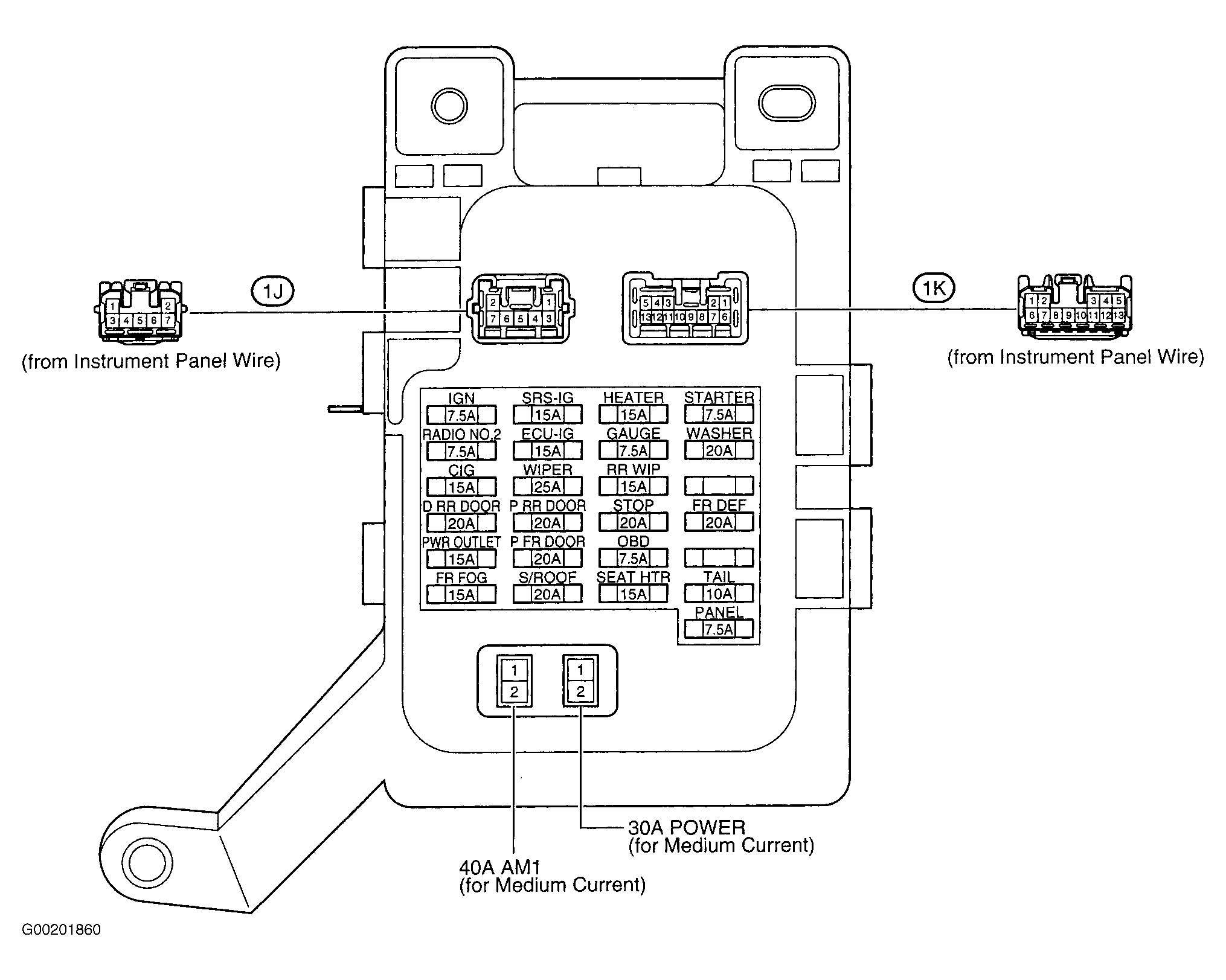

Instrument Panel Junction Block
INSTRUMENT PANEL JUNCTION BLOCK FUSE IDENTIFICATION LEGEND
| Fuse | System | |
|---|---|---|
| 7.5A | GAUGE | Automatic Air Conditioning Automatic Light Control Back-Up Light Cruise Control Electric Tension Reducer Electronically Controlled Transmission and A/T Indicator Headlight Interior Light Key Reminder and Seat Belt Warning LEXUS Navigation System Light Auto Turn Off Mirror Heater and Window Defogger Multiplex Communication System Power Window Seat Heater Stop Light Taillight Theft Deterrent and Door Lock Control Trailer Towing Turn Signal and Hazard Warning VSC Wireless Door Lock Control |
| 7.5A | IGN | Electronically Controlled Transmission and A/T Indicator Engine Control and Engine Immobiliser System SRS |
| 7.5A | OBD | Engine Control and Engine Immobiliser System |
| 7.5A | PANEL | Illumination LEXUS Navigation System |
| 7.5A | RADIO NO.2 | Auto Antenna Automatic Air Conditioning Cellular Mobile Telephone Key Reminder and Seat Belt Warning LEXUS Navigation System Multiplex Communication System Radio and Player |
| 7.5A | STARTER | Engine Control and Engine Immobiliser System Starting and Ignition |
| 10A | TAIL | Fog Light Multiplex Communication System Taillight Trailer Towing |
| 15A | CIG | Cigarette Lighter Remote Control Mirror Shift Lock |
| 15A | ECU-IG | Auto Antenna Automatic Glare-Resistant EC Mirror and Compass Cellular Mobile Telephone Charging Cruise Control Headlight Beam Level Control Moon Roof Power Seat (w/ Driving Position Memory) Shift Lock VSC |
| 15A | FR FOG | Fog Light Multiplex Communication System |
| 15A | HEATER | Automatic Air Conditioning Charging Combination Meter Cruise Control Electronically Controlled Transmission and A/T Indicator Engine Control and Engine Immobiliser System Headlight Beam Level Control Key Reminder and Seat Belt Warning Mirror Heater and Window Defogger Multiplex Communication System Radiator Fan and Condenser Fan SRS Stop Light Taillight VSC |
| 15A | PWR OUTLET | Power Outlet |
| 15A | RR WIP | Multiplex Communication System Rear Wiper and Washer |
| 15A | SEAT HTR | Seat Heater |
| 15A | SRS-IG | SRS |
| 20A | D RR DOOR | Interior Light Multiplex Communication System Power Window Theft Deterrent and Door Lock Control Wireless Door Lock Control |
| 20A | FR DEF | Mirror Heater and Window Defogger |
| 20A | P FR DOOR | Interior Light Multiplex Communication System |
| 20A | P FR DOOR | Power Window Theft Deterrent and Door Lock Control Wireless Door Lock Control |
| 20A | P RR DOOR | Interior Light Multiplex Communication System Power Window Theft Deterrent and Door Lock Control Wireless Door Lock Control |
| 20A | STOP | Cruise Control Electronically Controlled Transmission and A/T Indicator Engine Control and Engine Immobiliser System Multiplex Communication System Shift Lock Stop Light Trailer Towing VSC |
| 20A | S/ROOF | Moon Roof |
| 20A | WASHER | Front Wiper and Washer Multiplex Communication System Rear Wiper and Washer |
| 25A | WIPER | Front Wiper and Washer |
| 30A | POWER | Power Seat (w/ Driving Position Memory) Power Seat (w/o Driving Position Memory) |
| 40A | AM1 | Power Outlet |
