Intake Air Control Valve Assembly (ES300)
NOTE:
Do not adjust adjusting screw.

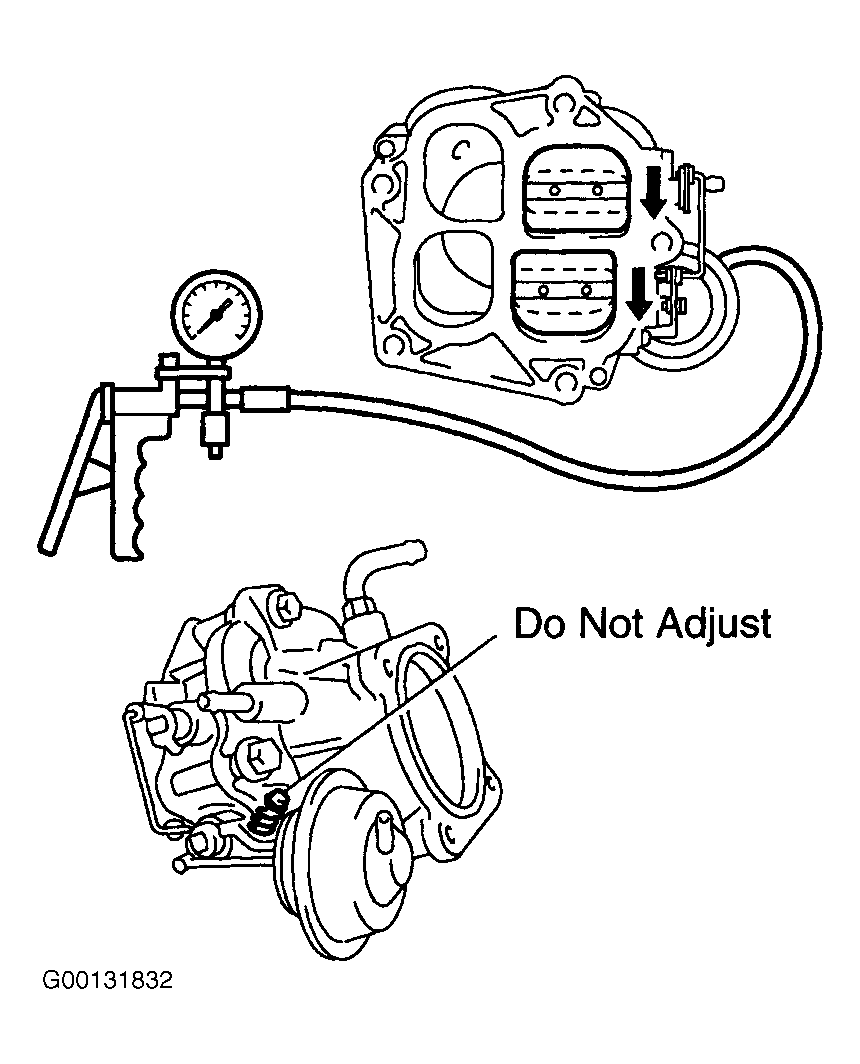

- With 7.9 in. Hg (27 kPa) of vacuum applied to actuator, check that actuator rod moves. See Fig 1.
- One minute after applying vacuum, check that actuator rod does not return.
- If operation is not as specified, replace intake air control valve assembly.
