Power Steering Gear: Components

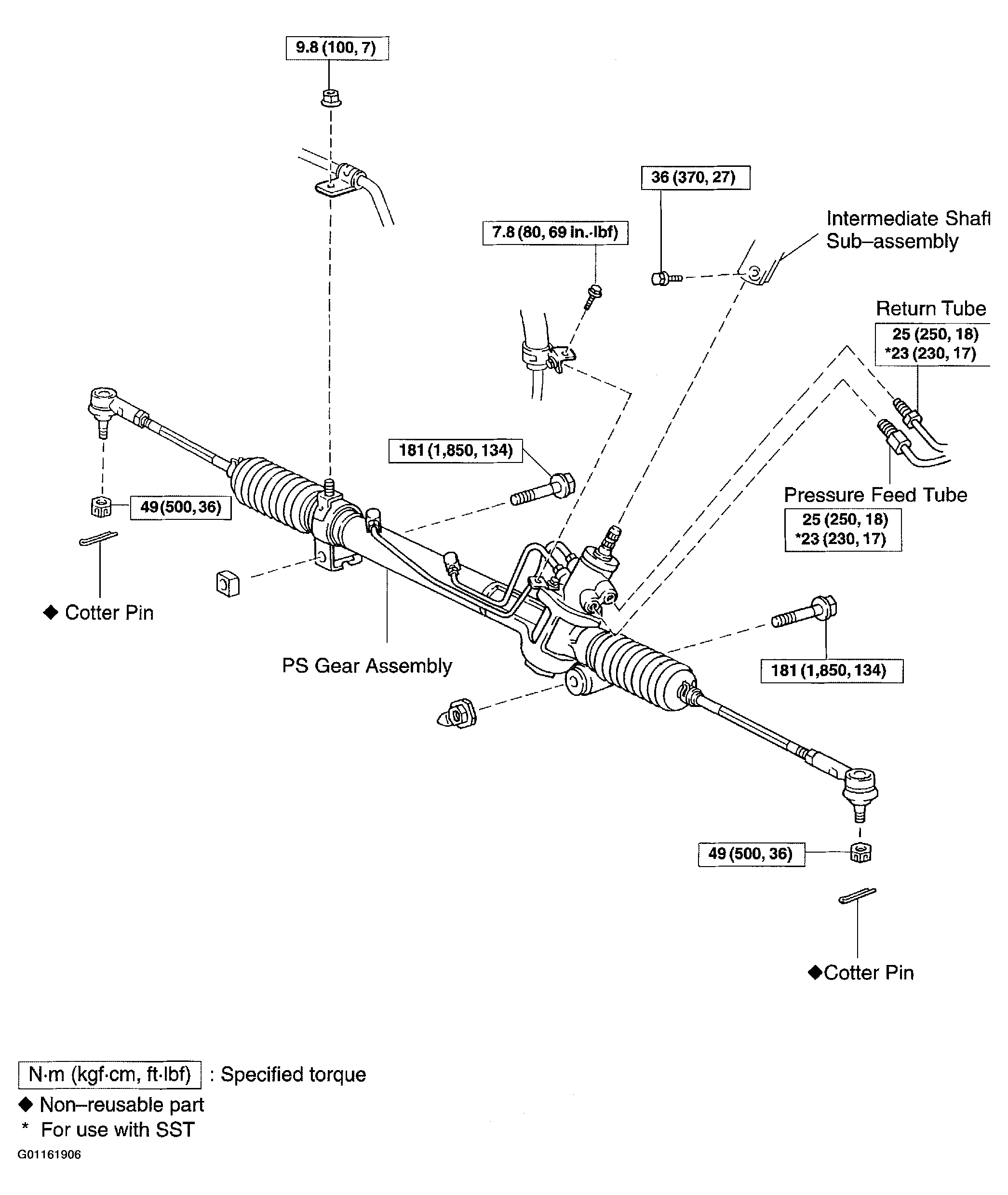

Fig 1: Removing/Installing Power Steering Gear

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

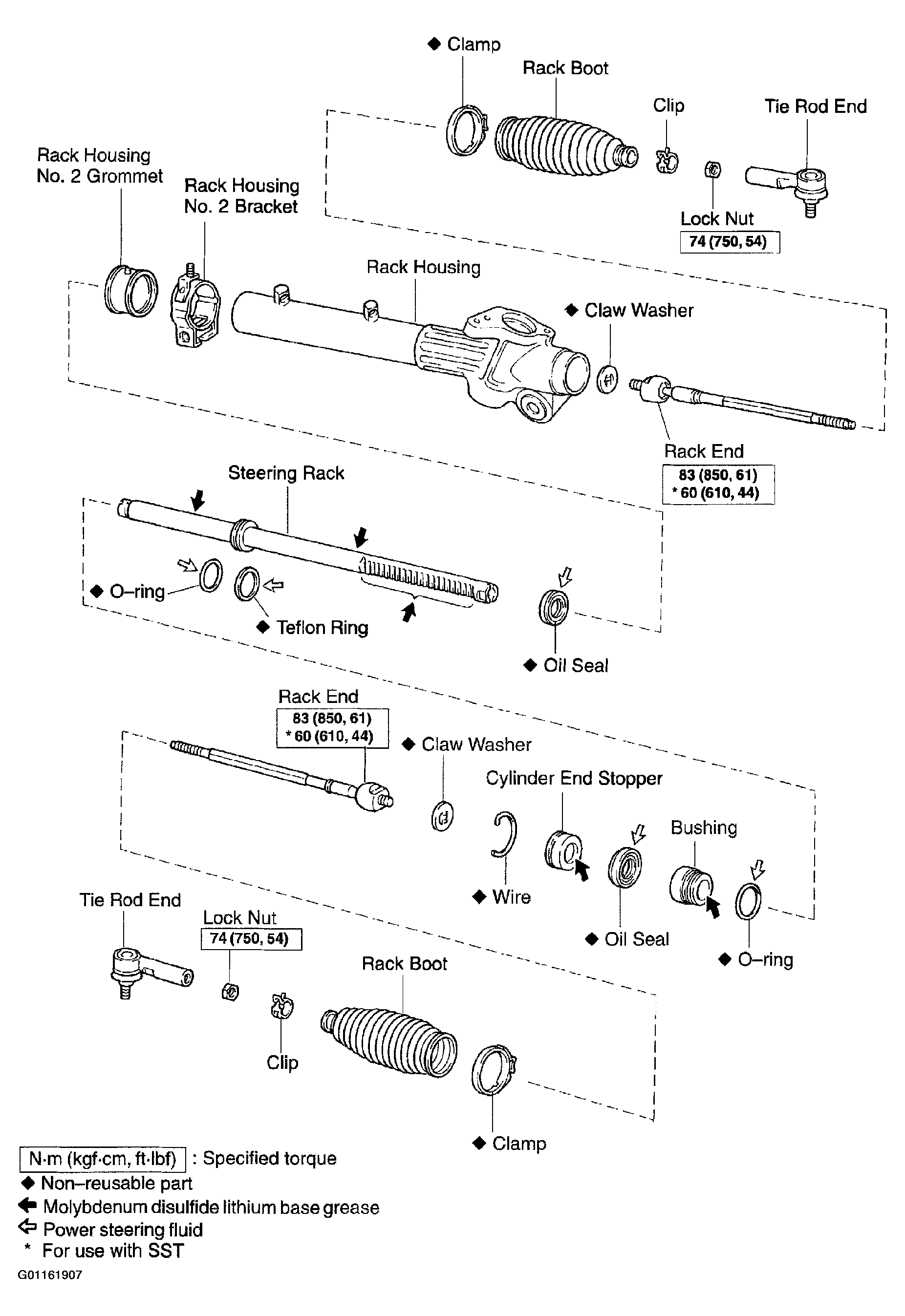

Fig 2: Exploded View Of Bleed Power Steering System (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

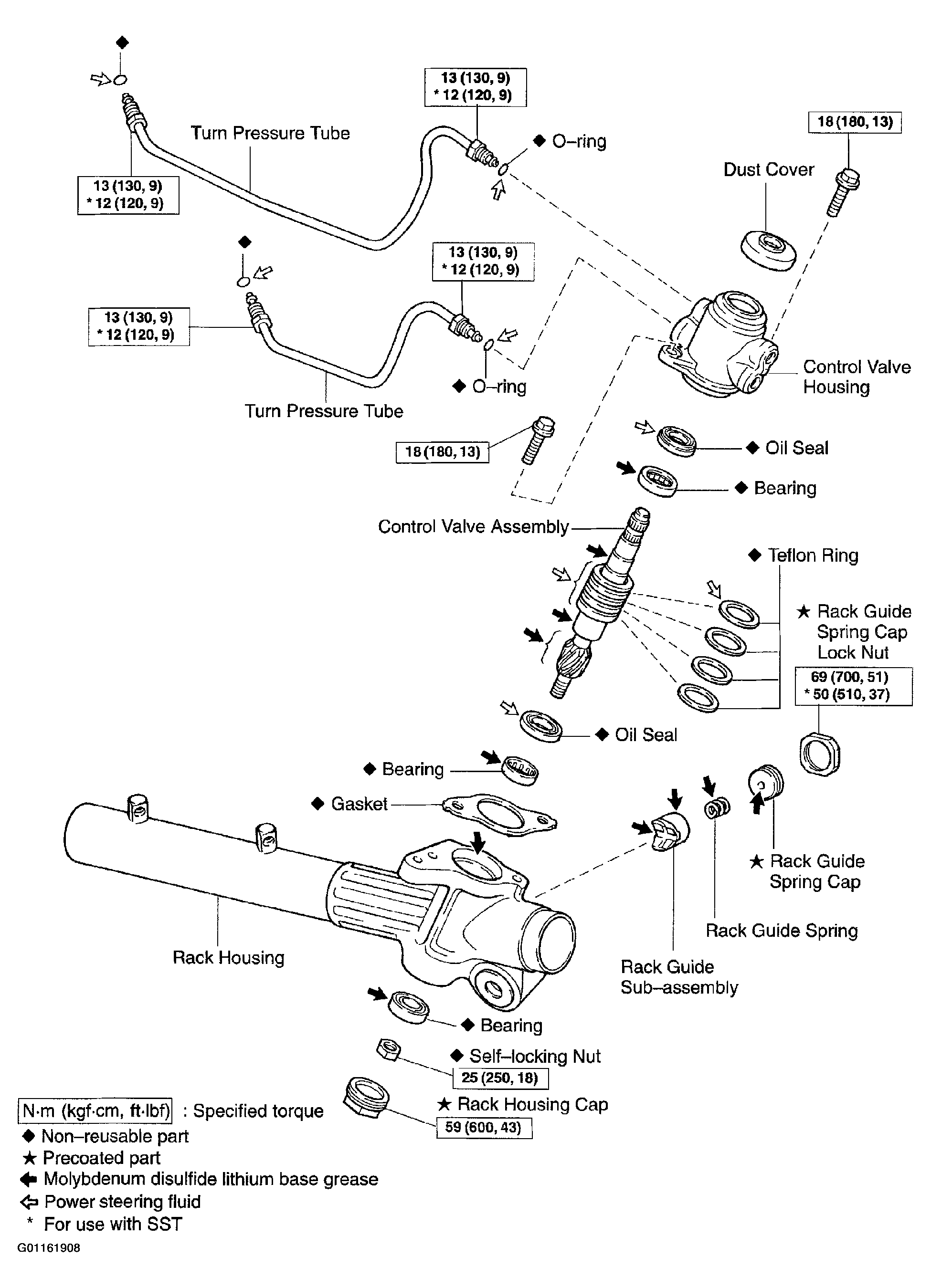

Fig 3: Exploded View Of Bleed Power Steering System (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
