Automatic Transaxle Unit (U140E): Components

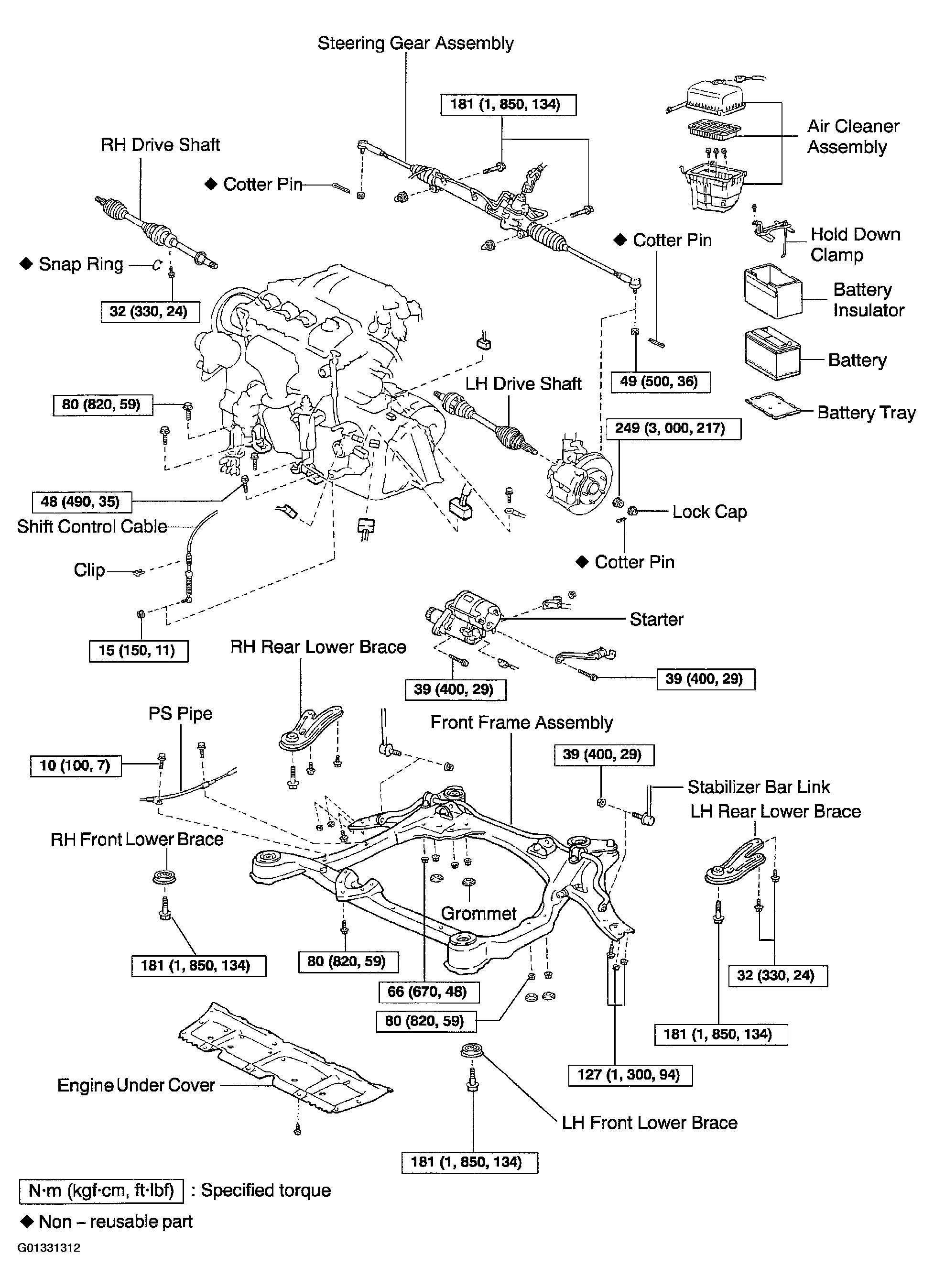

Fig 1: Identifying Automatic Transaxle Unit (U140E) Components (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

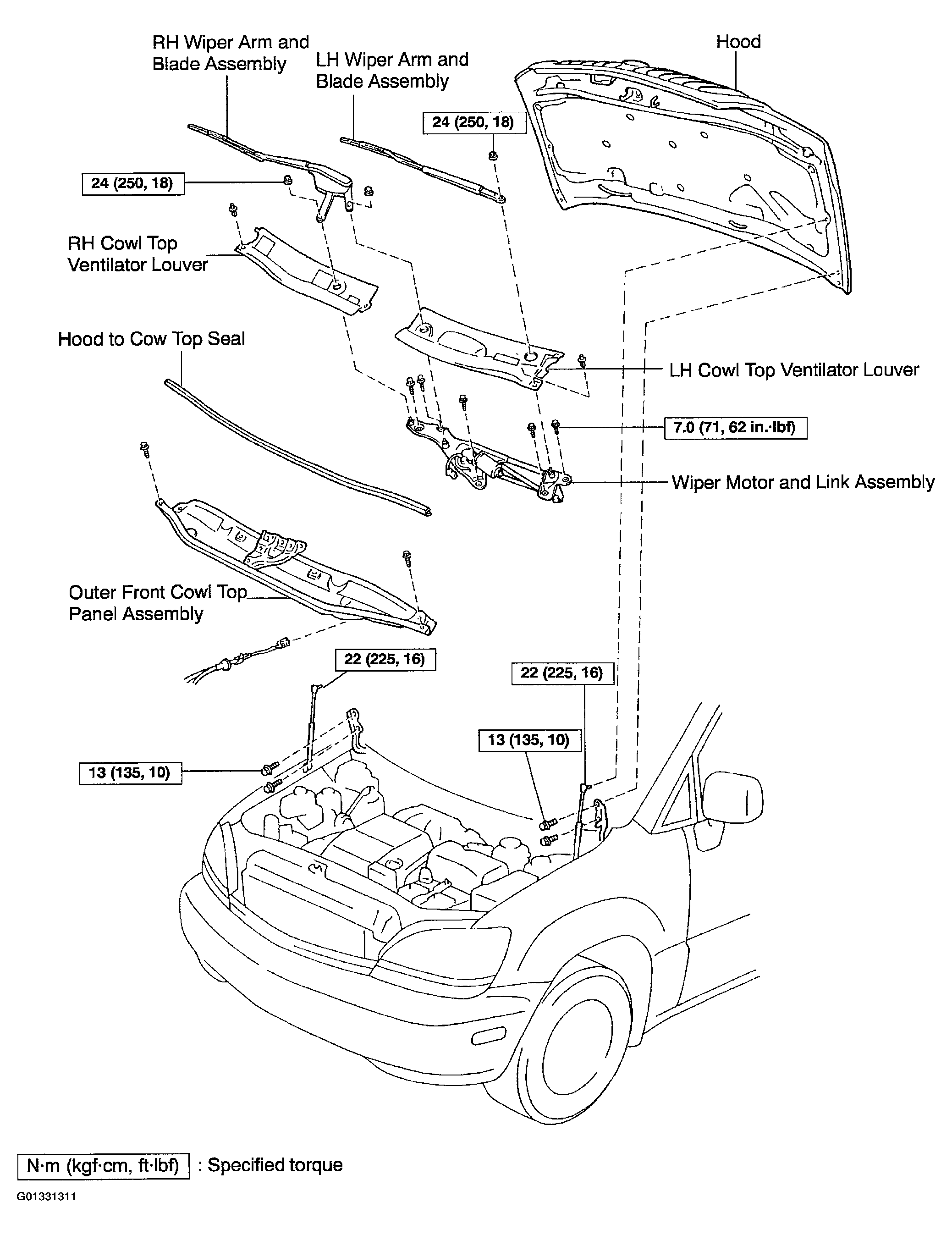

Fig 2: Identifying Automatic Transaxle Unit (U140E) Components (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

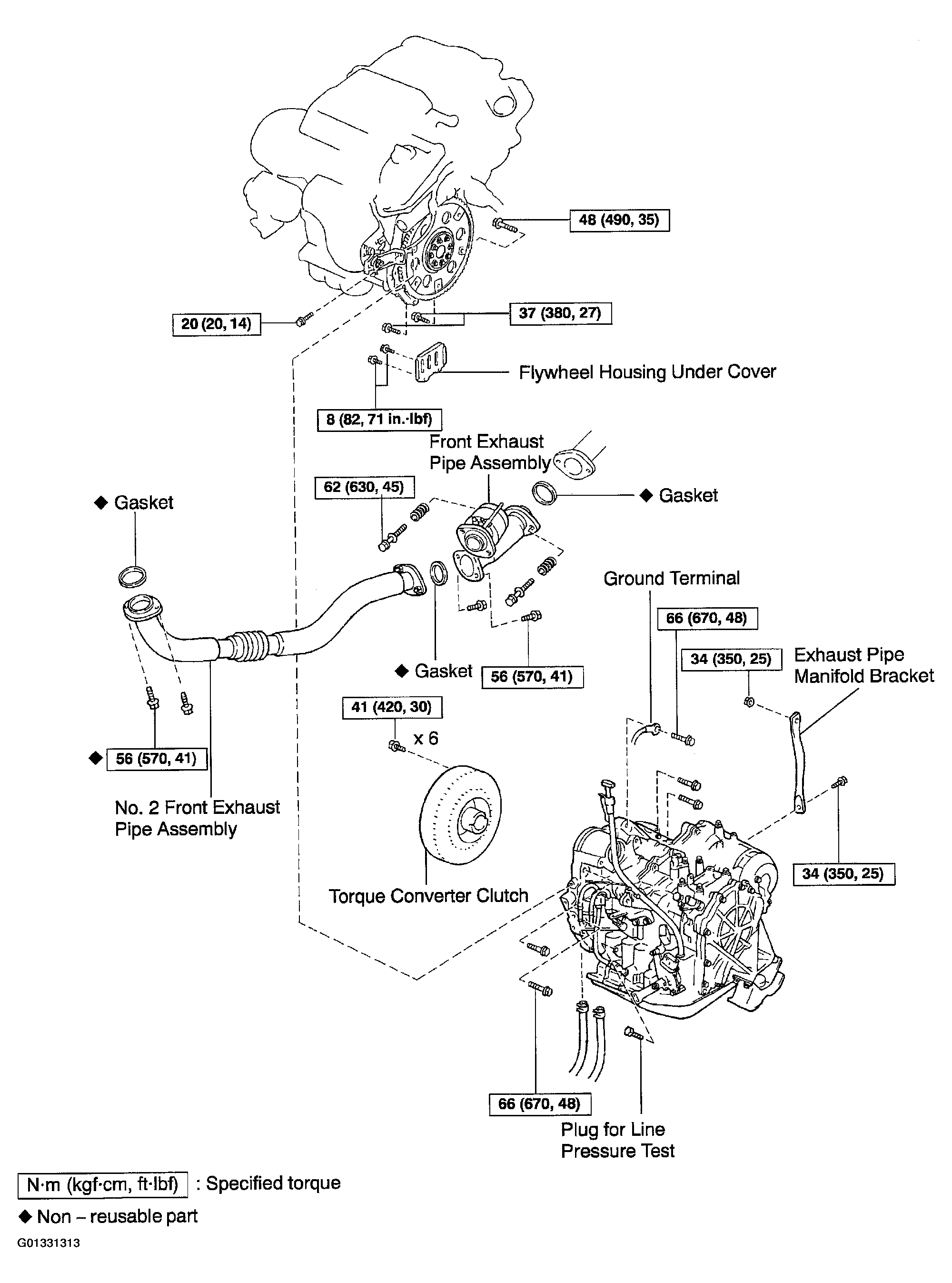

Fig 3: Identifying Automatic Transaxle Unit (U140E) Components (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
