Automatic Transaxle Unit (U140F): Components

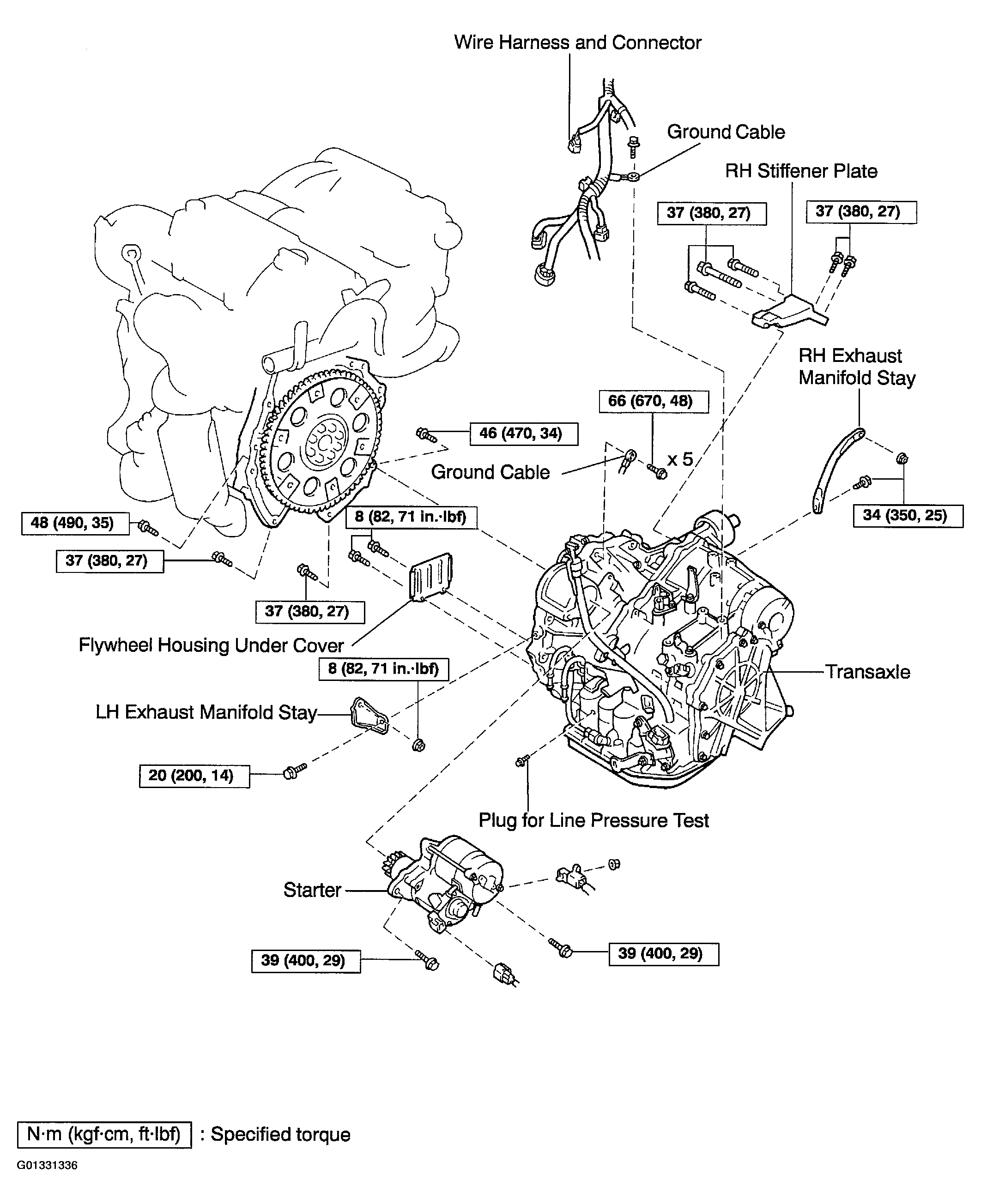

Fig 1: Automatic Transaxle Unit (U140F) Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
