Back Window Frame Sub-ASSY Upper: Components: Notes

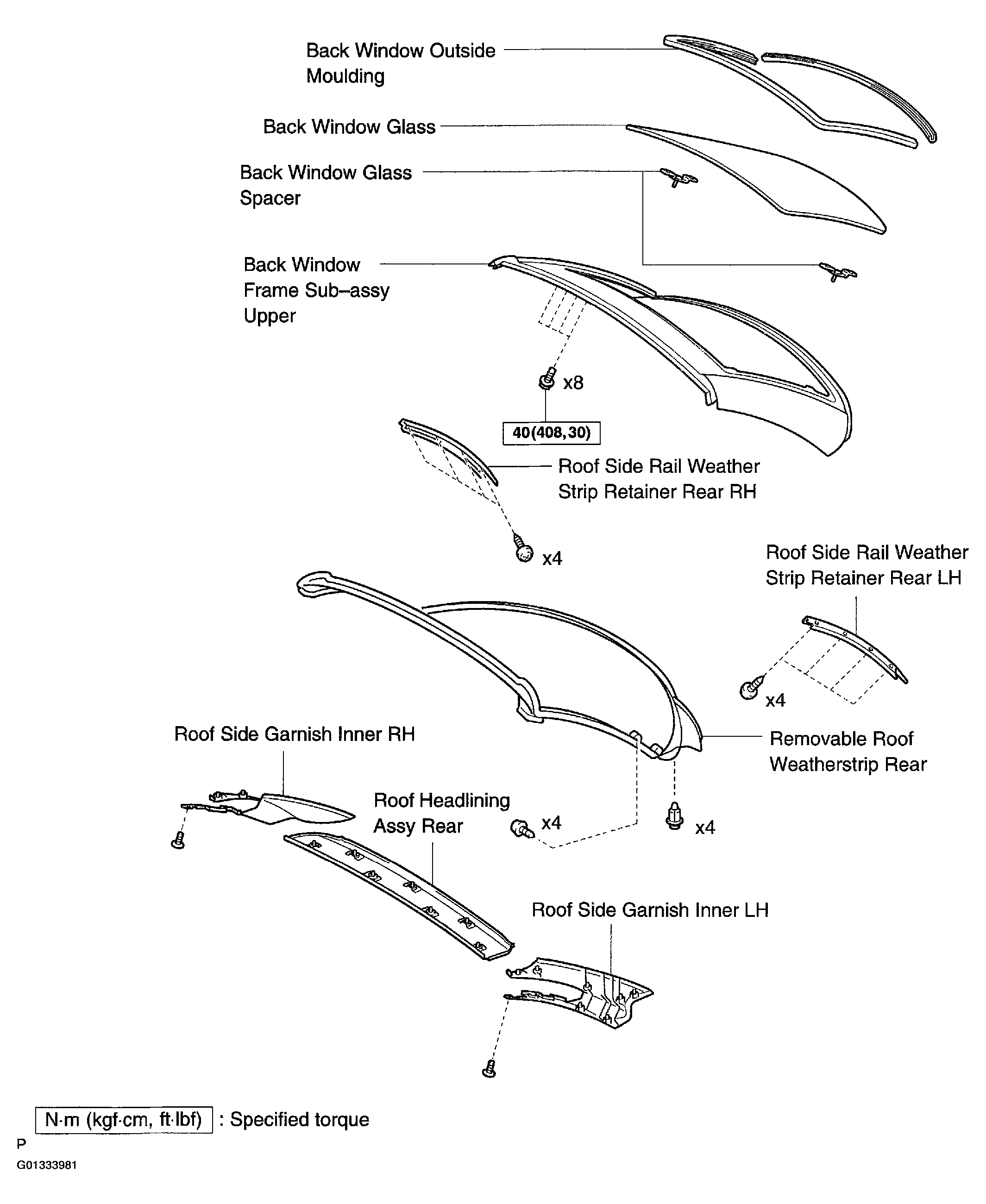

Fig 1: Identifying Back Window Frame Sub-Assy Upper Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
