Telephone Transceiver ASSY (2003 My): Components

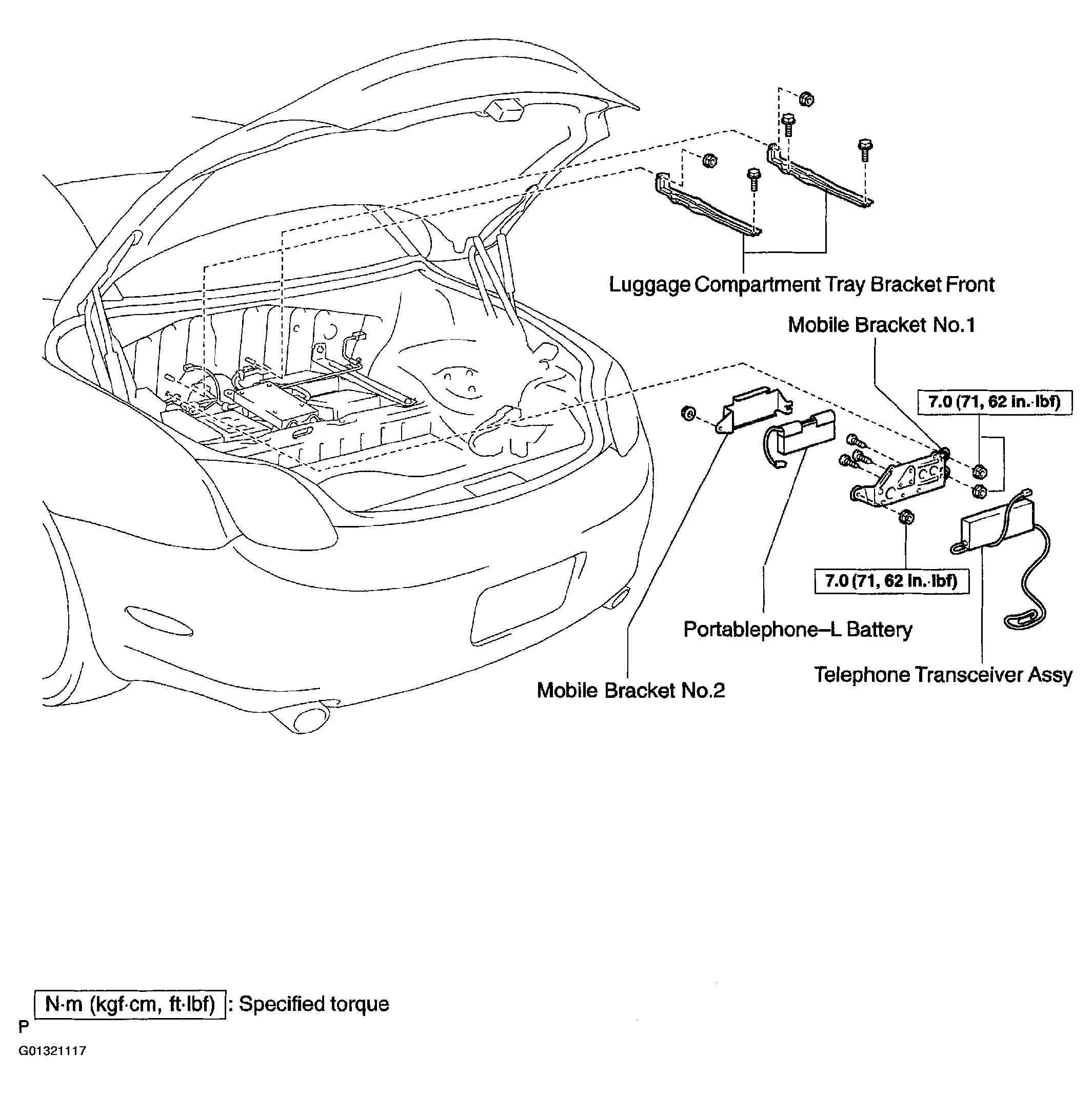

Fig 1: Identifying Telephone Transceiver Assy (2003 My) Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Identifying Telephone Transceiver Assy (2003 My) Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
