Power Door Lock Control System - Diagnosis
›
Location
Power Door Lock Control System - Diagnosis: Location

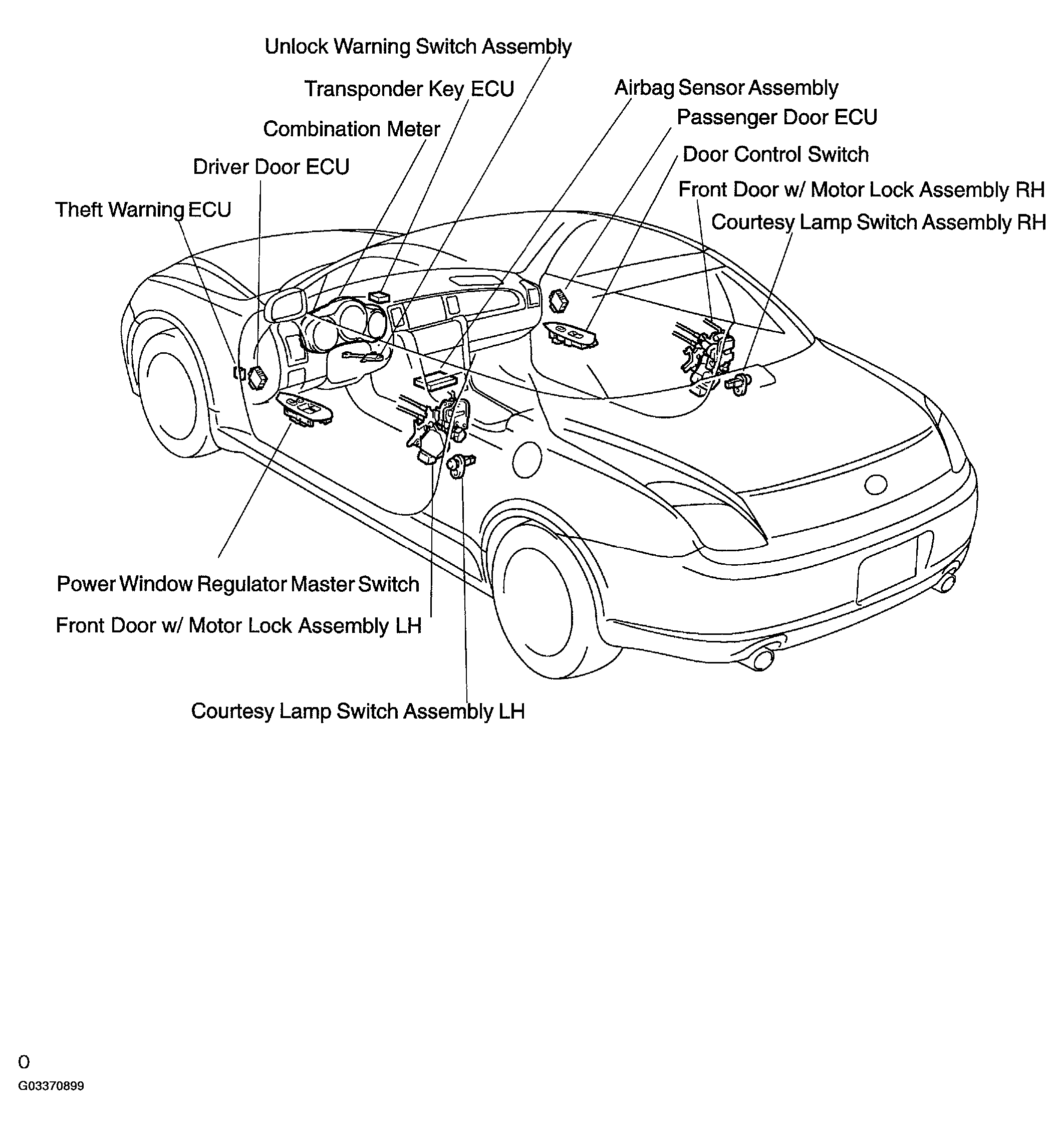

Fig 1: Identifying Power Door Lock Control System Components Location
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
