Body & Frame
›
Sun Roof/T-Top/Convertible Top
›
Sliding Roof System
›
Roof Panel RH Link Sub-ASSY
›
Components
Roof Panel RH Link Sub-ASSY: Components

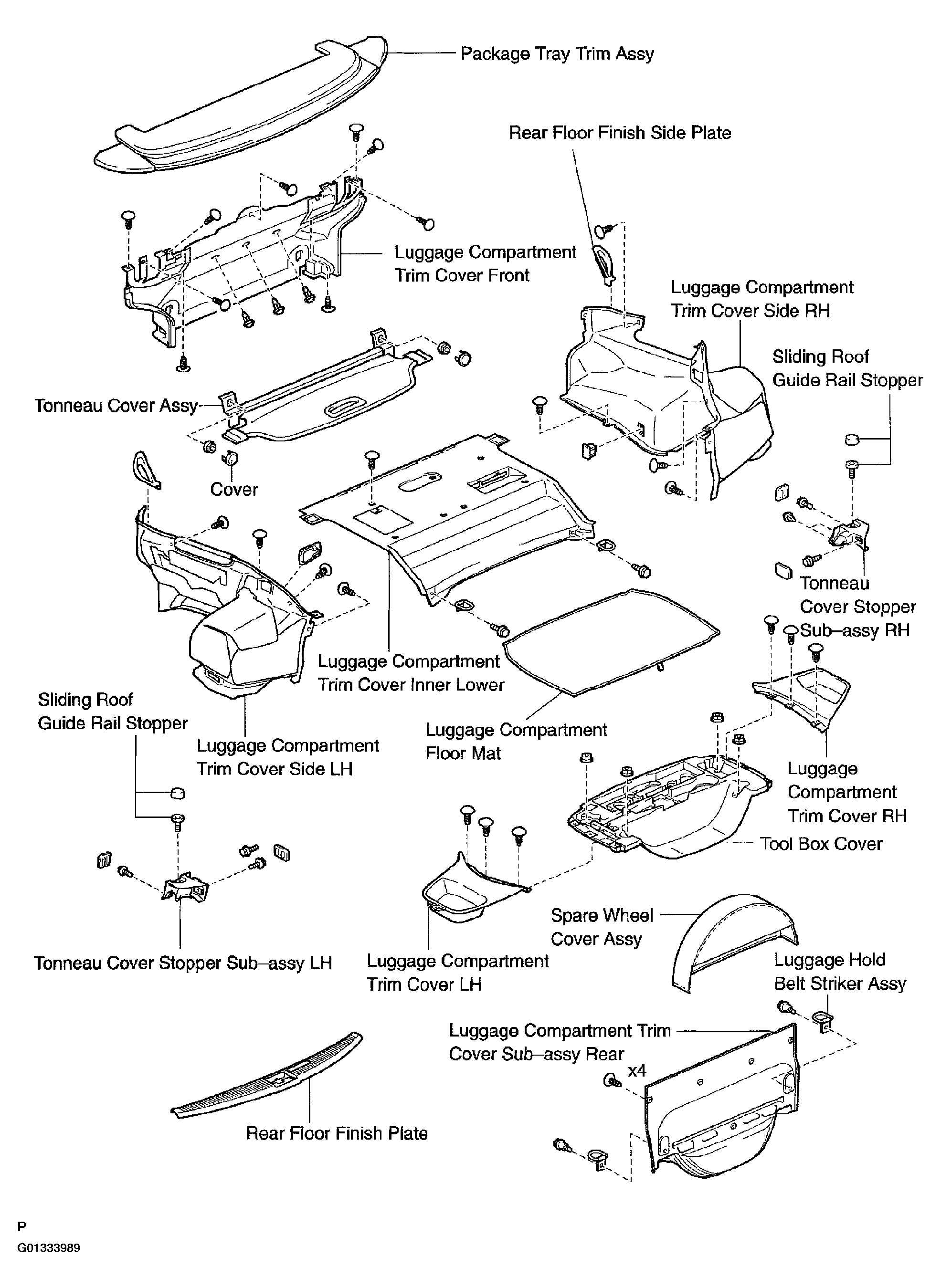

Fig 1: Identifying Roof Panel RH Link Sub-Assy Components (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

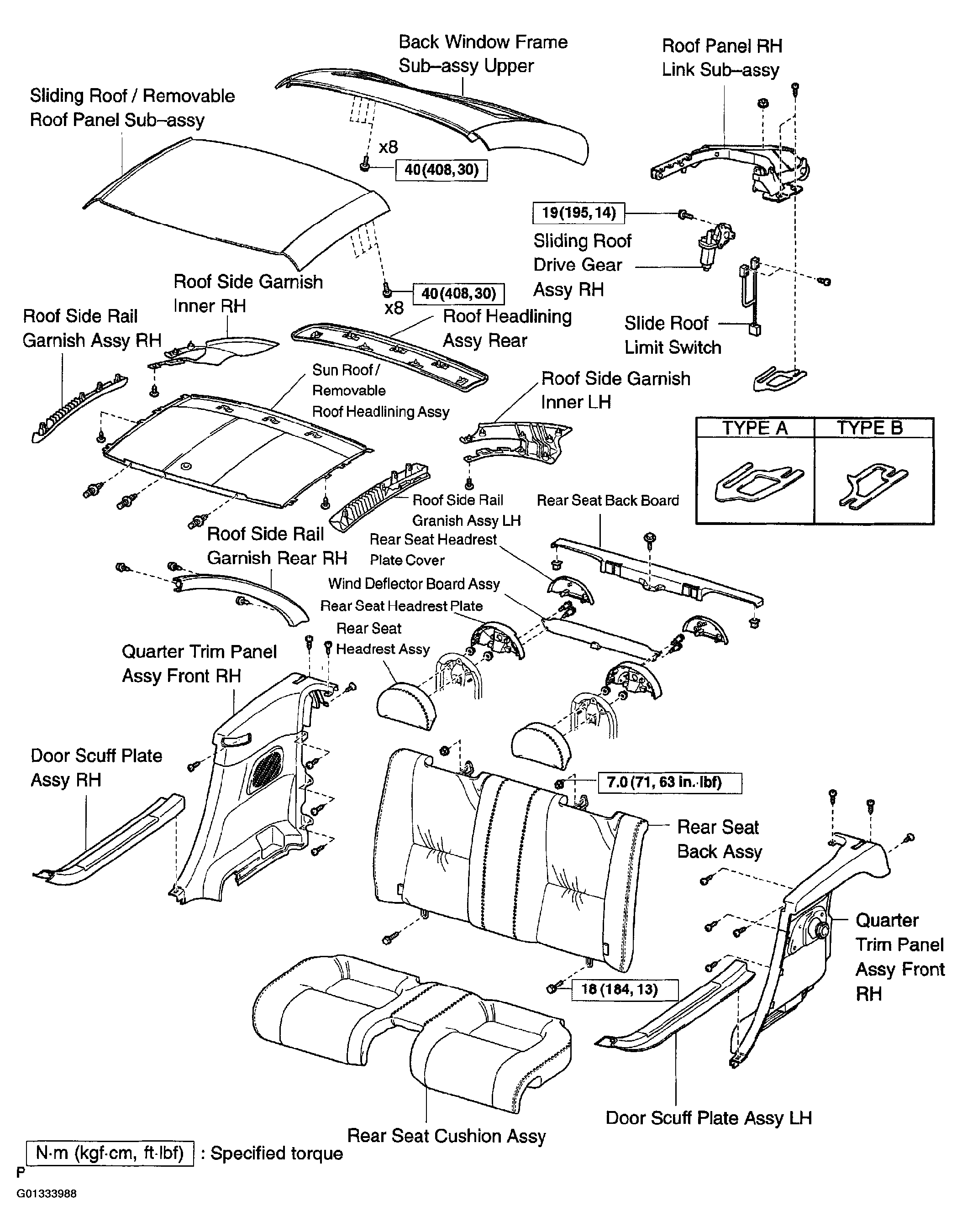

Fig 2: Identifying Roof Panel RH Link Sub-Assy Components (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
