Sliding Roof/Removable Roof Panel Sub-ASSY: Components

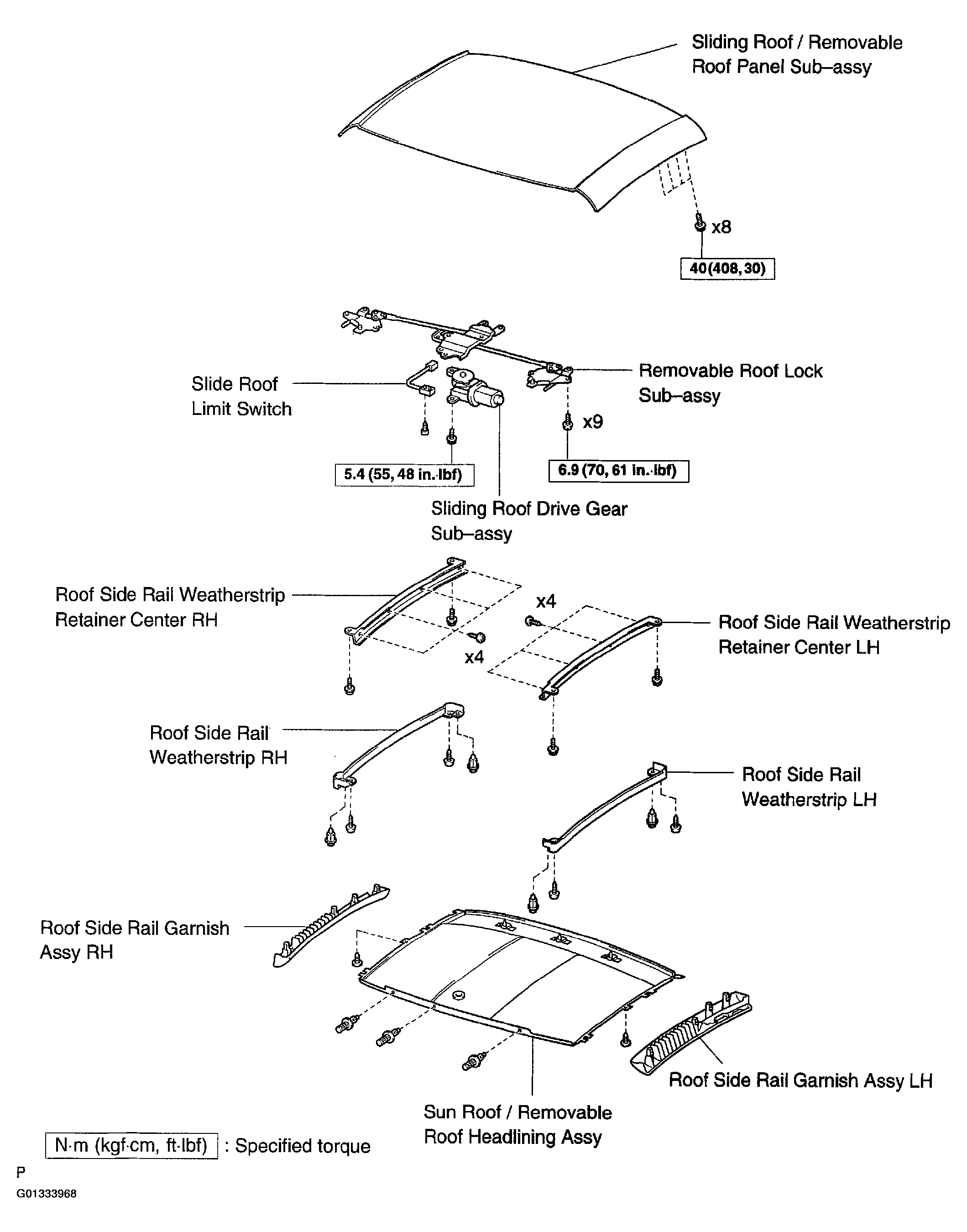

Fig 1: Identifying Sliding Roof/Removable Roof Panel Sub-Assy Components
