Power Window Control System - Diagnosis
›
Power Window Does Not Operate Via Passenger Power Window Switch
›
Wiring Diagram
Power Window Does Not Operate Via Passenger Power Window Switch: Wiring Diagram

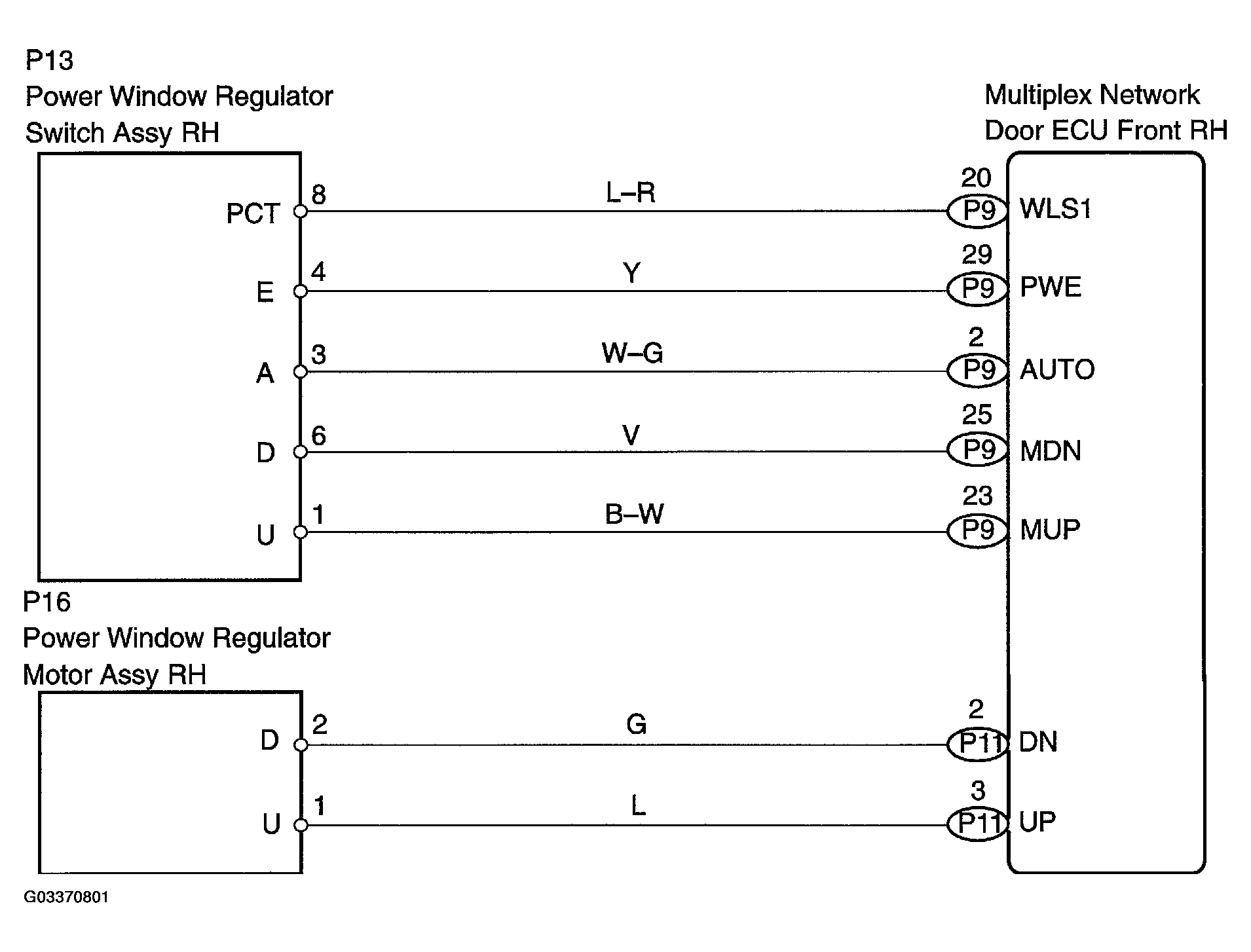

Fig 1: Power Window Regulator Switch Assembly Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
