Wheel Speed Sensor (Front): Removal

1. Remove front wheel and front fender liner.
2. Disconnect the speed sensor connector. See Fig 1.
3. Remove the resin clip and 2 clamp bolts holding the sensor harness.
4. Remove the bolt and speed sensor. See Fig 2.

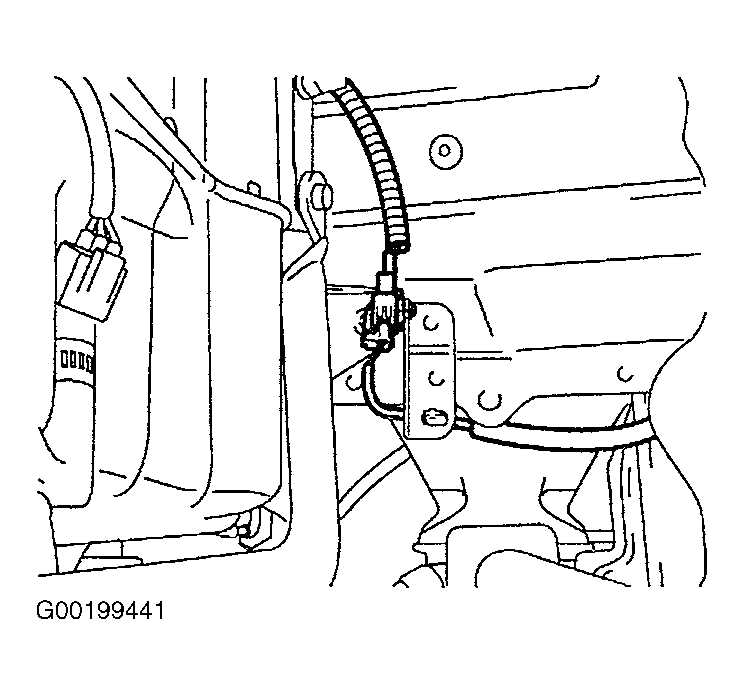

Fig 1: Locating Speed Sensor Connector

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

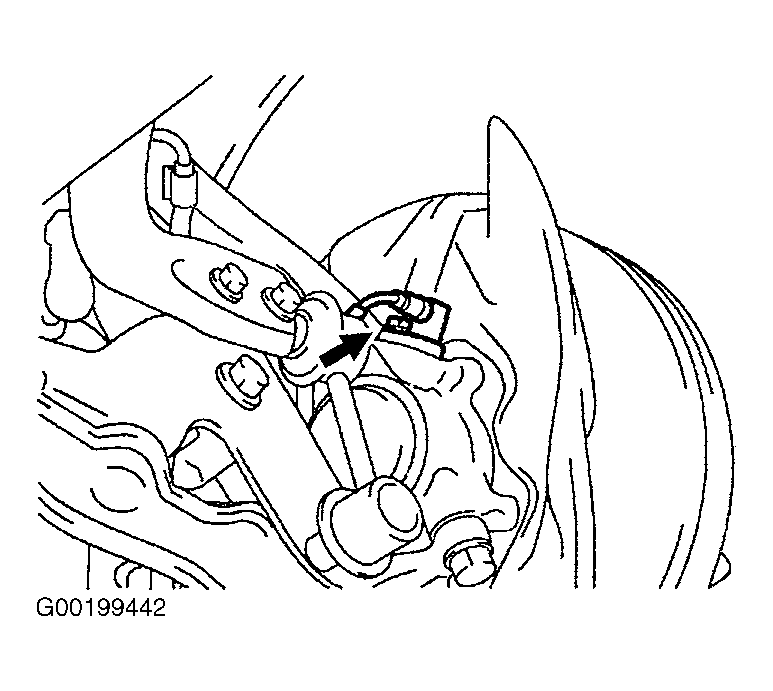

Fig 2: Removing Speed Sensor

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
