Test C: DTC Always On, Malfunction In Ecu (VSC Warning Light)
›
Testing Procedure
Testing Procedure
For wiring diagram see
Figure
. For testing procedure see
Fig 1
and
Fig 2
.

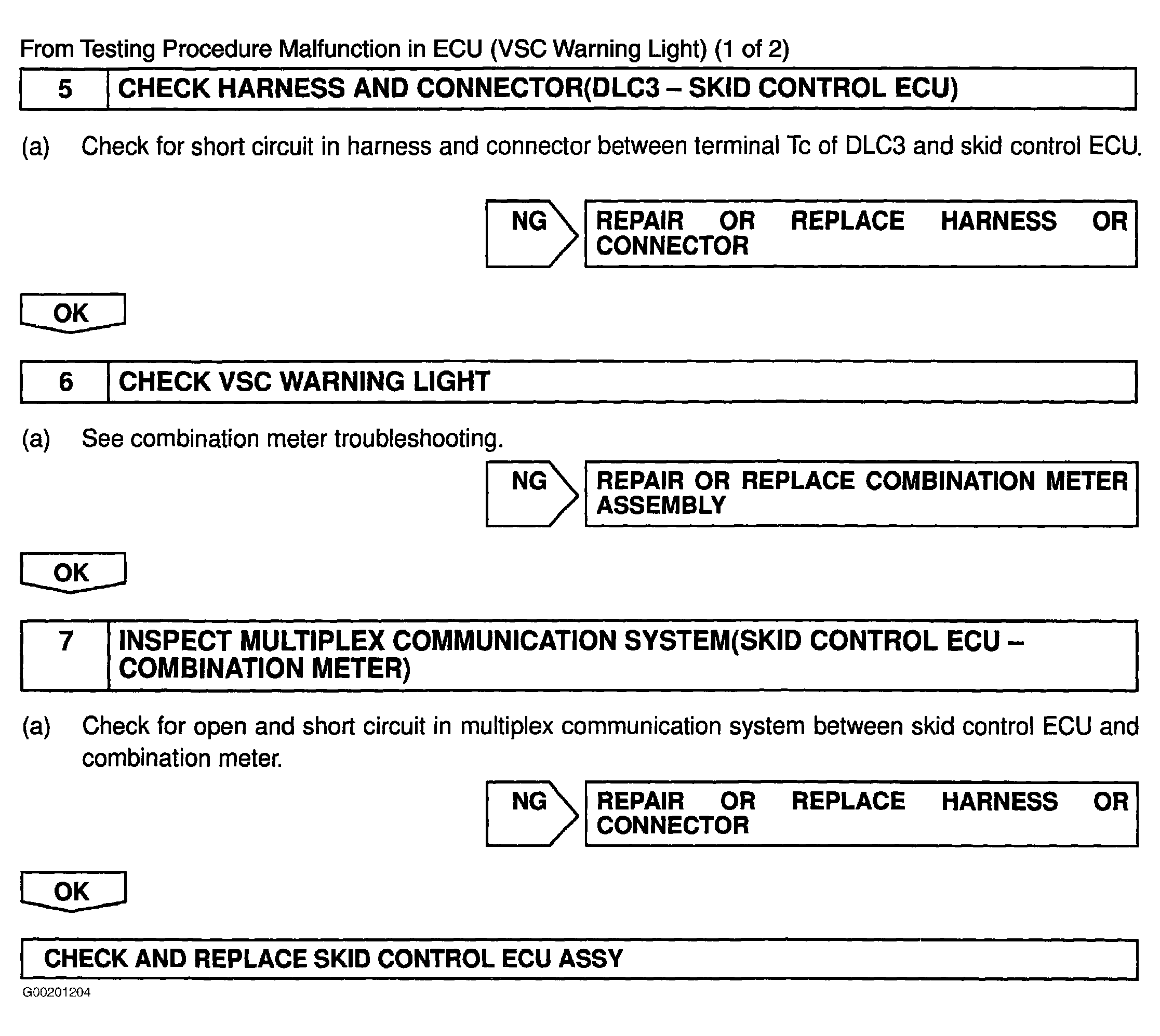

Fig 1: Testing Procedure Malfunction In ECU (VSC Warning Light - 1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Testing Procedure Malfunction In ECU (VSC Warning Light - 2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
