Test L: VSC Warning Light Circuit (Does Not Light Up)
›
Testing Procedure
Testing Procedure
For wiring diagram see
Figure
. For testing procedure see
Fig 1
.

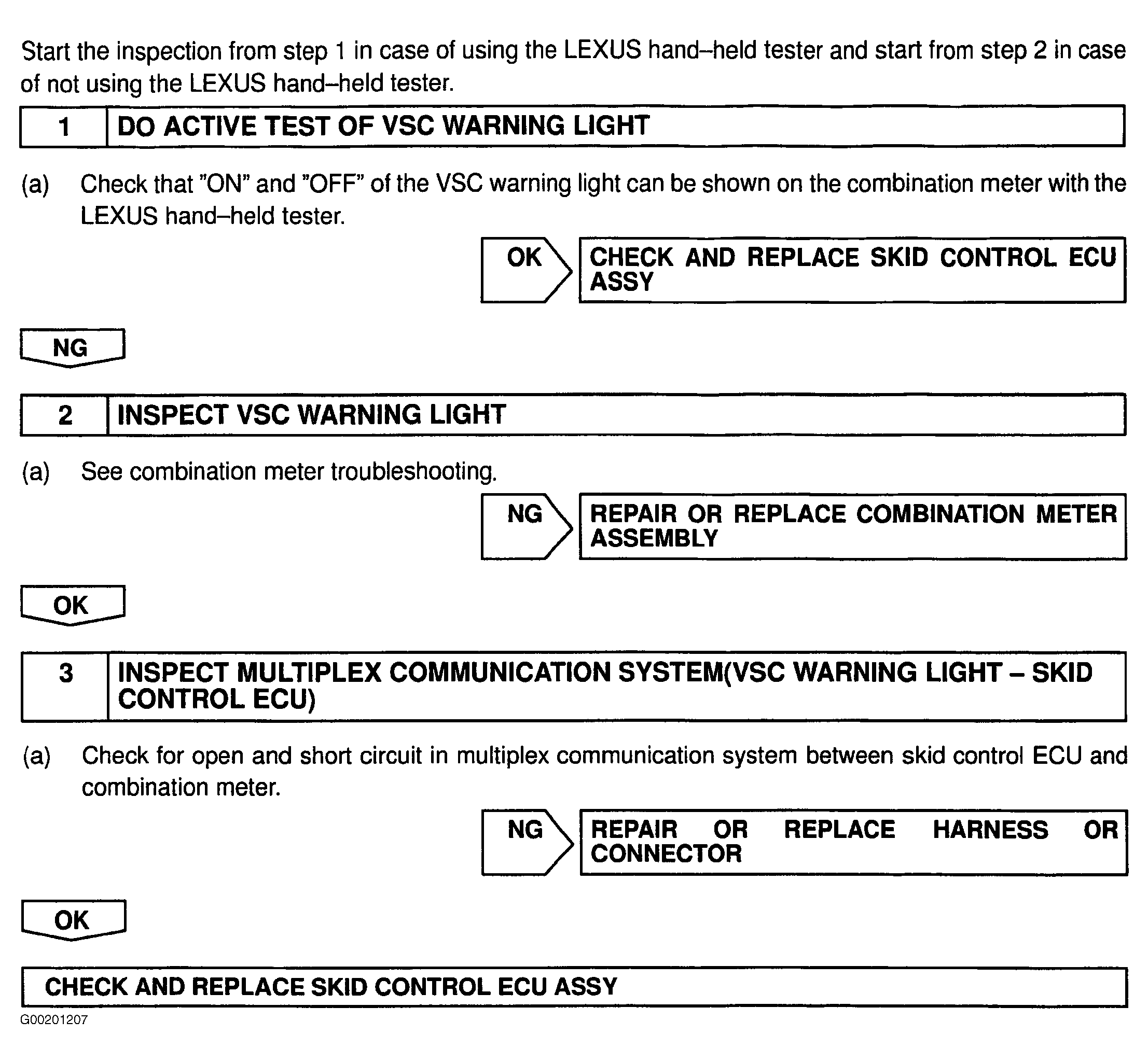

Fig 1: Testing Procedure VSC Warning Light Circuit
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
