Belt Tension

Generator is driven by a serpentine drive belt. Belt tension is maintained by an automatic belt tensioner. No adjustment is necessary. For belt routing, see Fig 1.

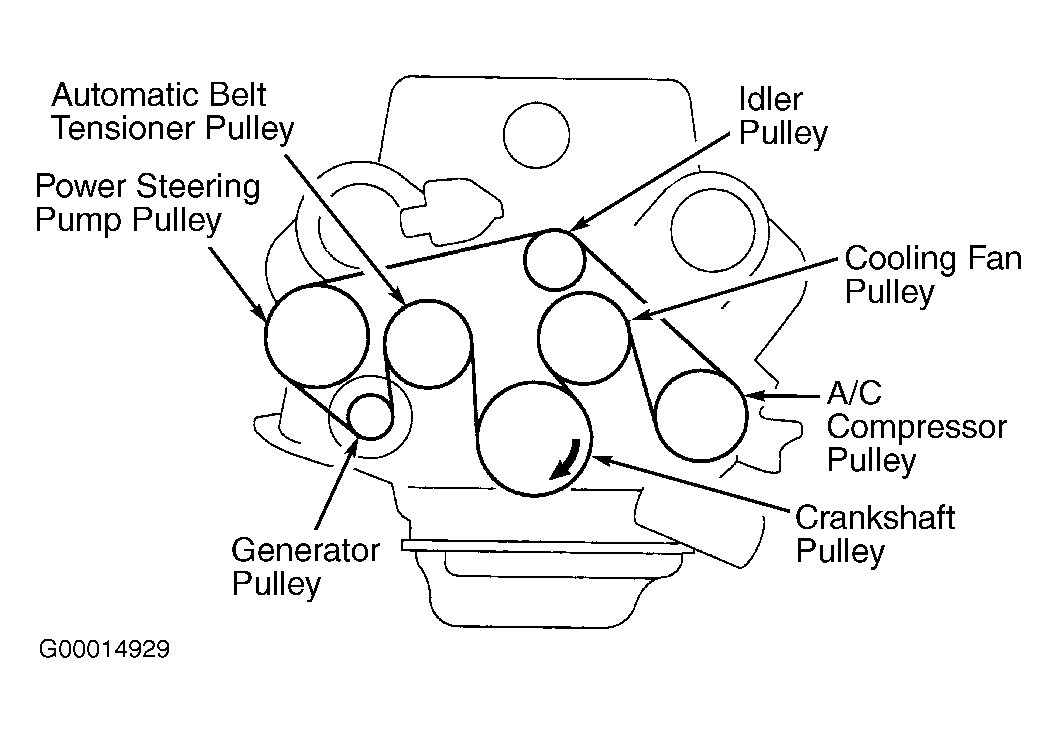

Fig 1: Serpentine Belt (SC430)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
