Home › Lexus › 2003 › SC 430 › Repair and Diagnosis › Engine Mechanical › Mechanical › Engine Exhaust Assembly › Exhaust Manifold › Components

Exhaust Manifold: Components

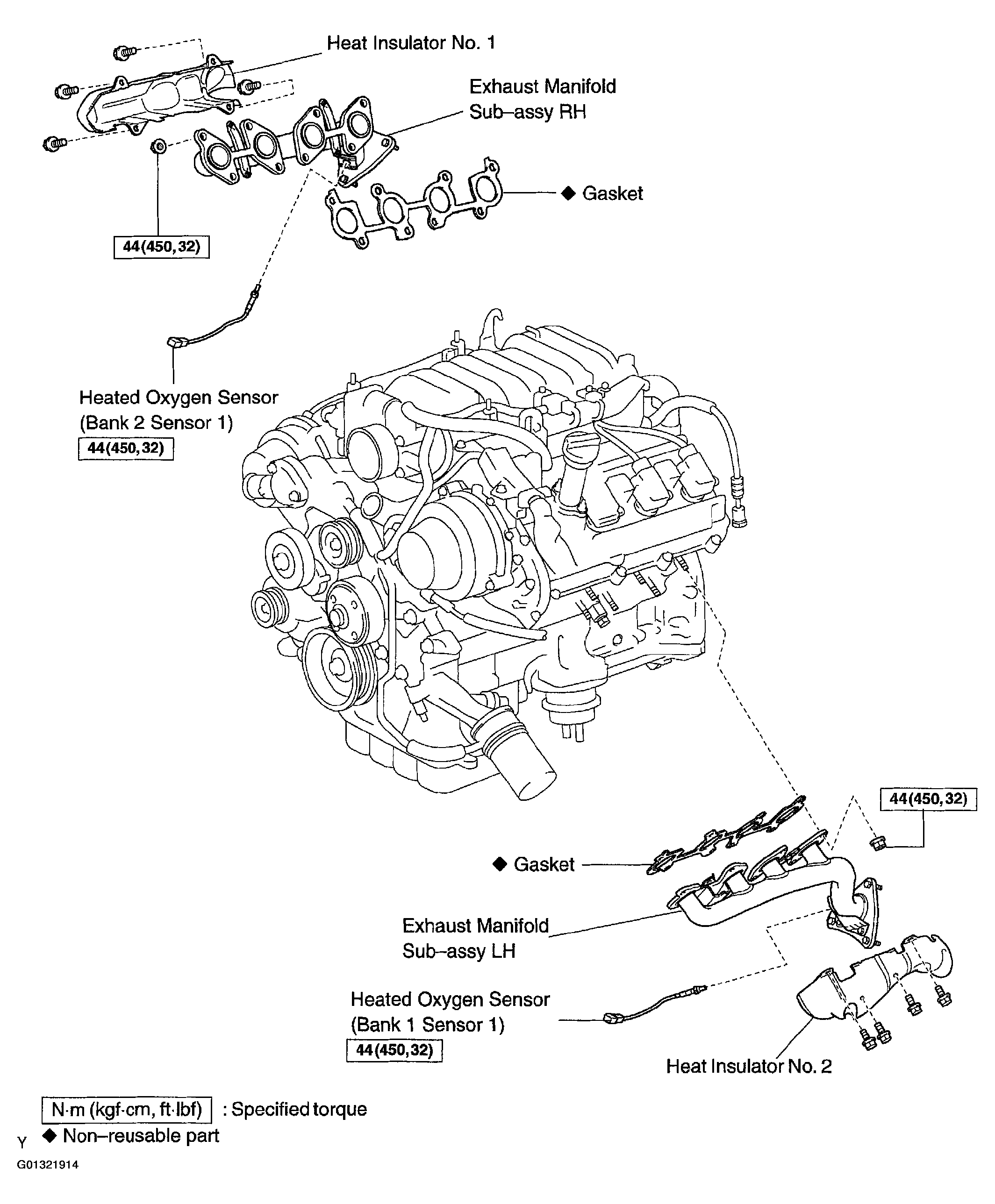

Fig 1: Identifying Exhaust Manifold
G01321914Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
