Circuit Description

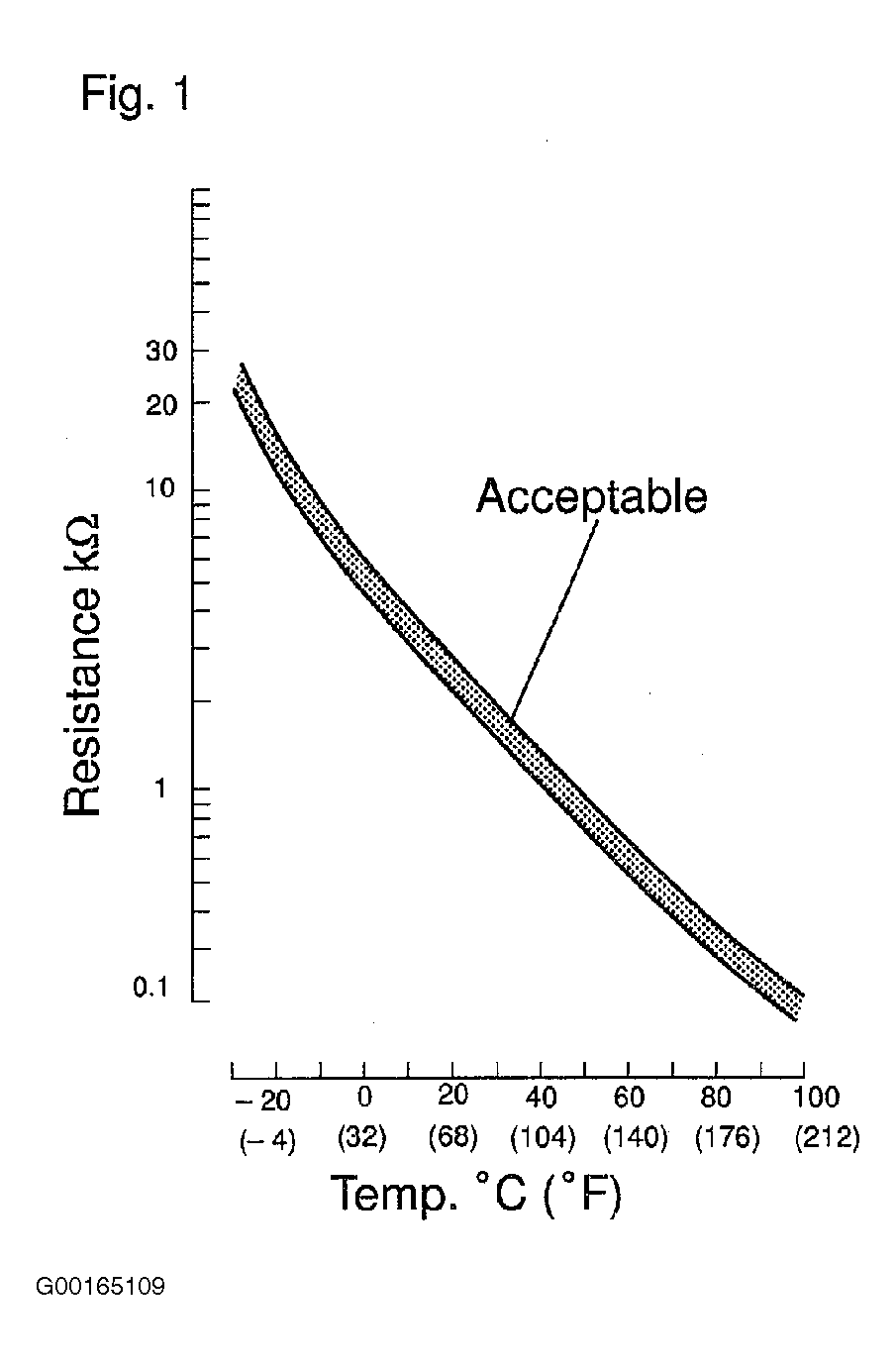

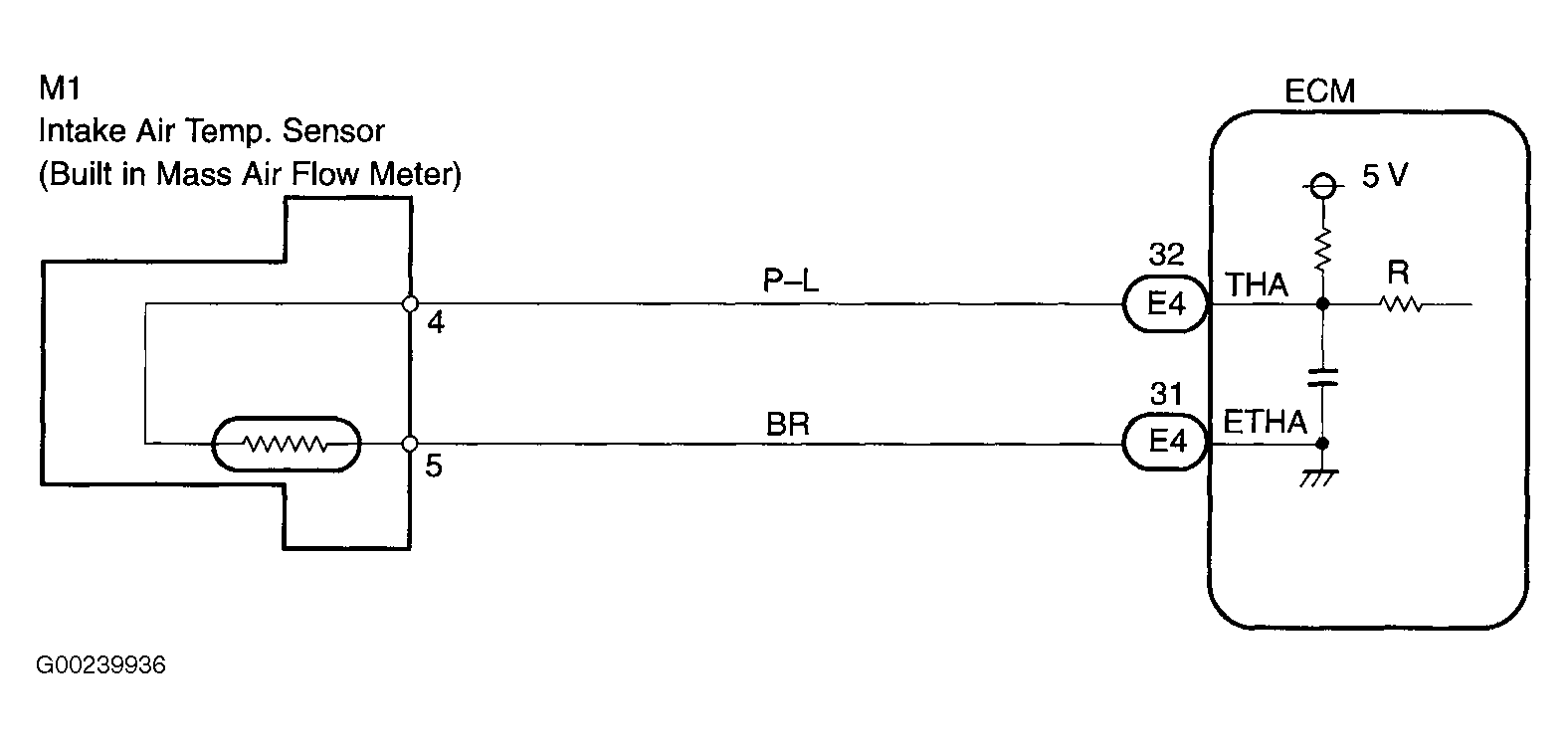

The intake air temperature sensor is built in the mass airflow sensor and senses the intake air temperature. A thermistor built in the sensor changes the resistance value according to the intake air temperature. The lower the intake air temperature is, the greater the thermistor resistance value becomes and the higher the intake air temperature is, the lower the thermistor resistance value becomes. The intake air temperature sensor is connected to the ECM. The 5 volt power source voltage in the ECM is applied to the intake air temperature sensor from terminal THA (THAR) via resistor R. Resistor R and the intake air temperature sensor are connected in series. When the resistance value of the intake air temperature sensor changes in accordance with changes in the intake air temperature, the potential at terminal THA (THAR) also changes. Based on this signal, the ECM increases the fuel injection volume to improve the driveability during cold engine operation. See Fig 1 and Fig 2 . DTCs will set if an open or short in intake air temperature sensor circuits is detected for .5 seconds. Possible causes are:
- Open or short in IAT sensor circuit.
- Faulty IAT sensor.
- Faulty ECM.
