Terminals Of Ecu

WARNING: This page is about a different car, the 2004 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

MULTI-DISPLAY ASSY:

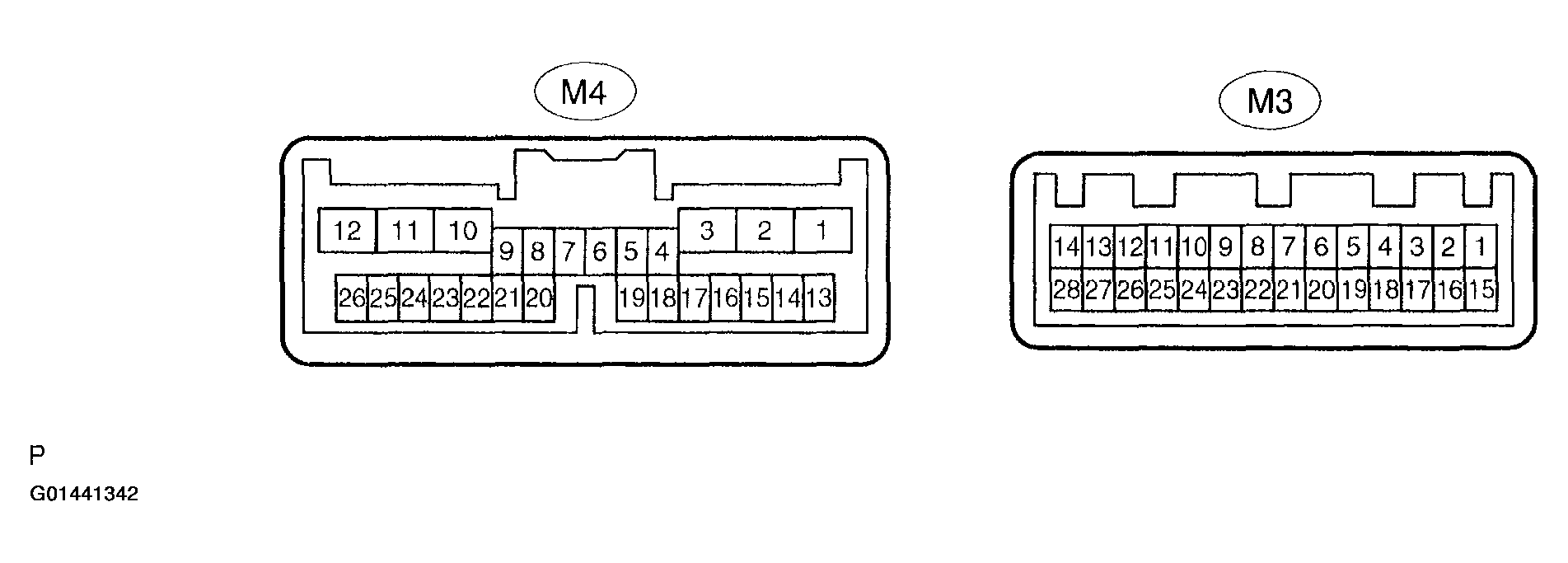

Fig 1: Identifying Multi-Display Assy ECU Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

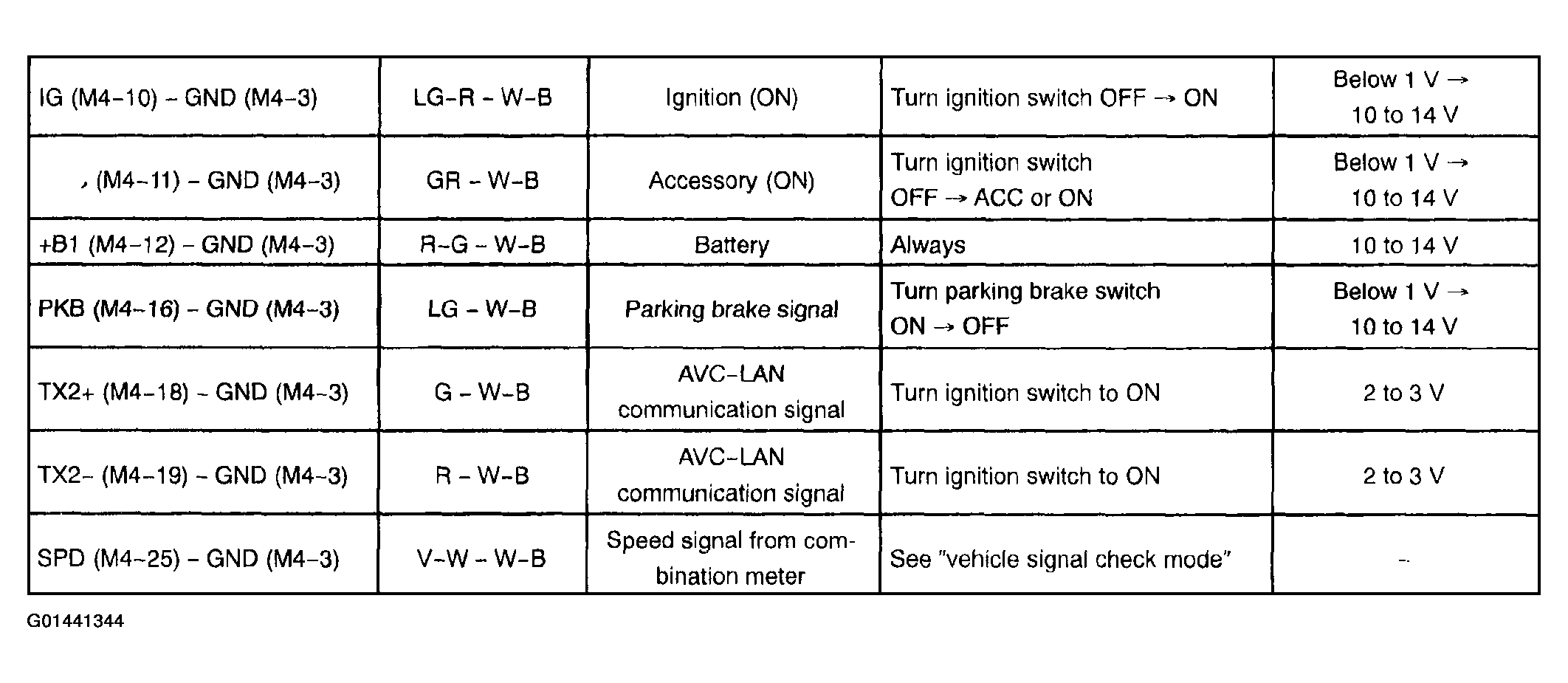

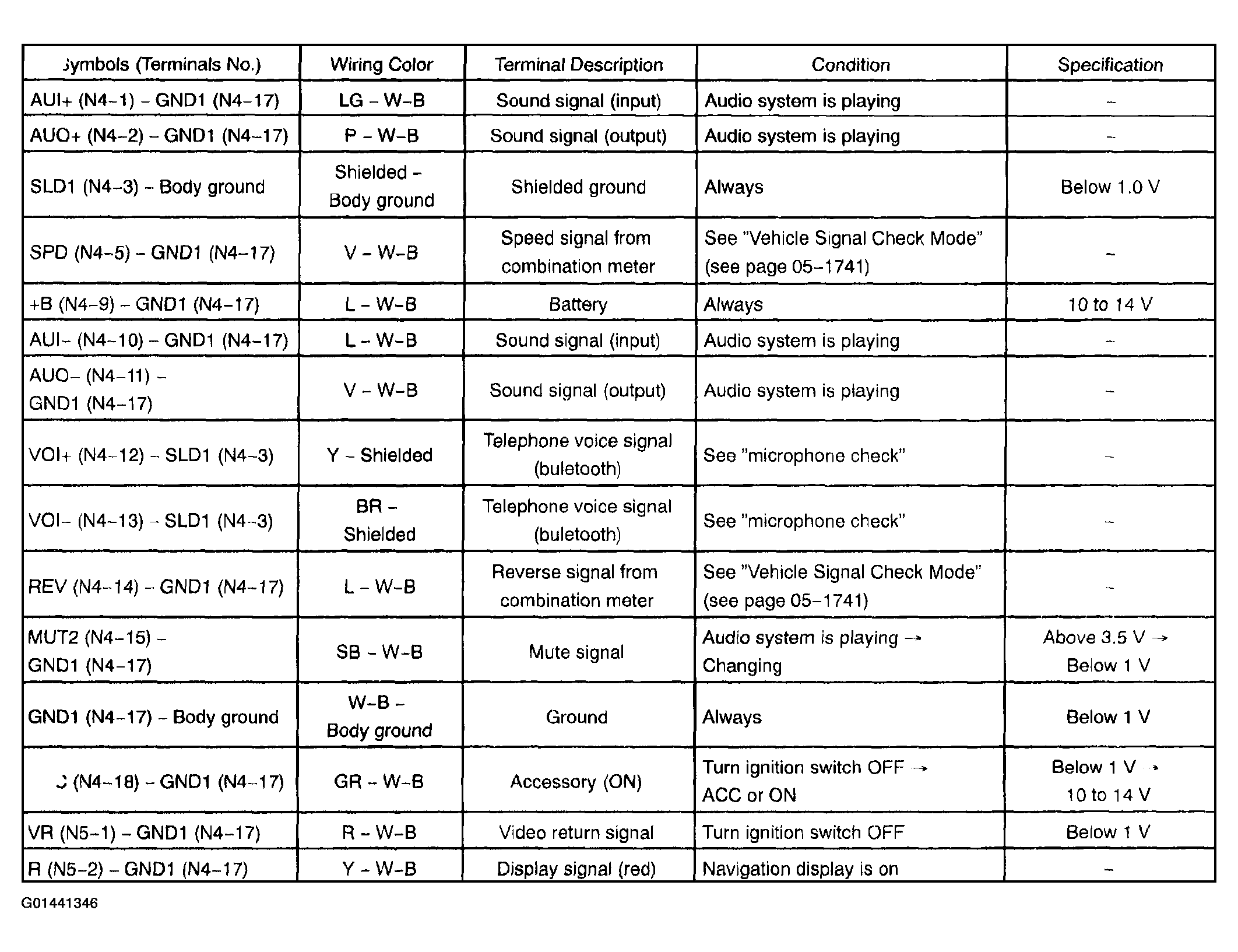

Fig 2: Multi-Display Assy ECU Terminals Reference Chart (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

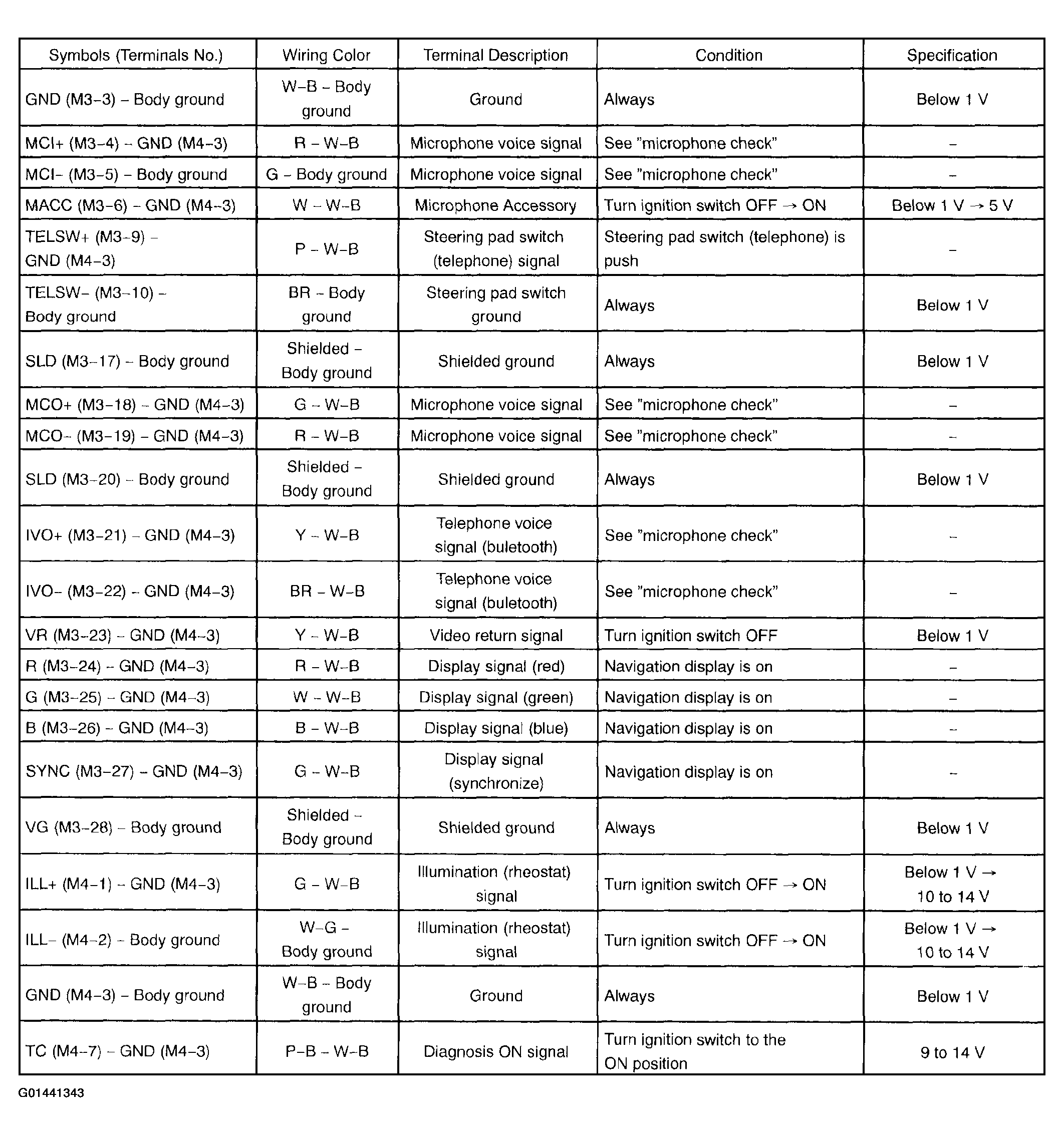

Fig 3: Multi-Display Assy ECU Terminals Reference Chart (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NAVIGATION ECU:

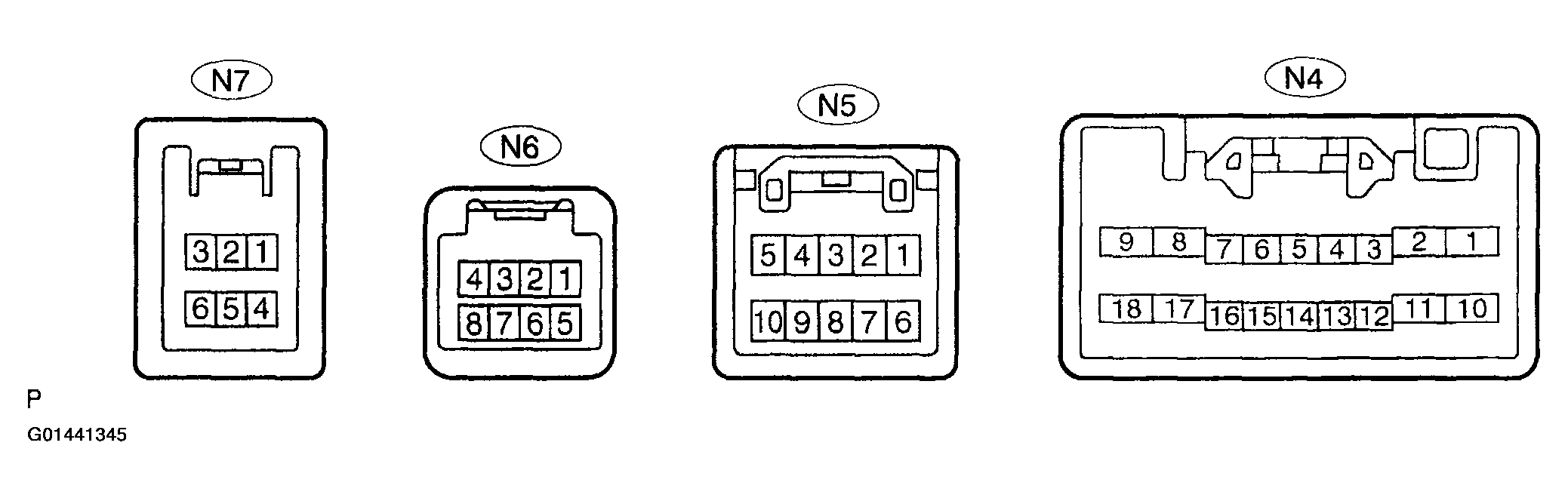

Fig 4: Identifying Navigation ECU Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

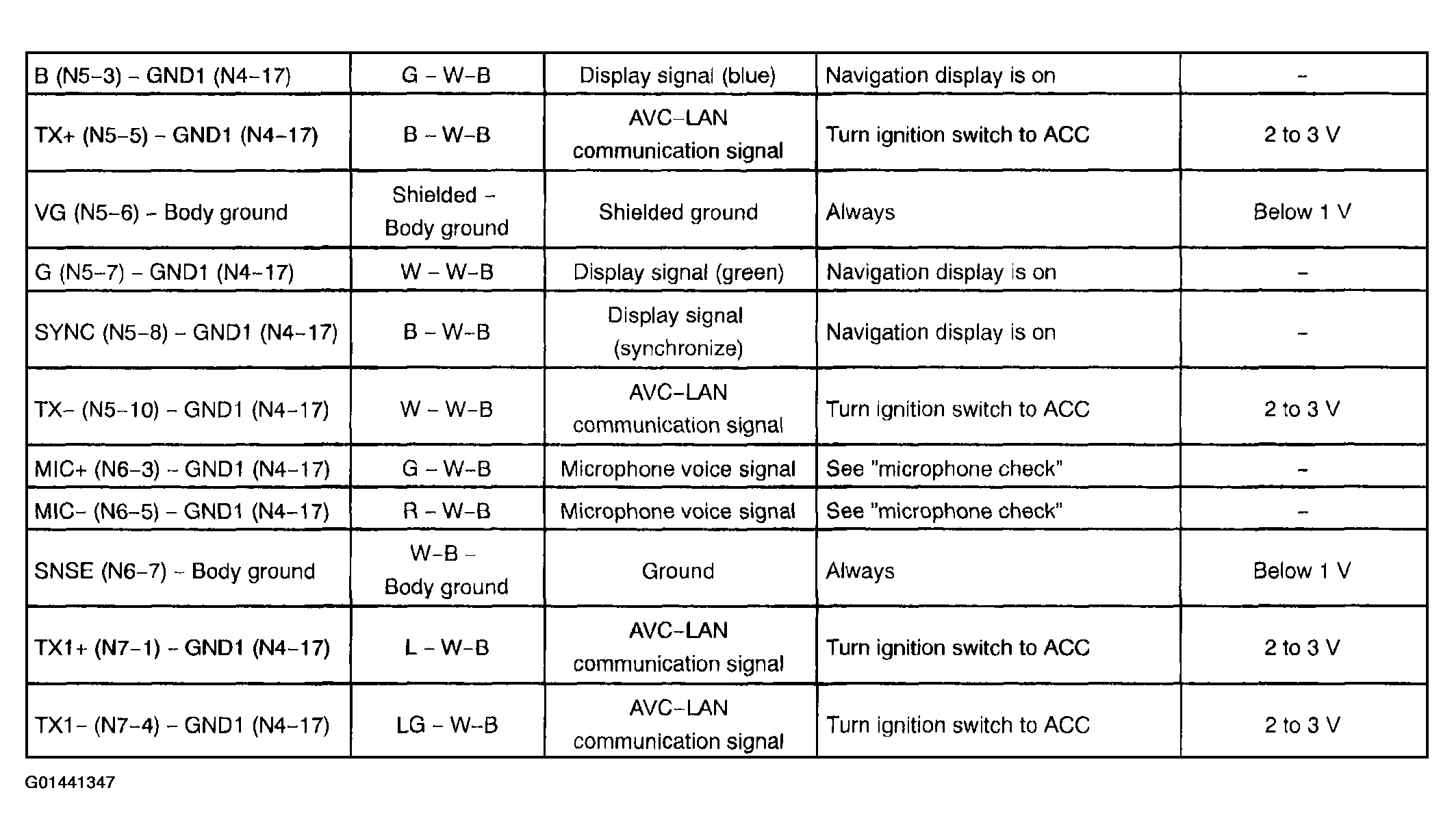

Fig 5: Navigation ECU Terminals Reference Chart (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Navigation ECU Terminals Reference Chart (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
RADIO RECEIVER ASSY:

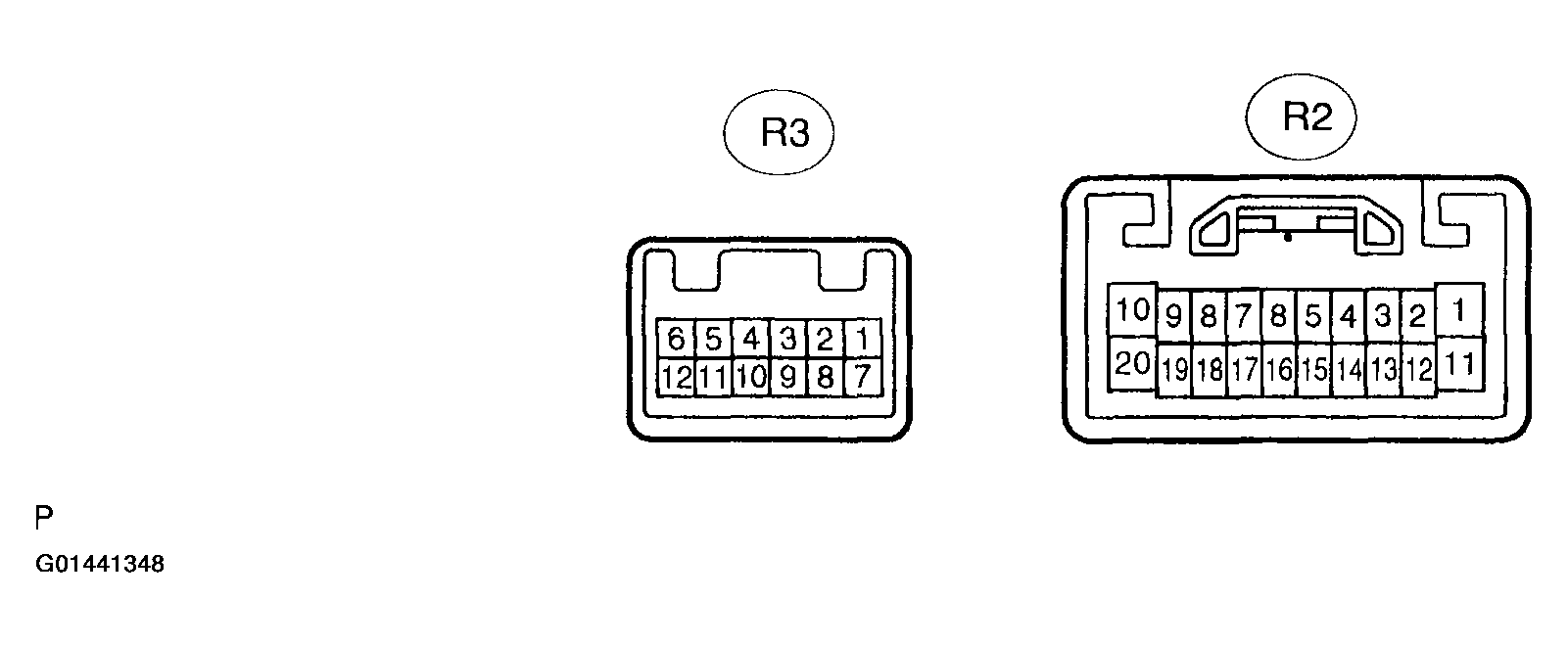

Fig 7: Identifying Radio Receiver Assy ECU Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

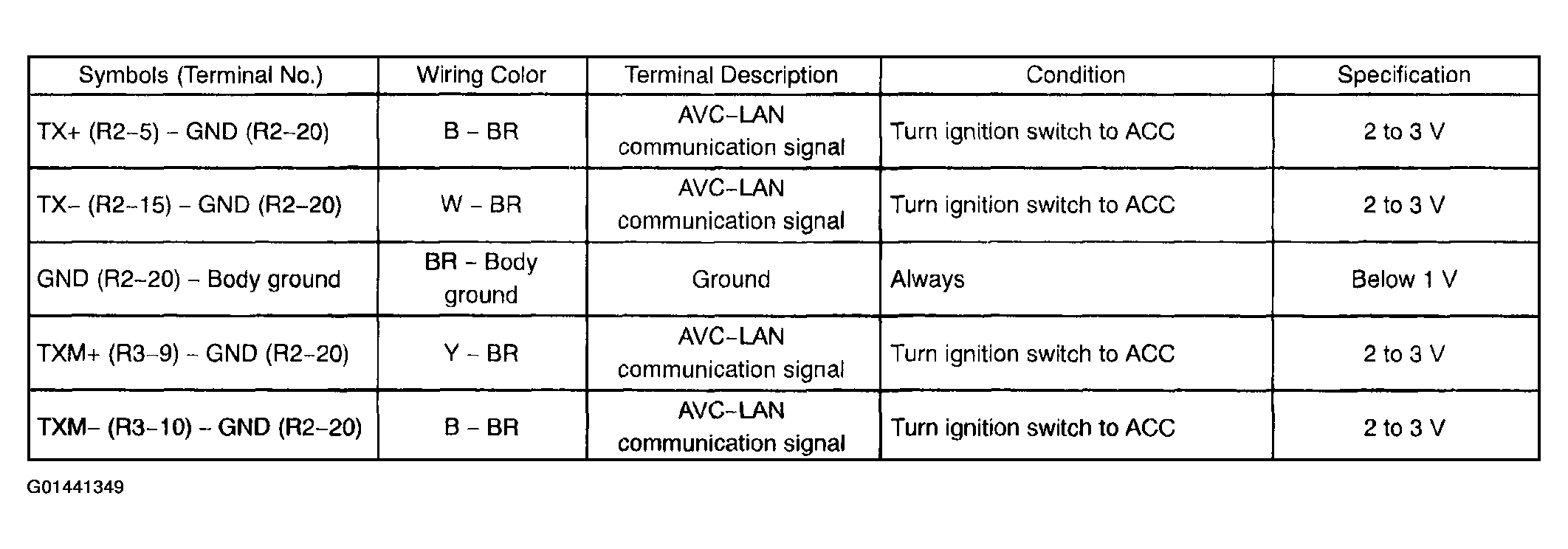

Fig 8: Radio Receiver Assy ECU Terminals Reference Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
STEREO COMPONENT AMPLIFIER ASSY:

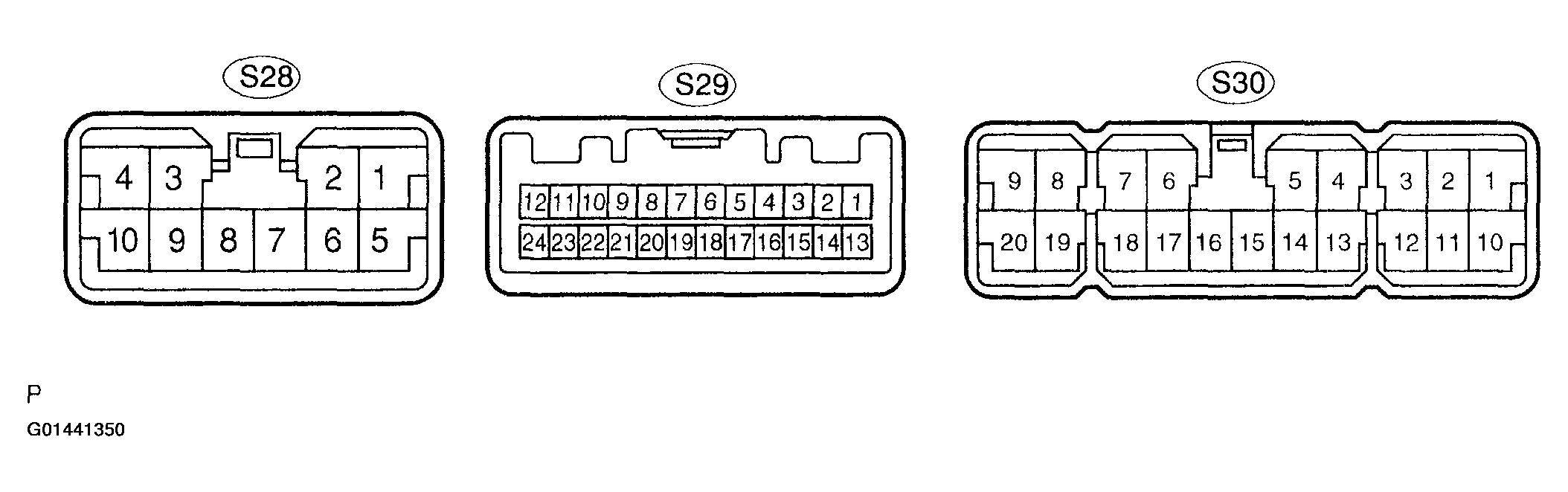

Fig 9: Identifying Stereo Component Amplifier Assy ECU Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

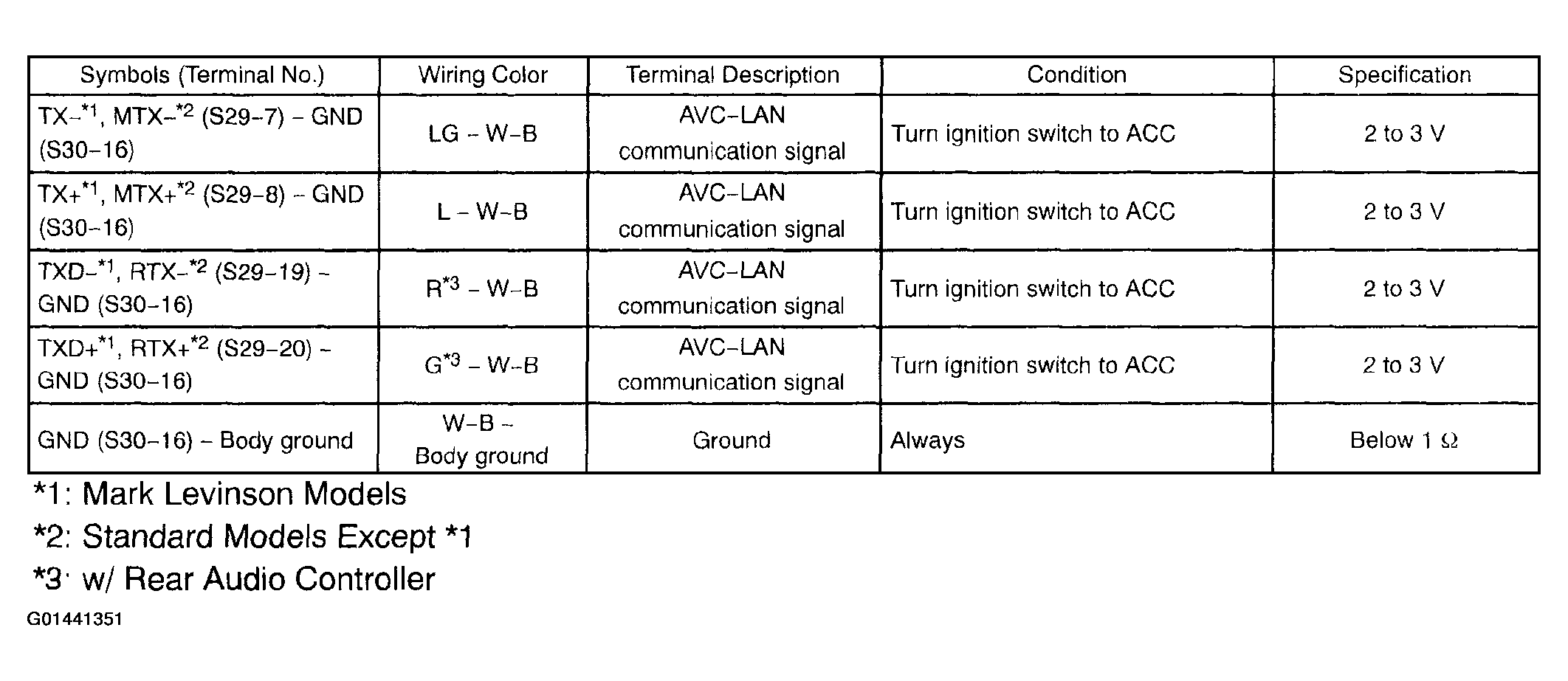

Fig 10: Stereo Component Amplifier Assy ECU Terminals Reference Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
STEREO COMPONENT TUNER:

Fig 11: Identifying Stereo Component Tuner ECU Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

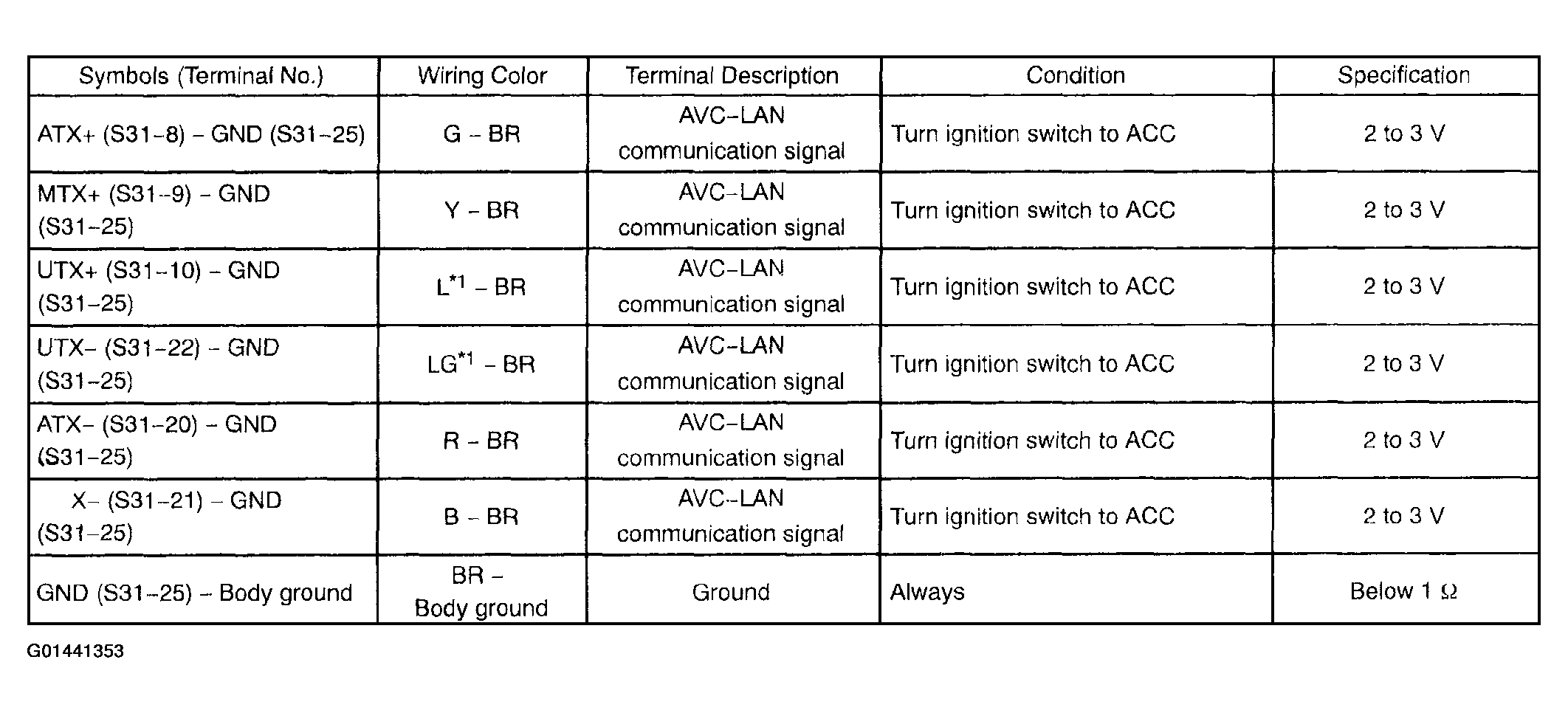

Fig 12: Stereo Component Tuner ECU Terminals Reference Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1: w/ LEXUS Navigation System
AUDIO AND REAR A/C CONTROL SW:

Fig 13: Identifying Audio And Rear A/C Control SW ECU Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 14: Audio And Rear A/C Control SW ECU Terminals Reference Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
TELEVISION CAMERA ECU:

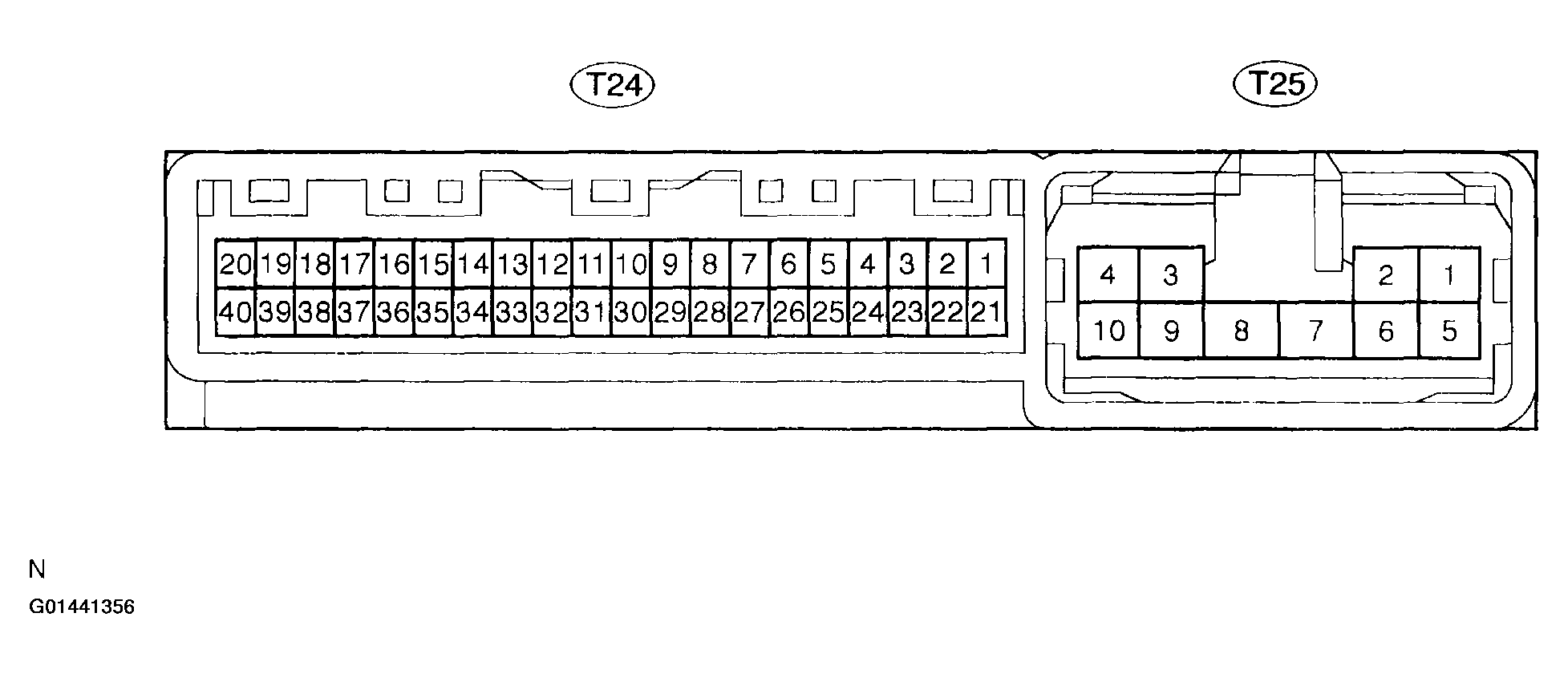

Fig 15: Identifying Television Camera ECU Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

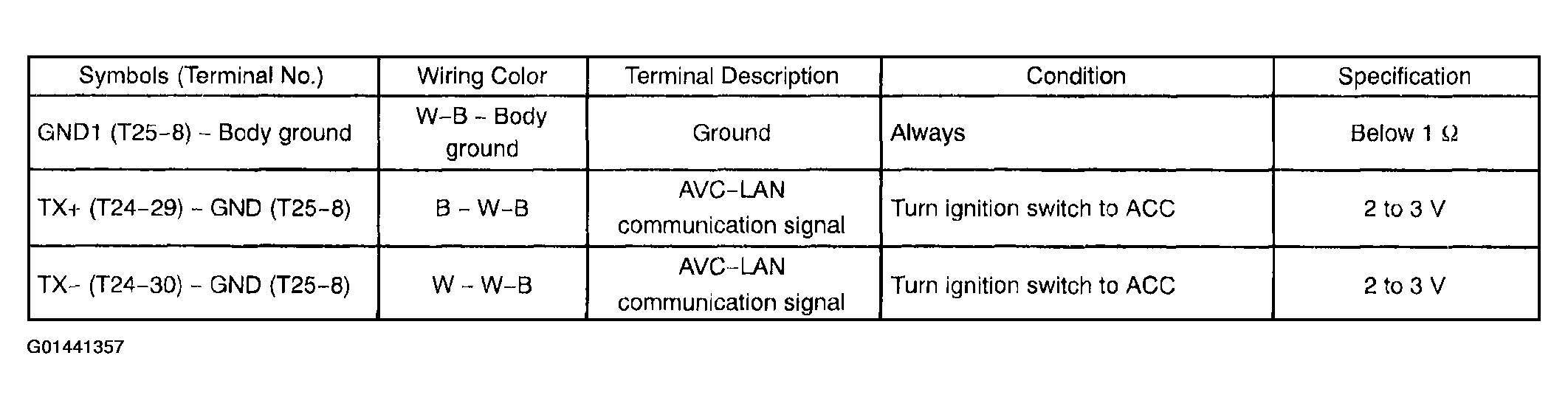

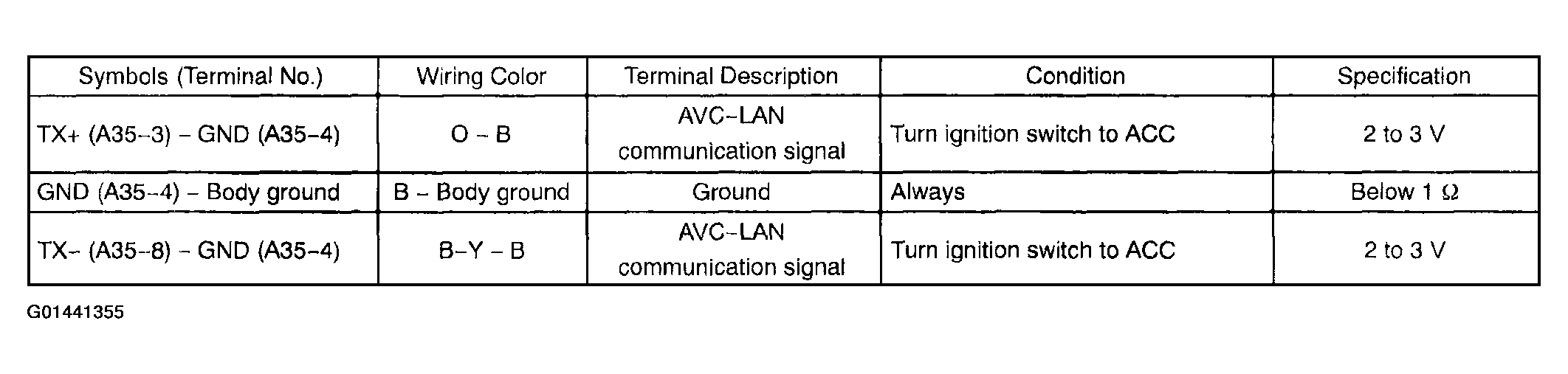

Fig 16: Television Camera ECU Terminals Reference Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
GATEWAY ECU:

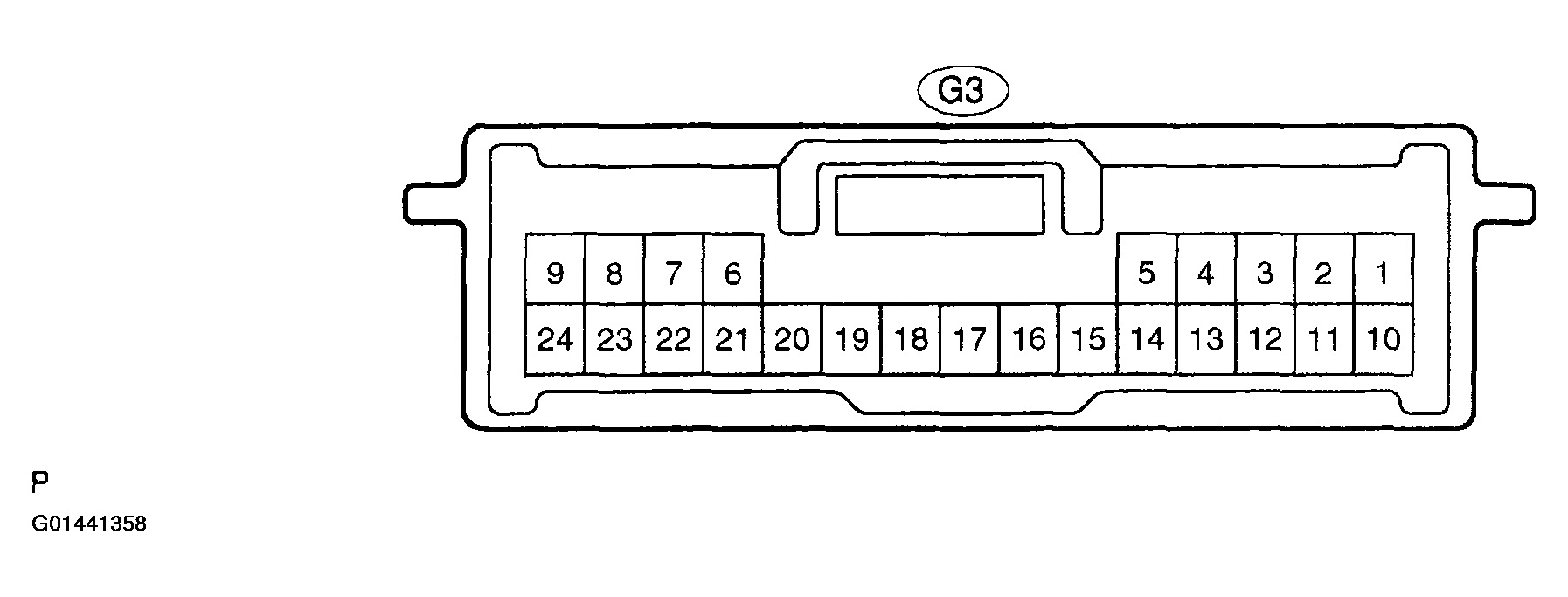

Fig 17: Identifying Gateway ECU Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

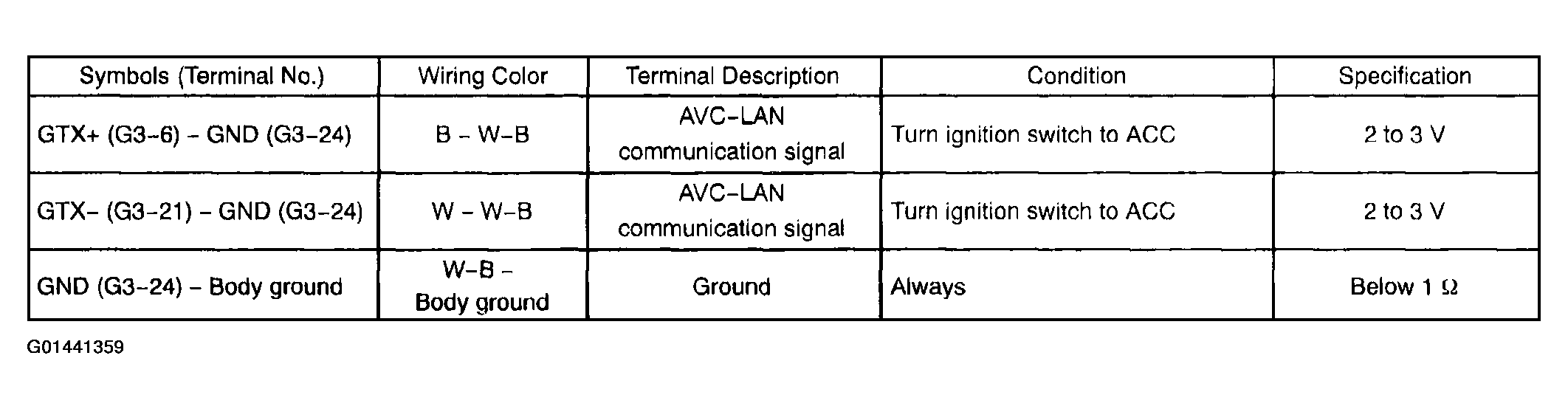

Fig 18: Gateway ECU Terminals Reference Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
