Radiator ASSY: Components

WARNING: This page is about a different car, the 2004 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

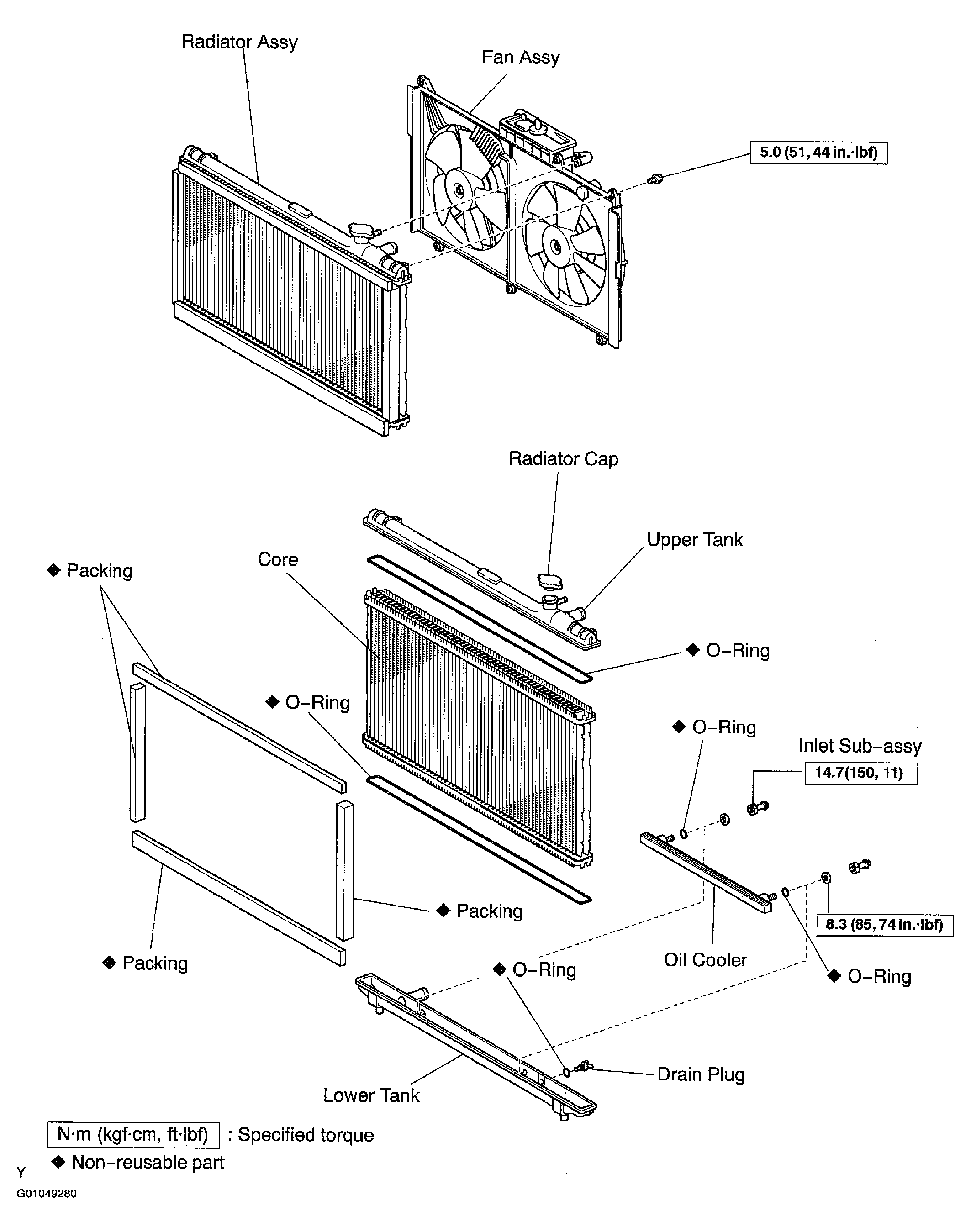

Fig 1: Exploded View Of Radiator Components(1 of 2)
