Floor Shift ASSY: Components

WARNING: This page is about a different car, the 2004 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

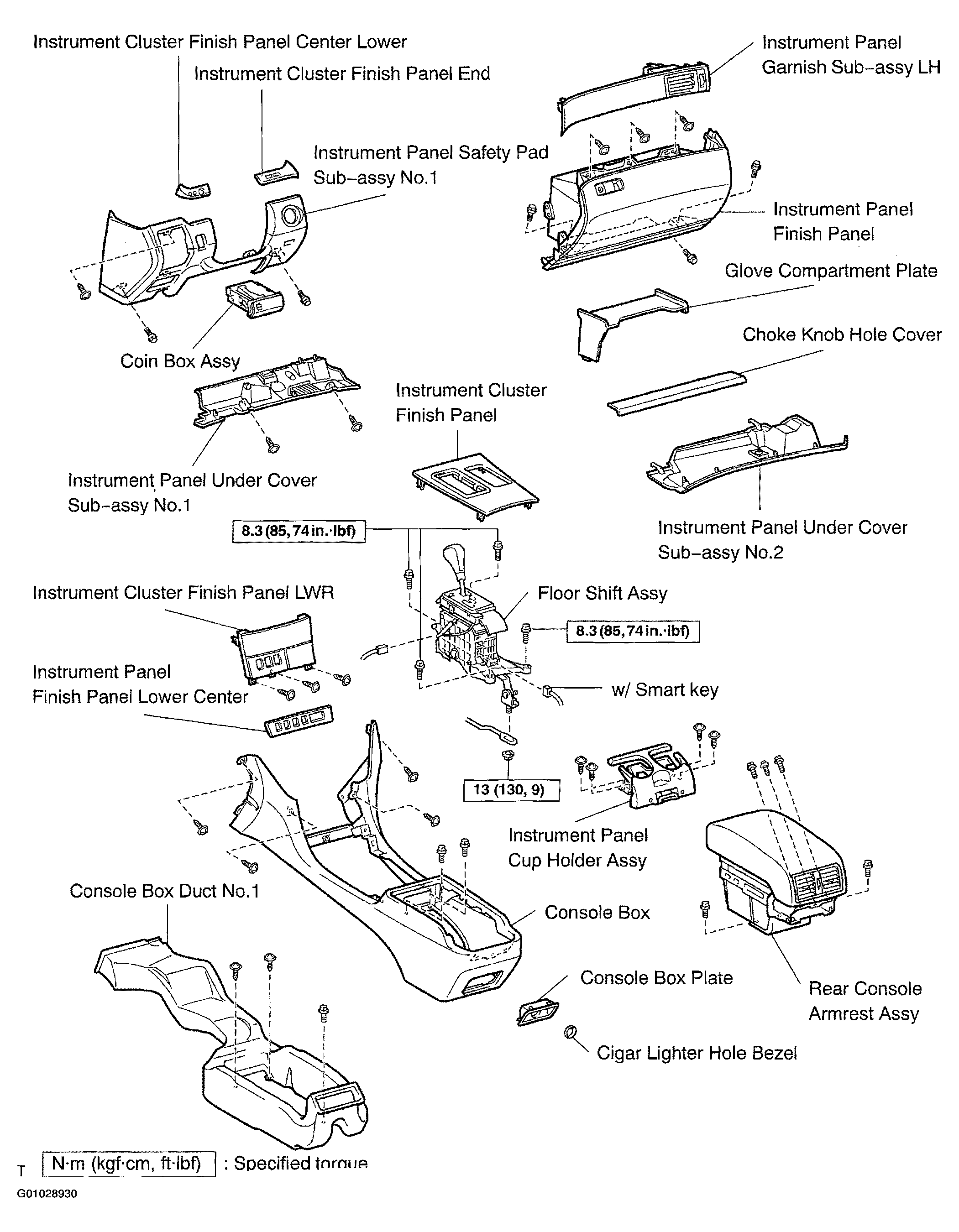

Fig 1: Exploded View Of Floor Shift Assy Components (1 Of 3)
G01028930Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

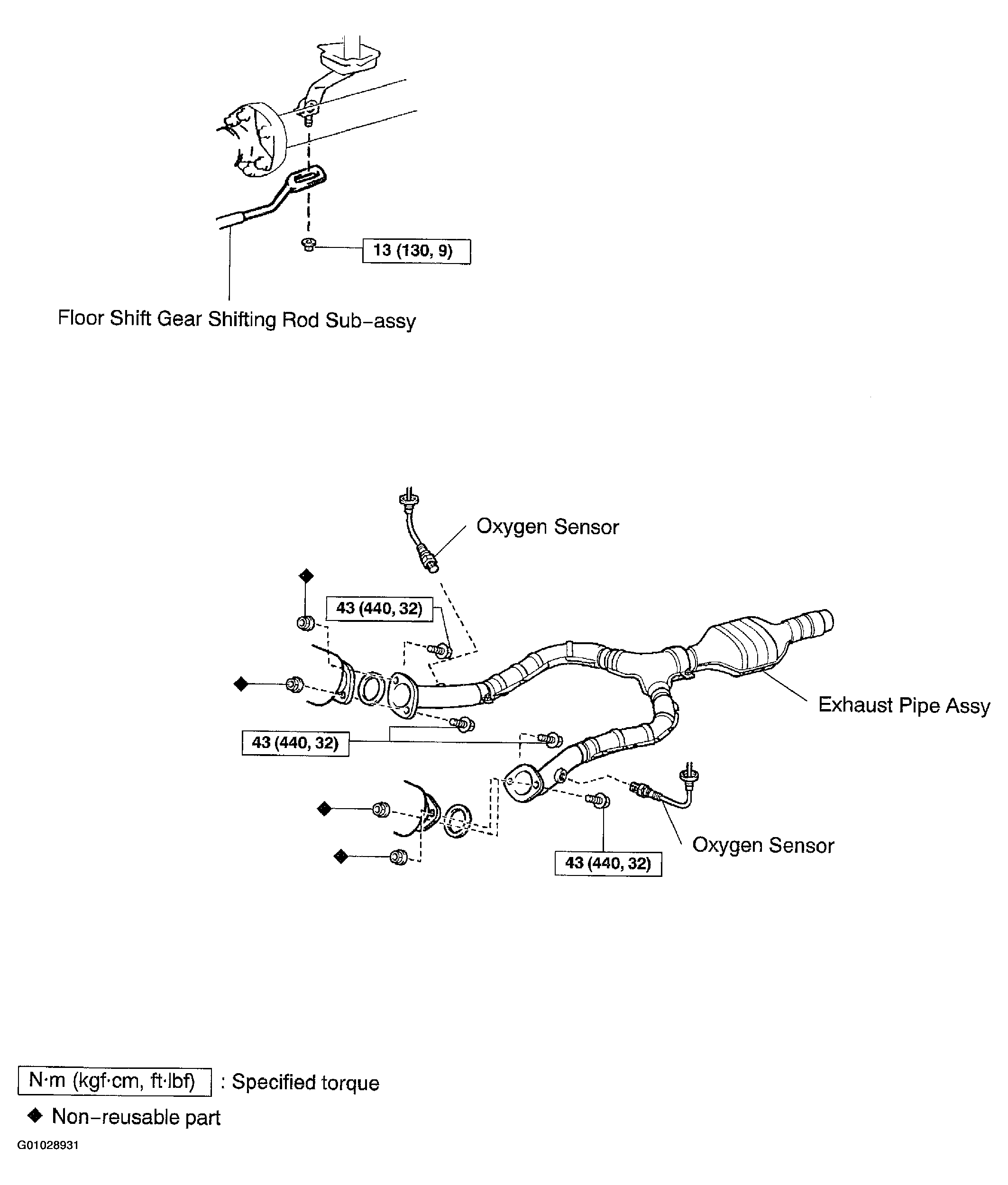

Fig 2: Exploded View Of Floor Shift Assy Components (2 Of 3)
G01028931Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

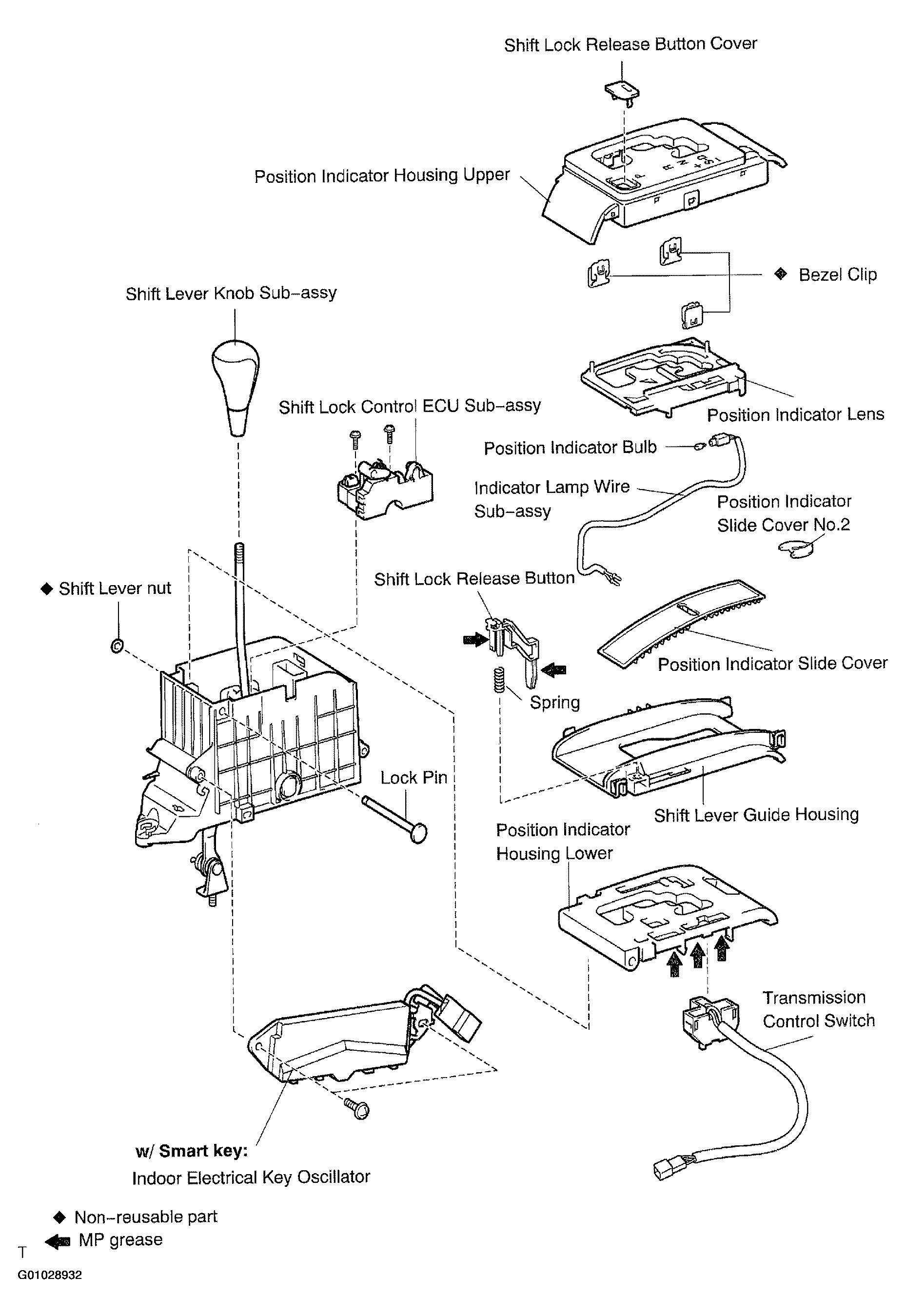

Fig 3: Exploded View Of Floor Shift Assy Components (3 Of 3)
G01028932Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
