Problem Symptoms Table

WARNING: This page is about a different car, the 2004 Lexus SC 430. However, it is still accessible from the selected car via links, so may be relevant.

HEADLIGHT AND TAILLIGHT SYSTEM:

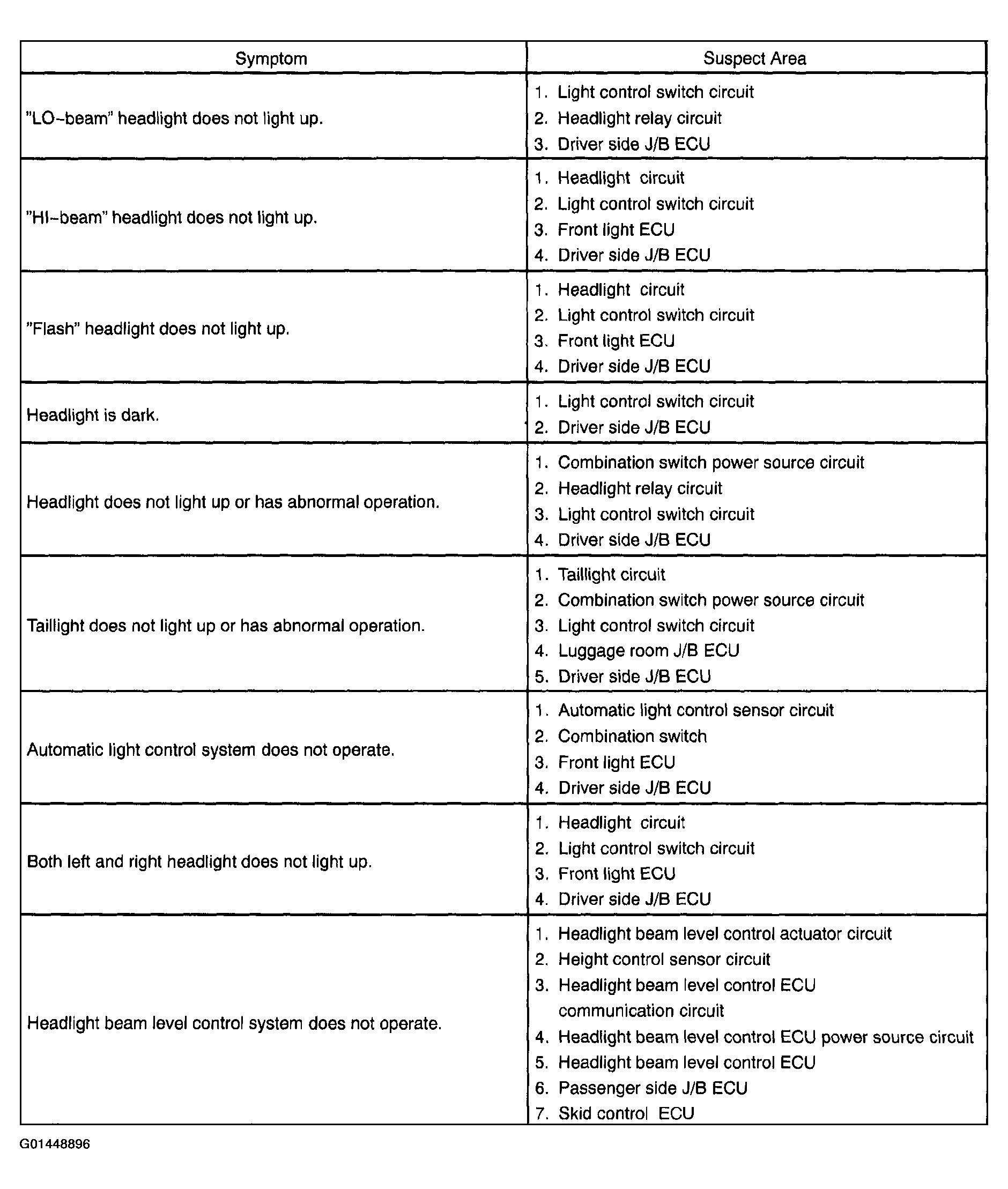

Fig 1: Headlight & Taillight Troubleshooting Table

G01448896

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

STOP LIGHT SYSTEM:

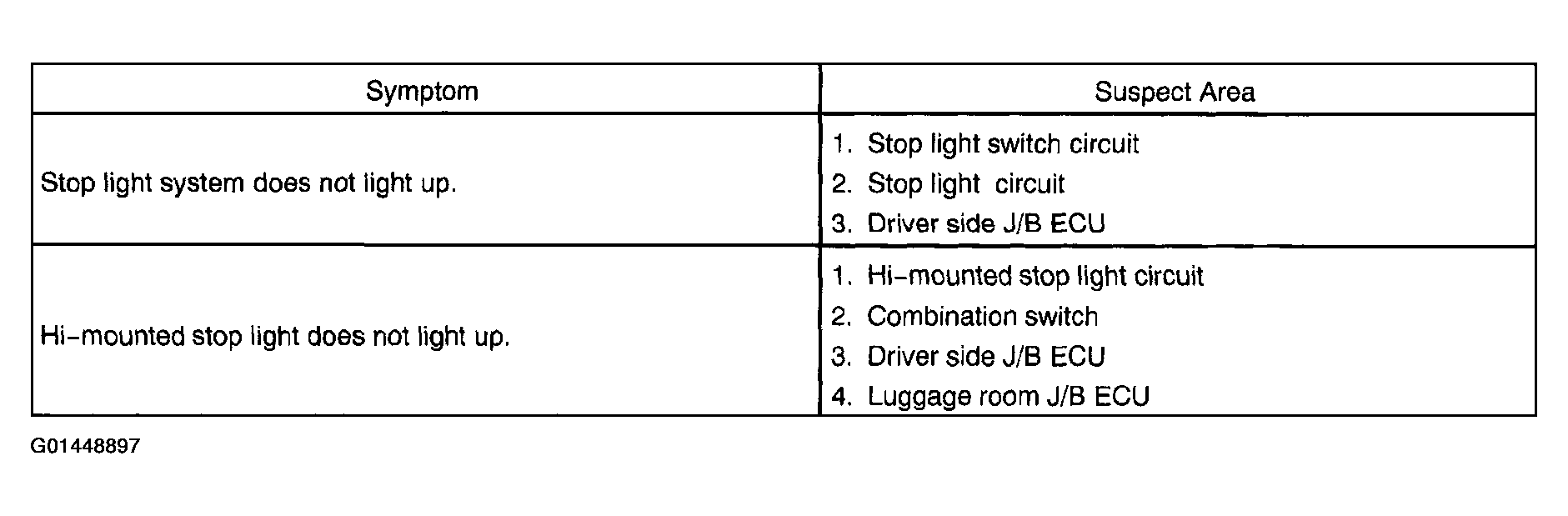

Fig 2: Stop Light Troubleshooting Table

G01448897

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

FOG LIGHT SYSTEM:

Fig 3: Fog Light System Troubleshooting Table

G01448898

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TURN SIGNAL LIGHT SYSTEM:

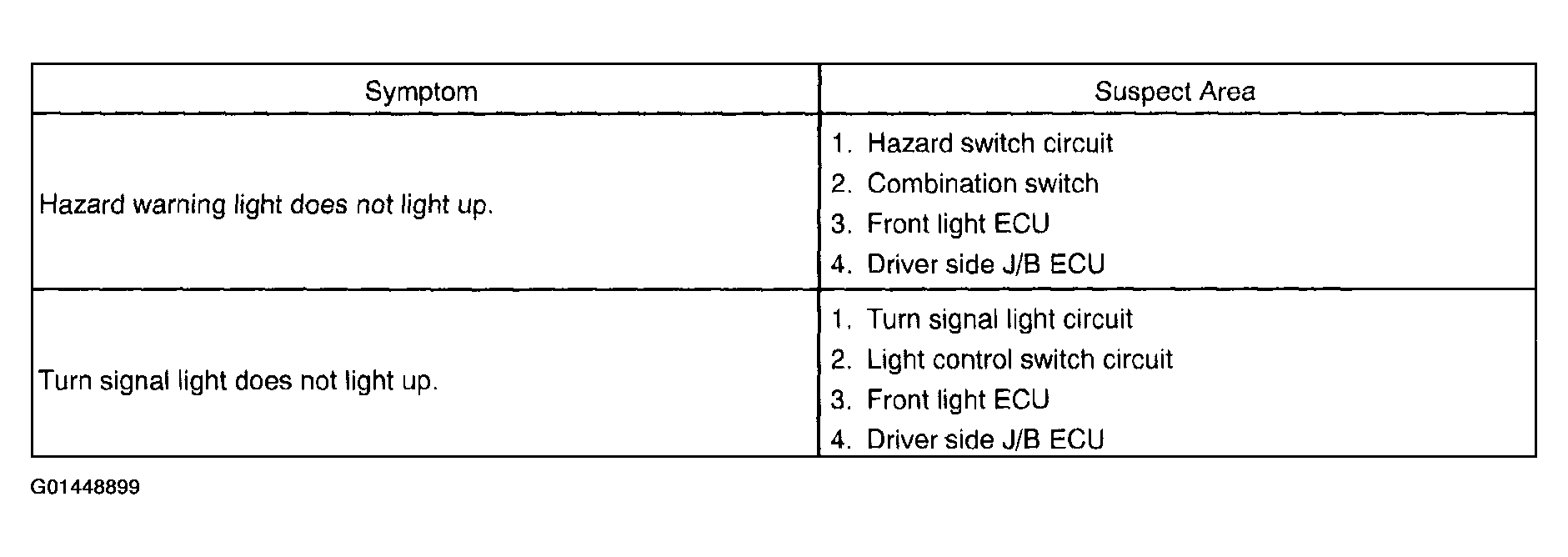

Fig 4: Turn Signal Light System Troubleshooting Table

G01448899

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ILLUMINATION LIGHT SYSTEM:

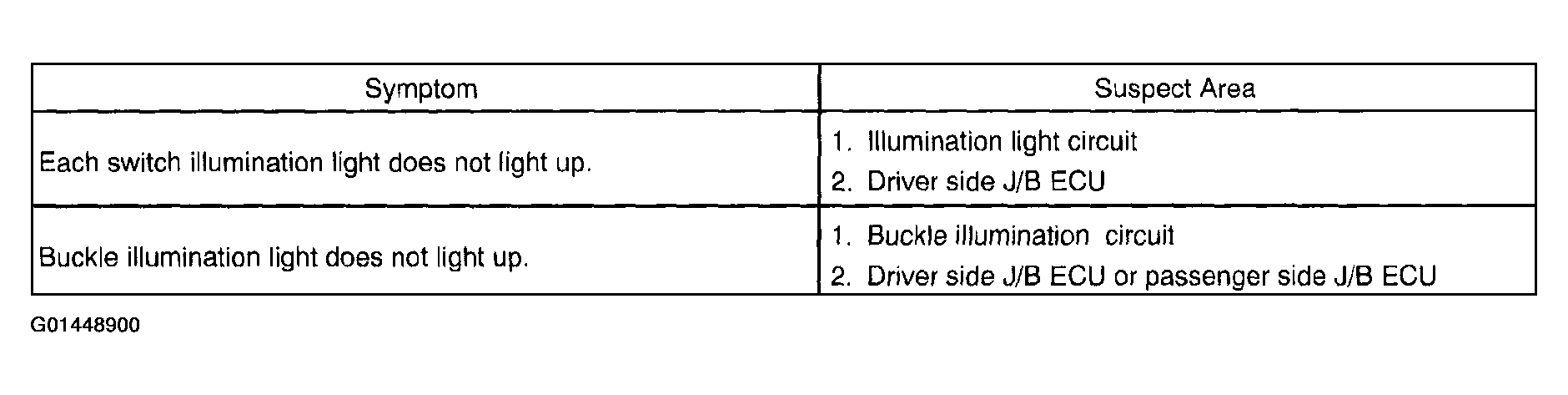

Fig 5: Illumination Light System Troubleshooting Table

G01448900

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INTERIOR LIGHT SYSTEM:

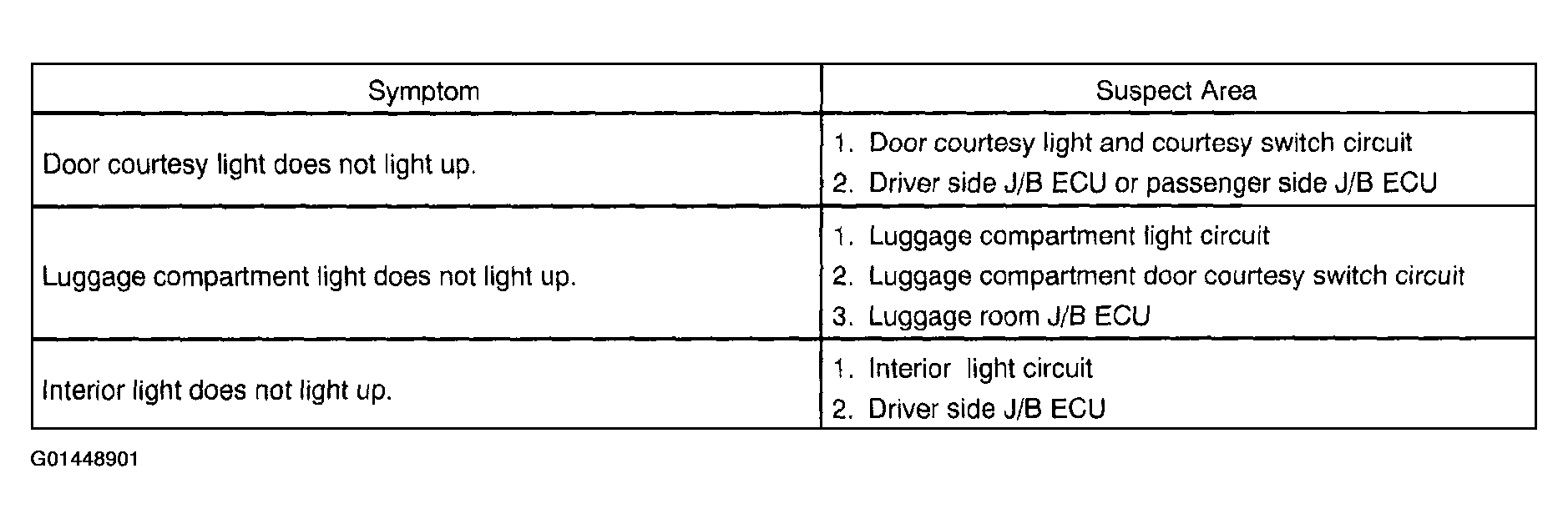

Fig 6: Interior Light System Troubleshooting Table

G01448901

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OTHERS:

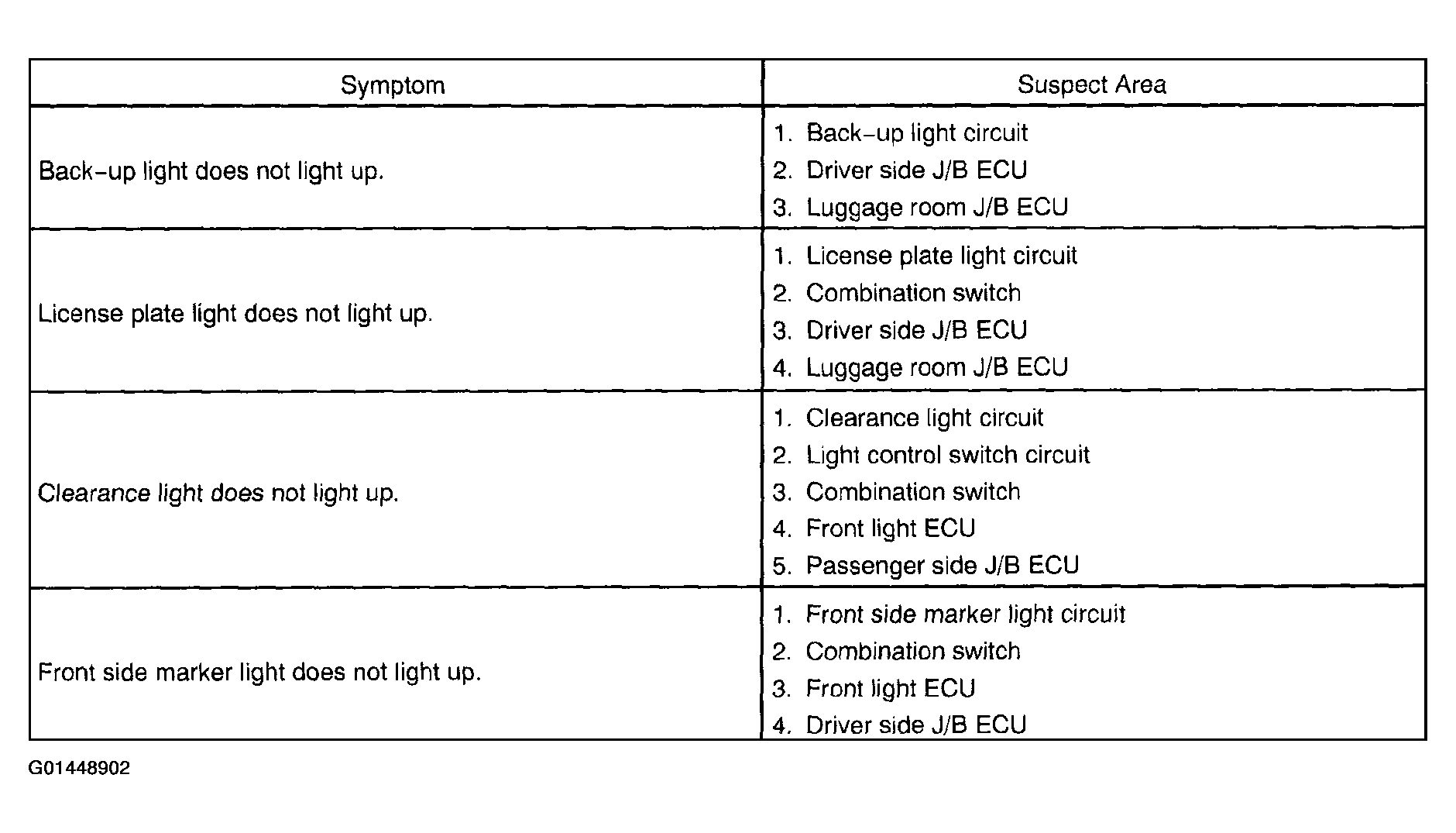

Fig 7: Other Lighting Troubleshooting Table (1 Of 2)

G01448902

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

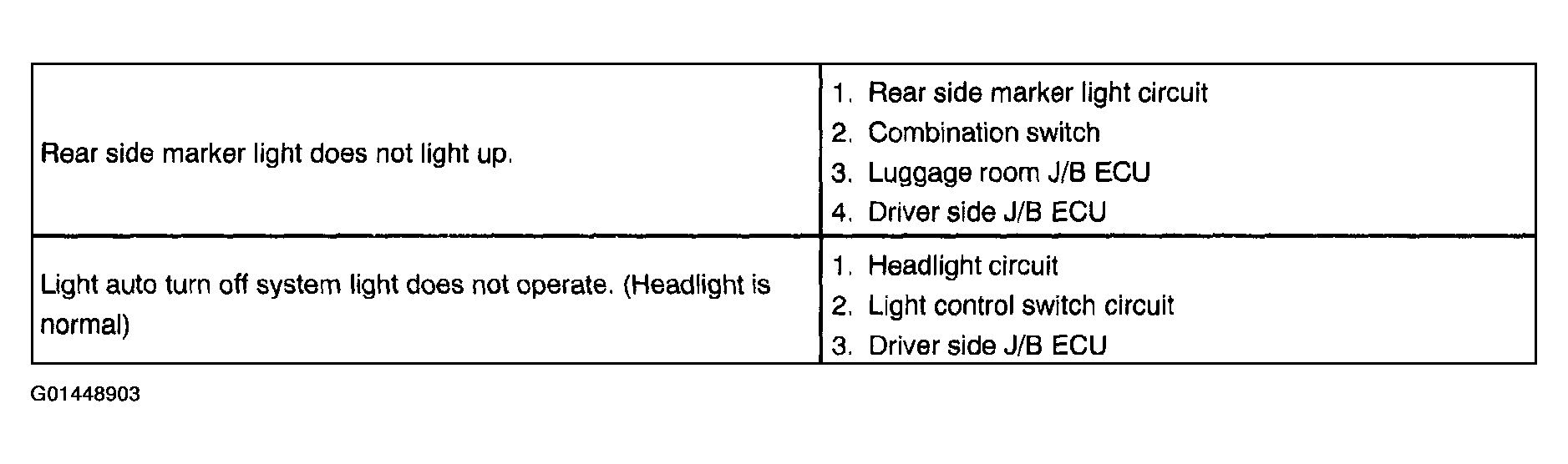

Fig 8: Other Lighting Troubleshooting Table (2 Of 2)

G01448903

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
