Section 280 (Wireless Door Lock Control System - Diagnosis): Pre-Check

WARNING: This page is about a different car, the 2004 Lexus LX 470. However, it is still accessible from the selected car via links, so may be relevant.

Wireless function (Remote control) does not operate.

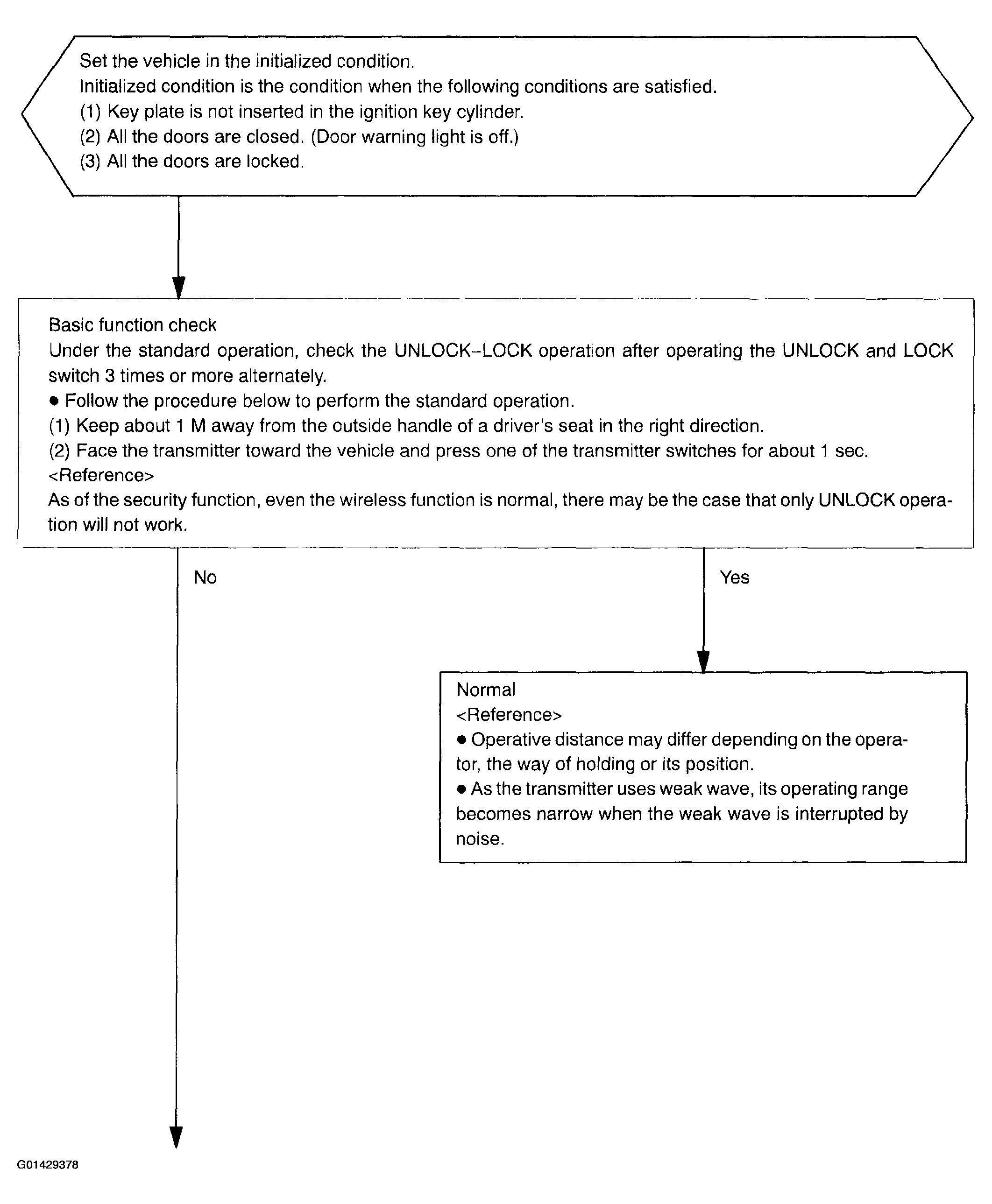

Fig 1: Flow Chart For Symptom Wireless Function (Remote Control) Does Not Operate (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

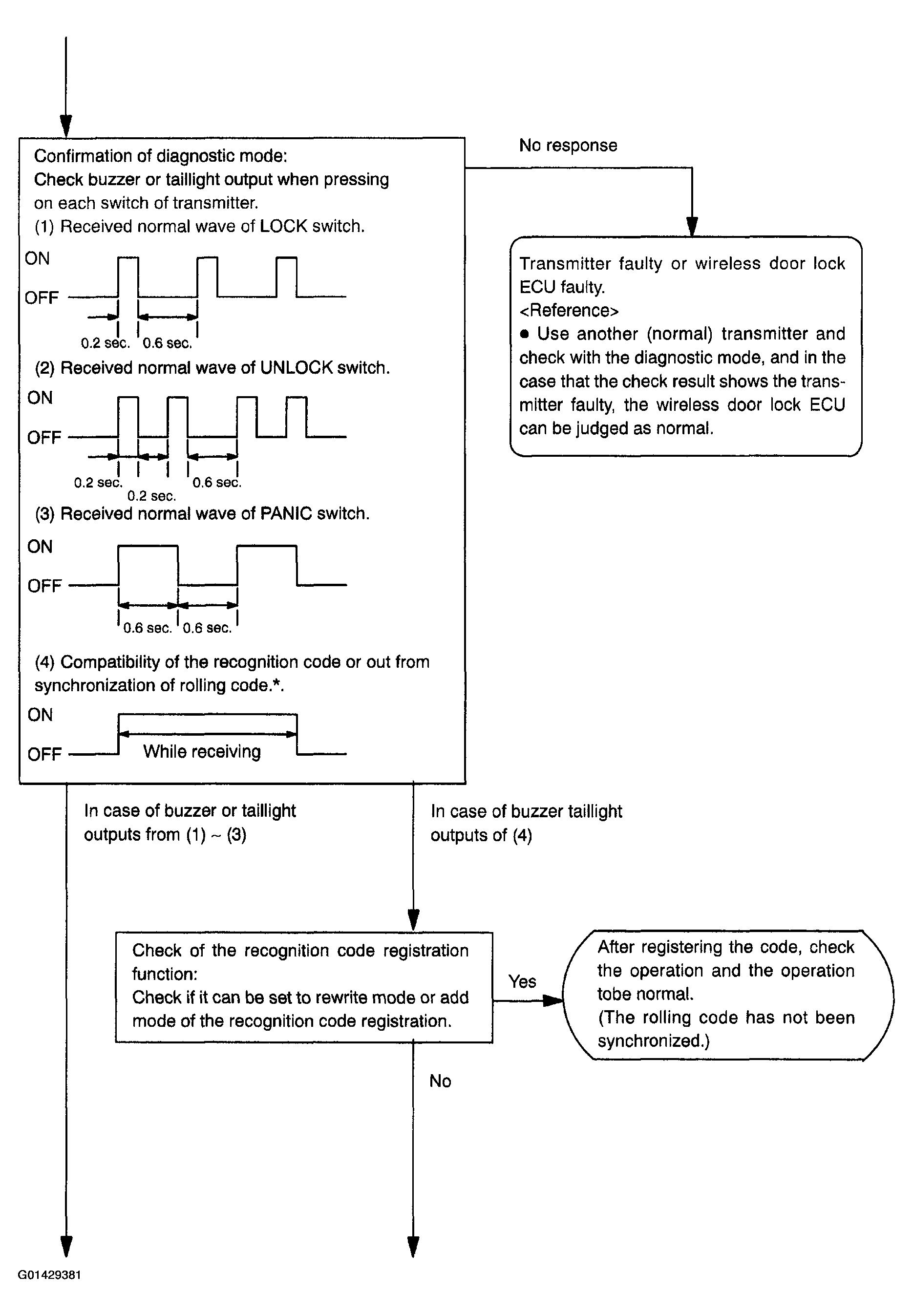

Fig 2: Flow Chart For Symptom Wireless Function (Remote Control) Does Not Operate (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

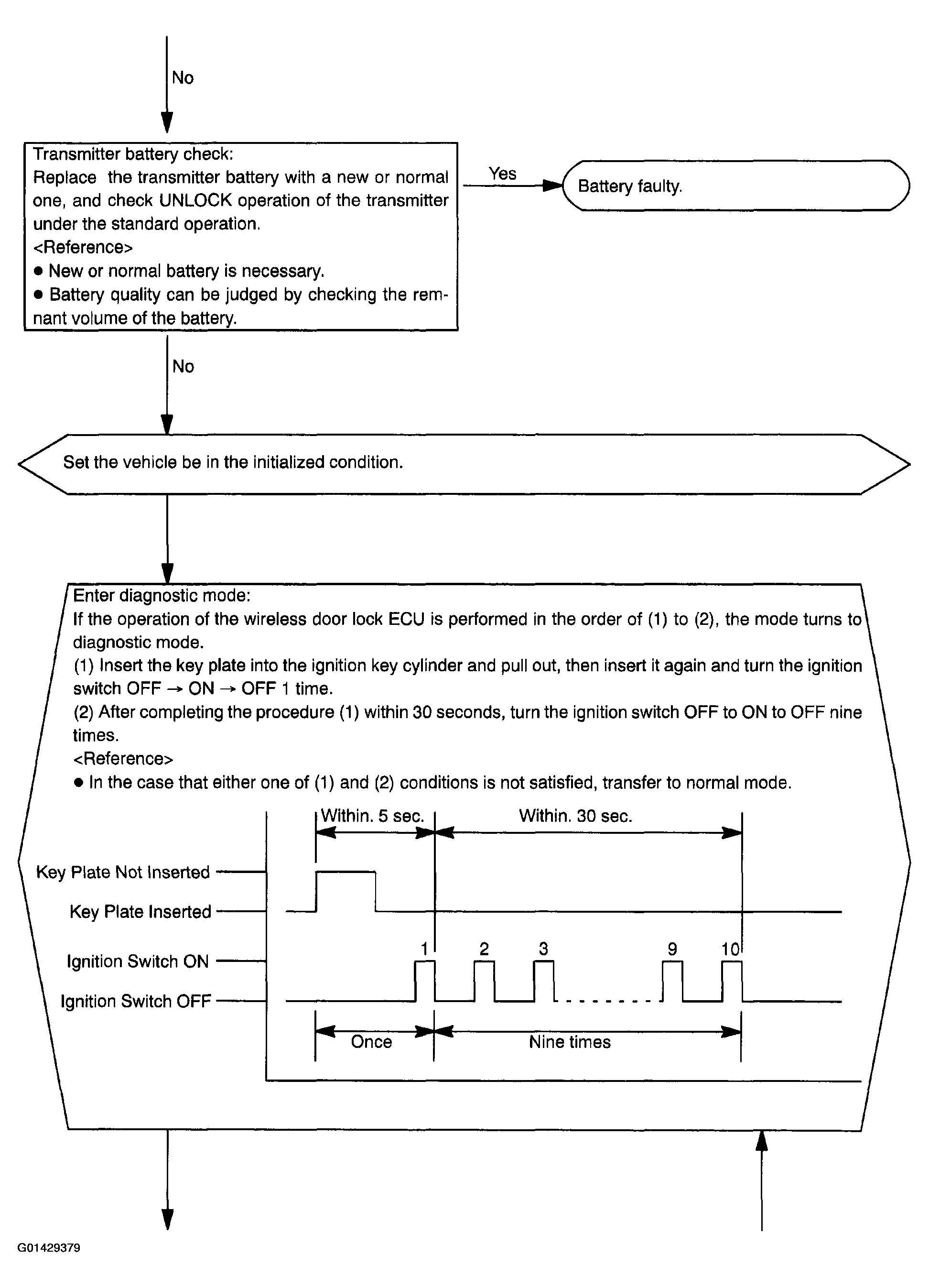

Fig 3: Flow Chart For Symptom Wireless Function (Remote Control) Does Not Operate (3 Of 5)

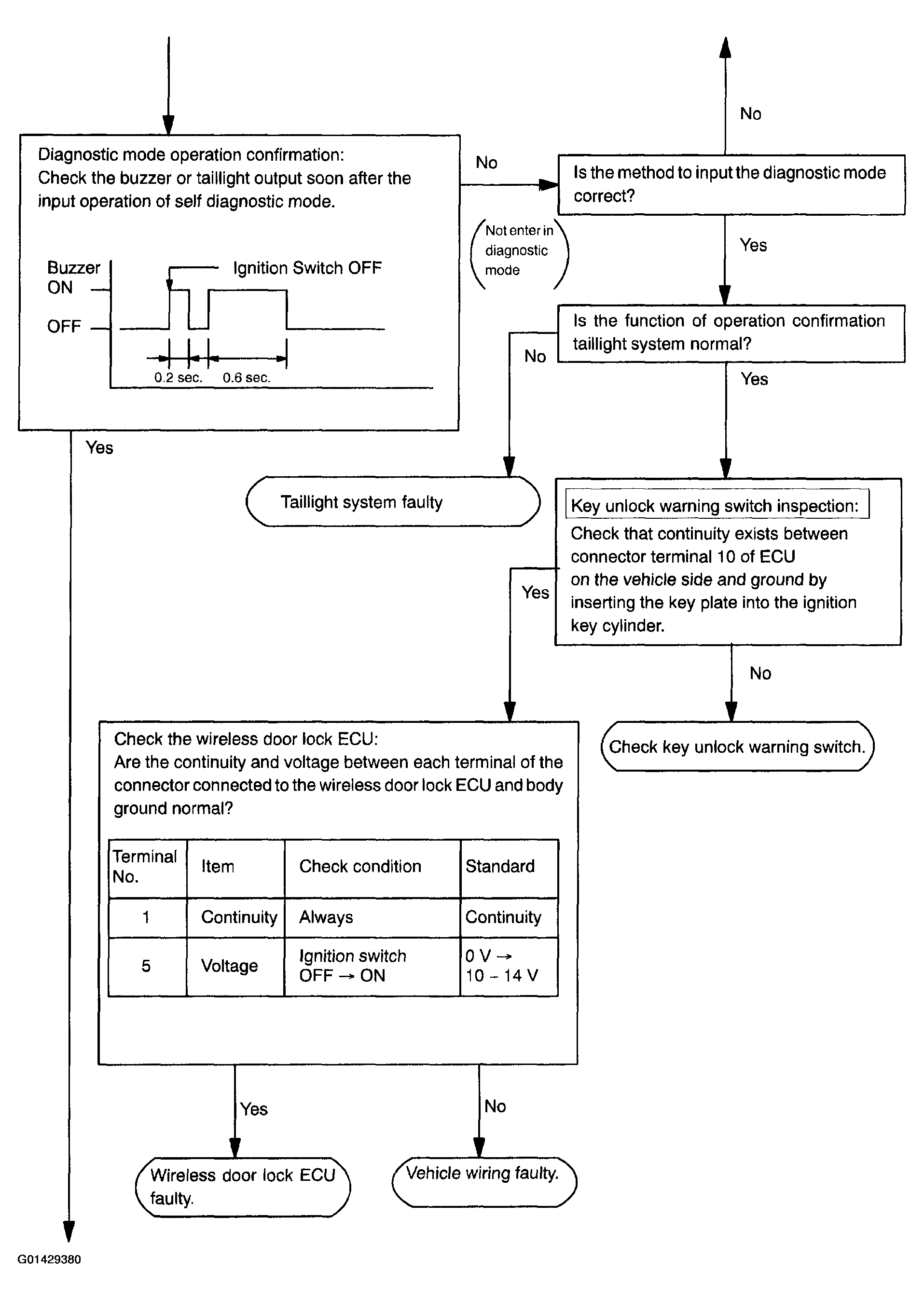

Fig 4: Flow Chart For Symptom Wireless Function (Remote Control) Does Not Operate (4 Of 5)

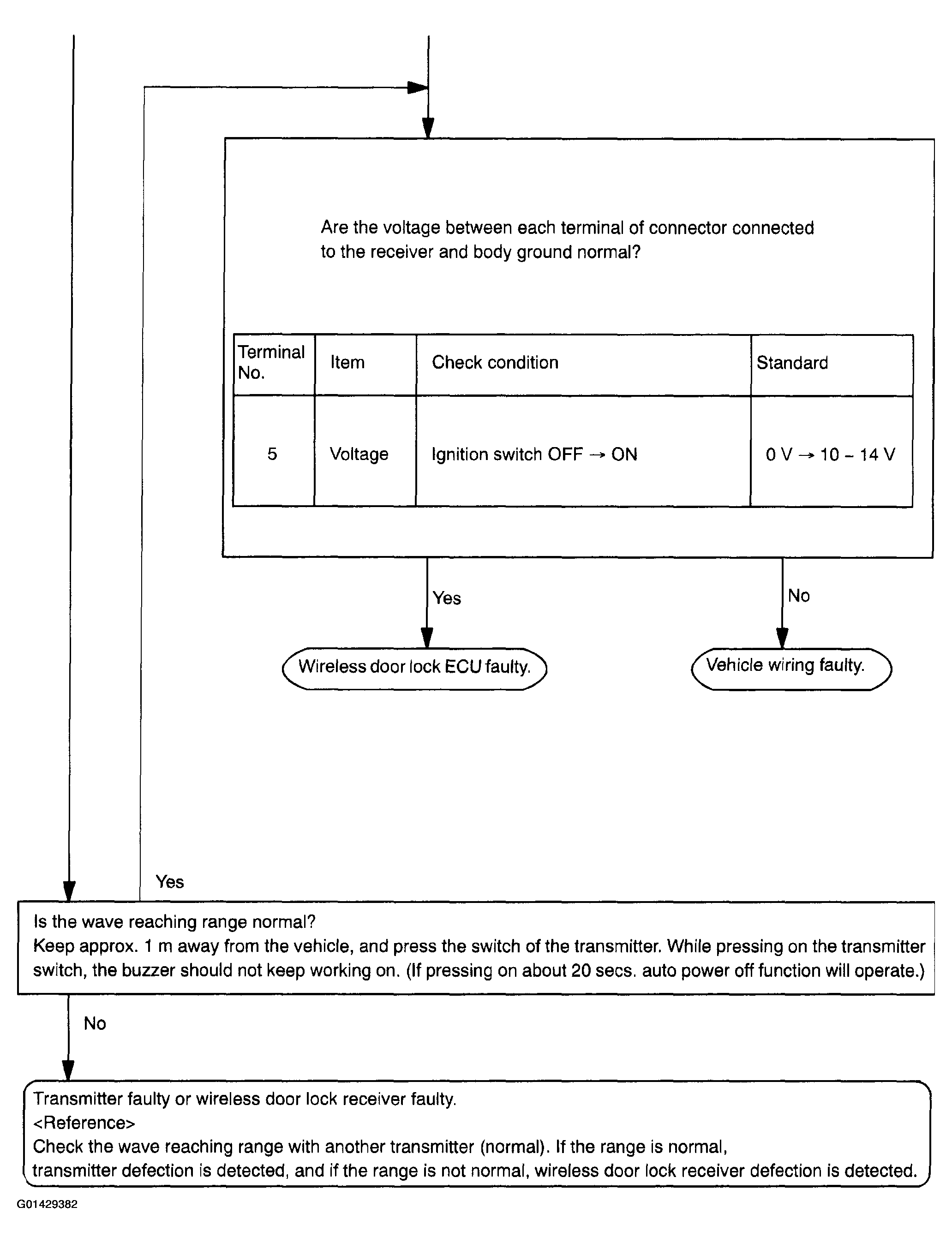

Fig 5: Flow Chart For Symptom Wireless Function (Remote Control) Does Not Operate (5 Of 5)
