Driver-side AIR Bag Module
WARNING: This page is about a different car, the 2002 Lexus LX 470. However, it is still accessible from the selected car via links, so may be relevant.
- Before proceeding, See AIR BAG SAFETY PRECAUTIONS . Disable air bag system. See DISABLING SYSTEM under DISABLING & ACTIVATING AIR BAG SYSTEM. Remove driver-side air bag module. See DRIVER-SIDE AIR BAG MODULE under REMOVAL & INSTALLATION.

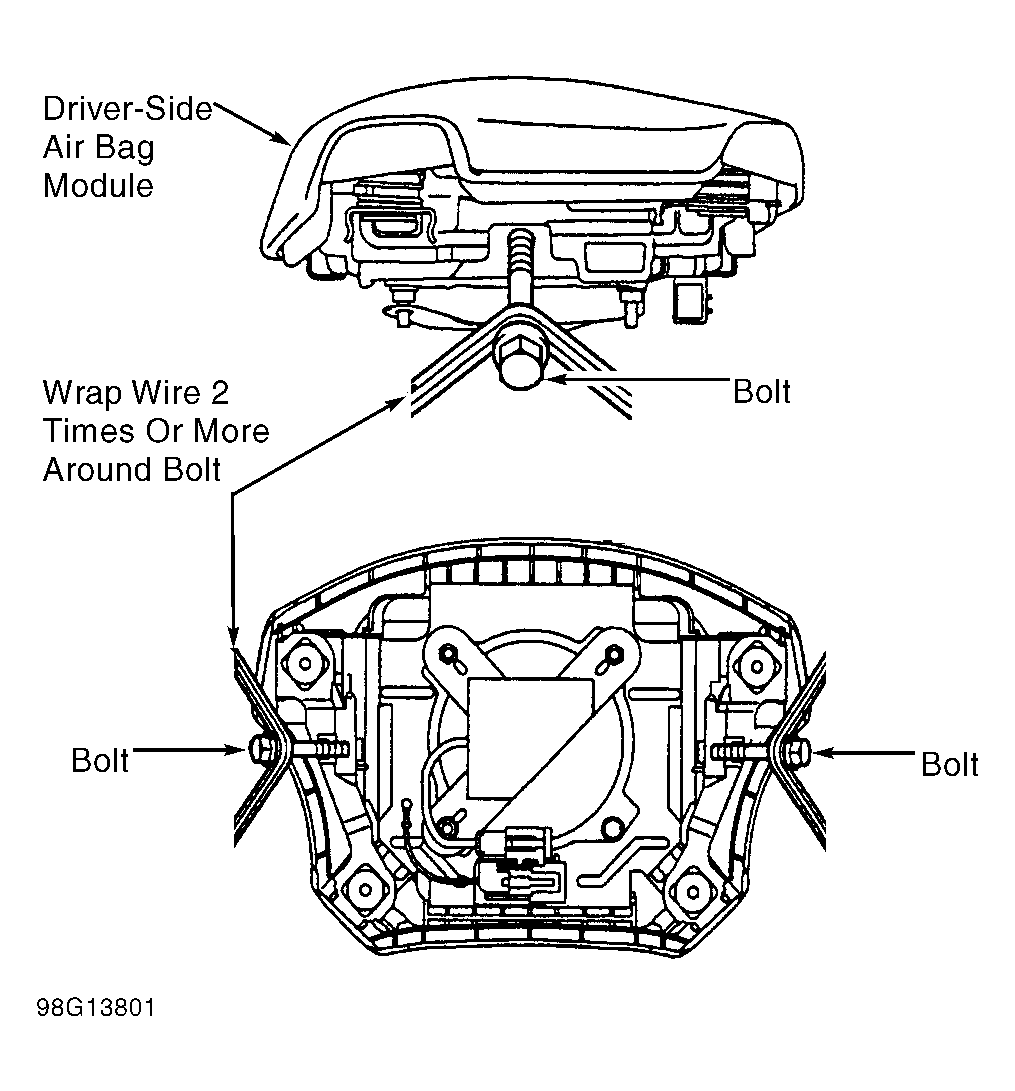

- Install 2 bolts (6 mm X 35 mm) with washers into holes located in rear of driver-side air bag module. Tighten bolts by hand. DO NOT overtighten bolts. Wrap strong wire at least twice around each bolt. See Fig 1. Ensure no slack is present in wire. If slack is present, or wire is not strong enough, driver-side air bag module may become loose due to shock when air bag is deployed.

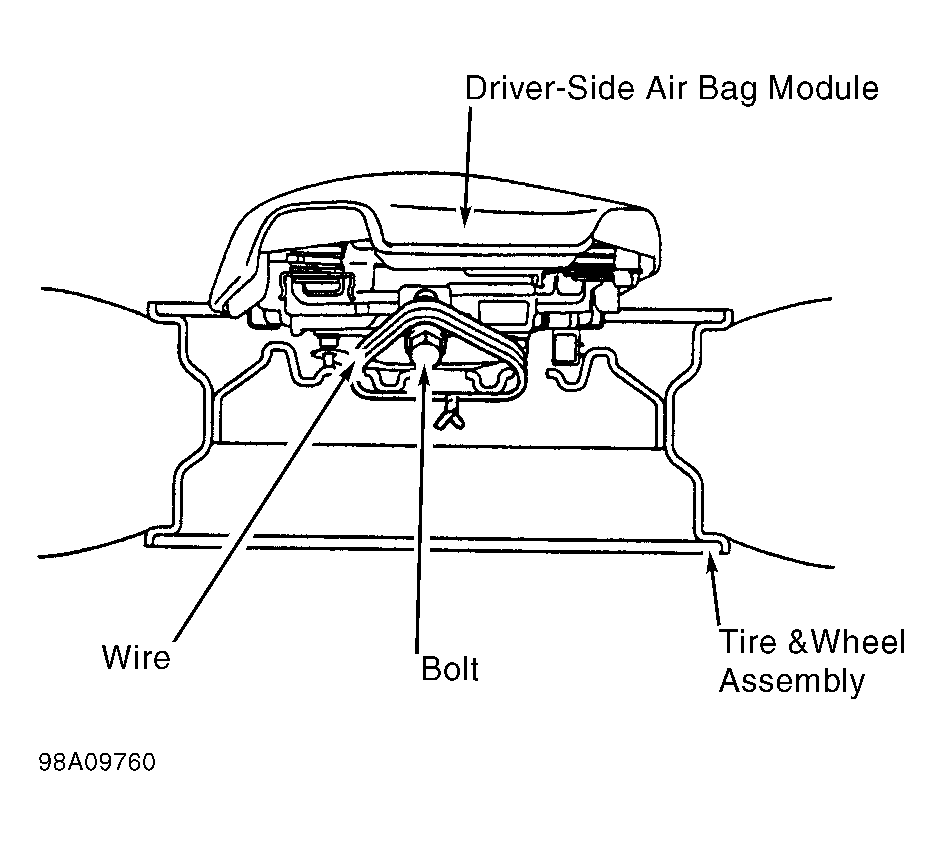

- Position driver-side air bag module on rim of a scrap wheel and tire assembly with pad side facing upward. See Fig 2. Securely tie driver-side air bag module to wheel rim through lug nut holes. Place a large cardboard box (weighted at sides with at least 44 lbs.) or 3 scrap tires on top of driver-side air bag module.
- Connect Deployment Tool (09082-00700 and 09082-00760) to driver-side air bag module connector. Position deployment tool at least 33 feet away from driver-side air bag module. Press activation switch to deploy driver-side air bag module. Because of heat, wait 30 minutes before handling driver-side air bag module. Seal deployed air bag module in vinyl bag and dispose of in usual manner.
