Section 307 (Water Pump): Inspection

WARNING: This page is about a different car, the 2004 Lexus LX 470. However, it is still accessible from the selected car via links, so may be relevant.

INSPECT WATER PUMP
1. Visually check the hole and water hole for coolant leakage.
  If leakage is found, replace the water pump and timing belt.
2. Turn the pulley, and check that the water pump bearing moves smoothly and quietly.
  If necessary, replace the water pump.

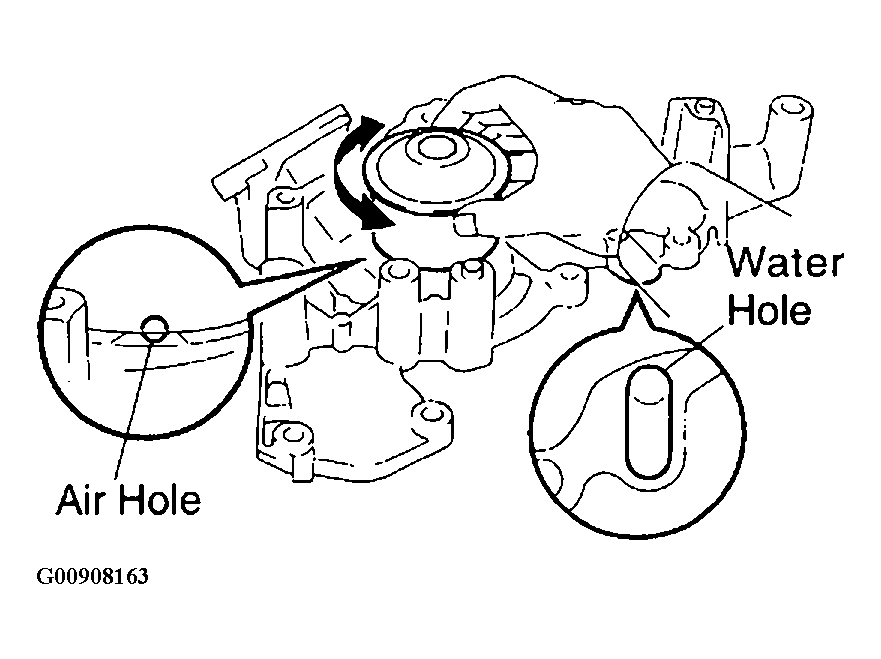

Fig 1: Inspecting Water Pump
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT TIMING BELT COMPONENTS (See INSPECTION )
