Section 307 (Water Pump): Removal

WARNING: This page is about a different car, the 2004 Lexus LX 470. However, it is still accessible from the selected car via links, so may be relevant.
  1. DRAIN ENGINE COOLANT
  2. REMOVE TIMING BELT (See  REMOVAL  )
  3. REMOVE NO. 2 IDLER PULLEY (See  REMOVAL  )

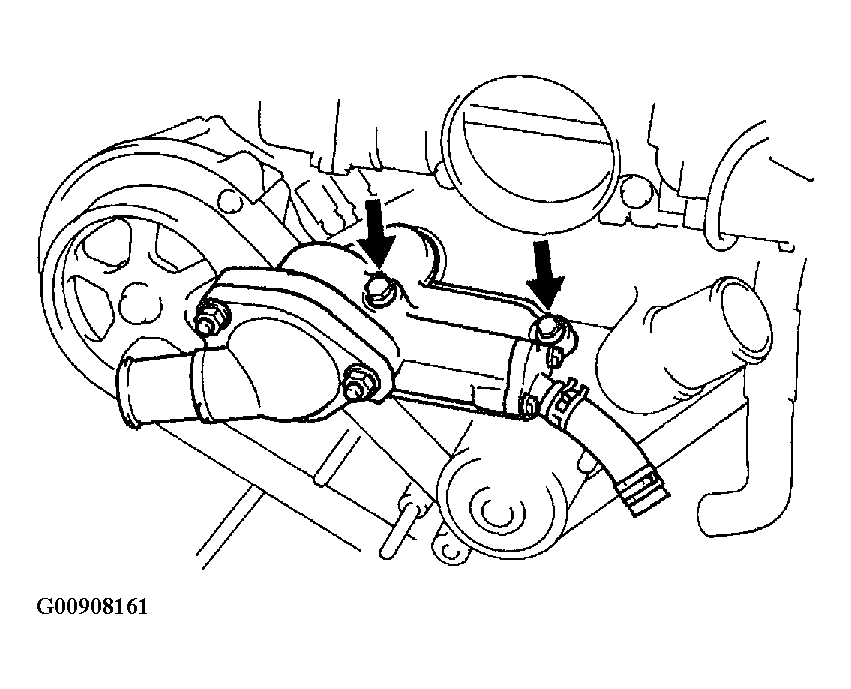

    Fig 1: Removing Water Inlet & Inlet Housing Assembly
    G00908161Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE WATER INLET AND INLET HOUSING ASSEMBLY
    1. Disconnect the water bypass hose from the water inlet housing.
    2. Remove the 2 bolts holding the water inlet housing to the water pump.
    3. Disconnect the water inlet housing from the front water bypass joint, and remove the water inlet housing assembly.

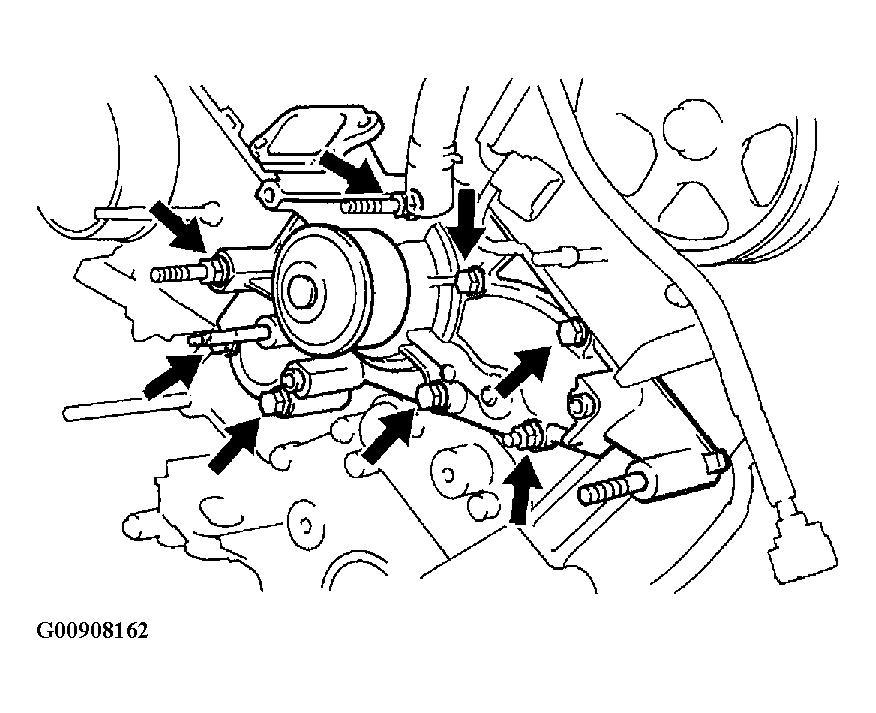

    Fig 2: Removing Water Pump Bolts
    G00908162Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE WATER PUMP
    1. Remove the 5 bolts, 2 stud bolts, nut, water pump and gasket.
    2. Remove the O-ring from the water bypass pipe.
