Blower ASSY: Components

WARNING: This page is about a different car, the 2004 Lexus SC 430. However, it is still accessible from the selected car via links, so may be relevant.

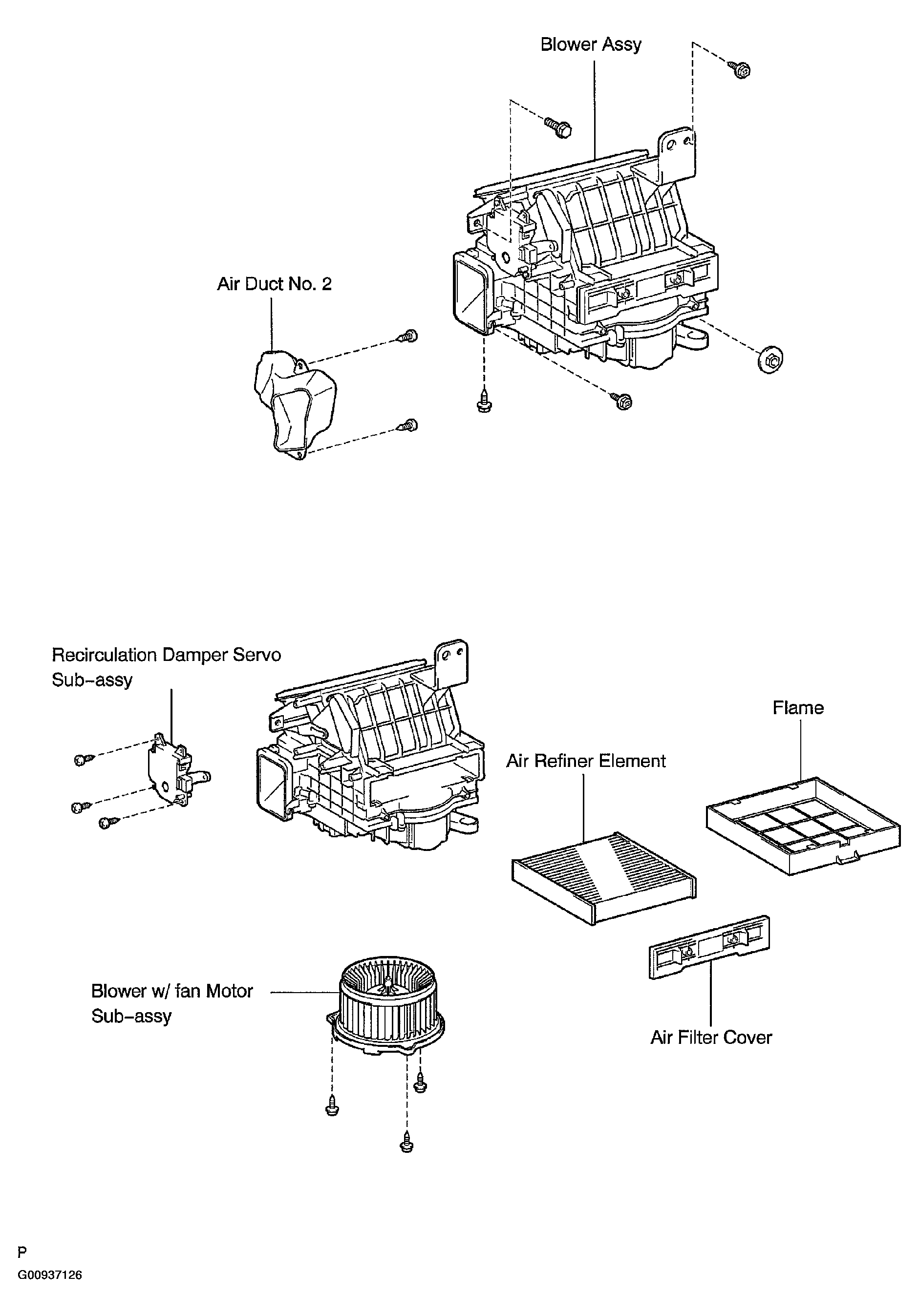

Fig 1: Identifying Components Of Blower Assy (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

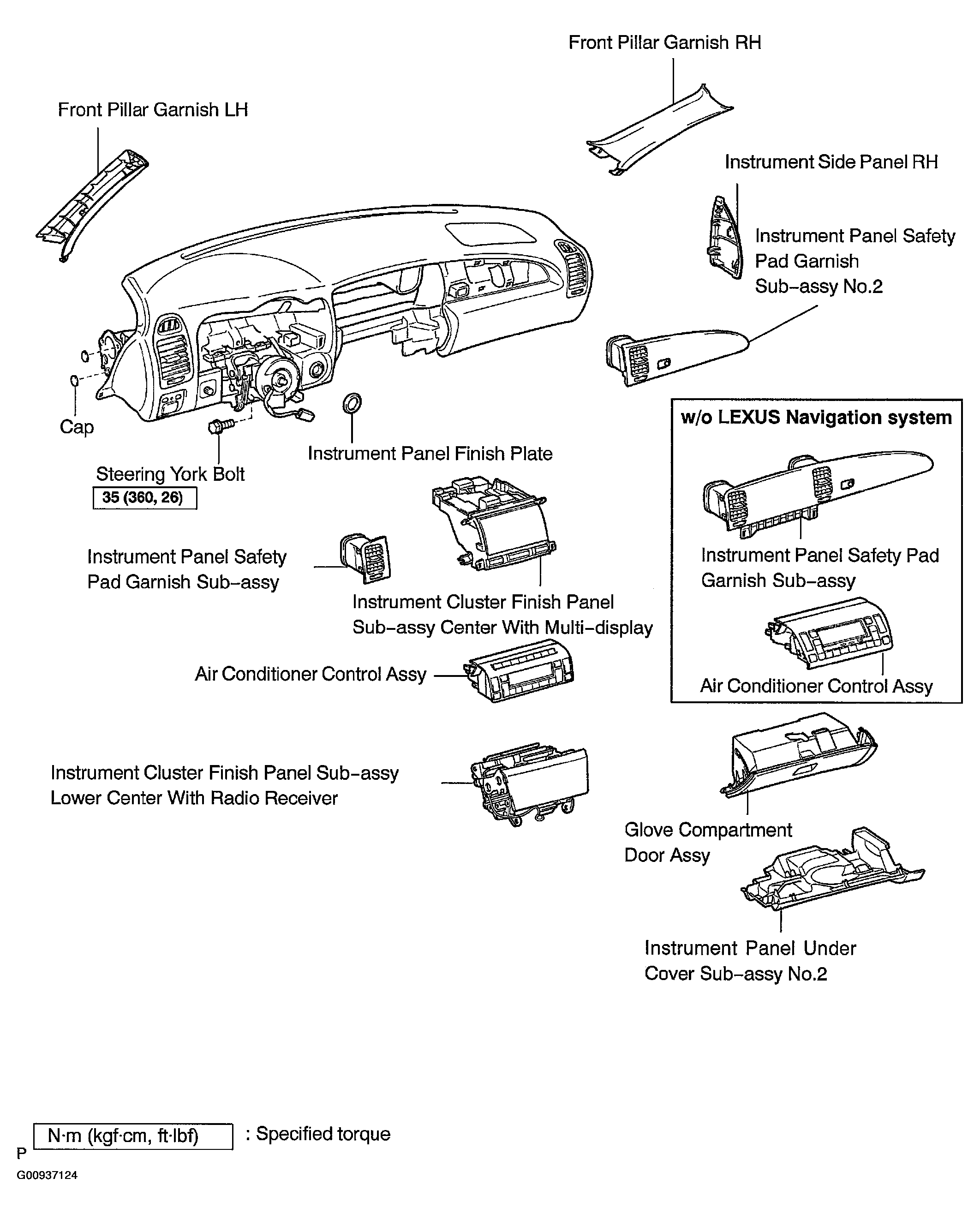

Fig 2: Identifying Components Of Blower Assy (2 Of 3)

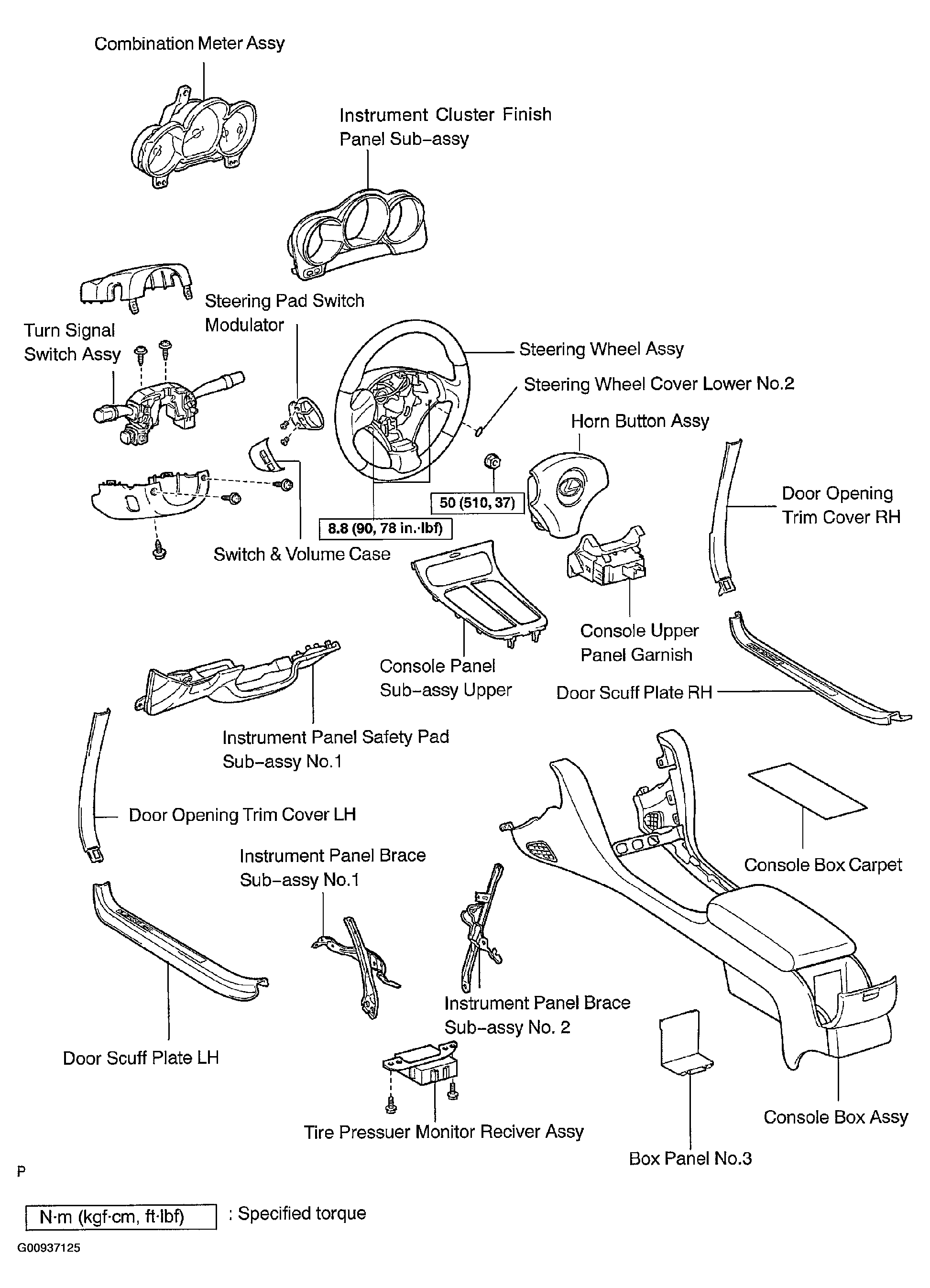

Fig 3: Identifying Components Of Blower Assy (3 Of 3)
