Terminals Of Ecu: Notes

WARNING: This page is about a different car, the 2003 Lexus LX 470. However, it is still accessible from the selected car via links, so may be relevant.
  1. CONNECTORS

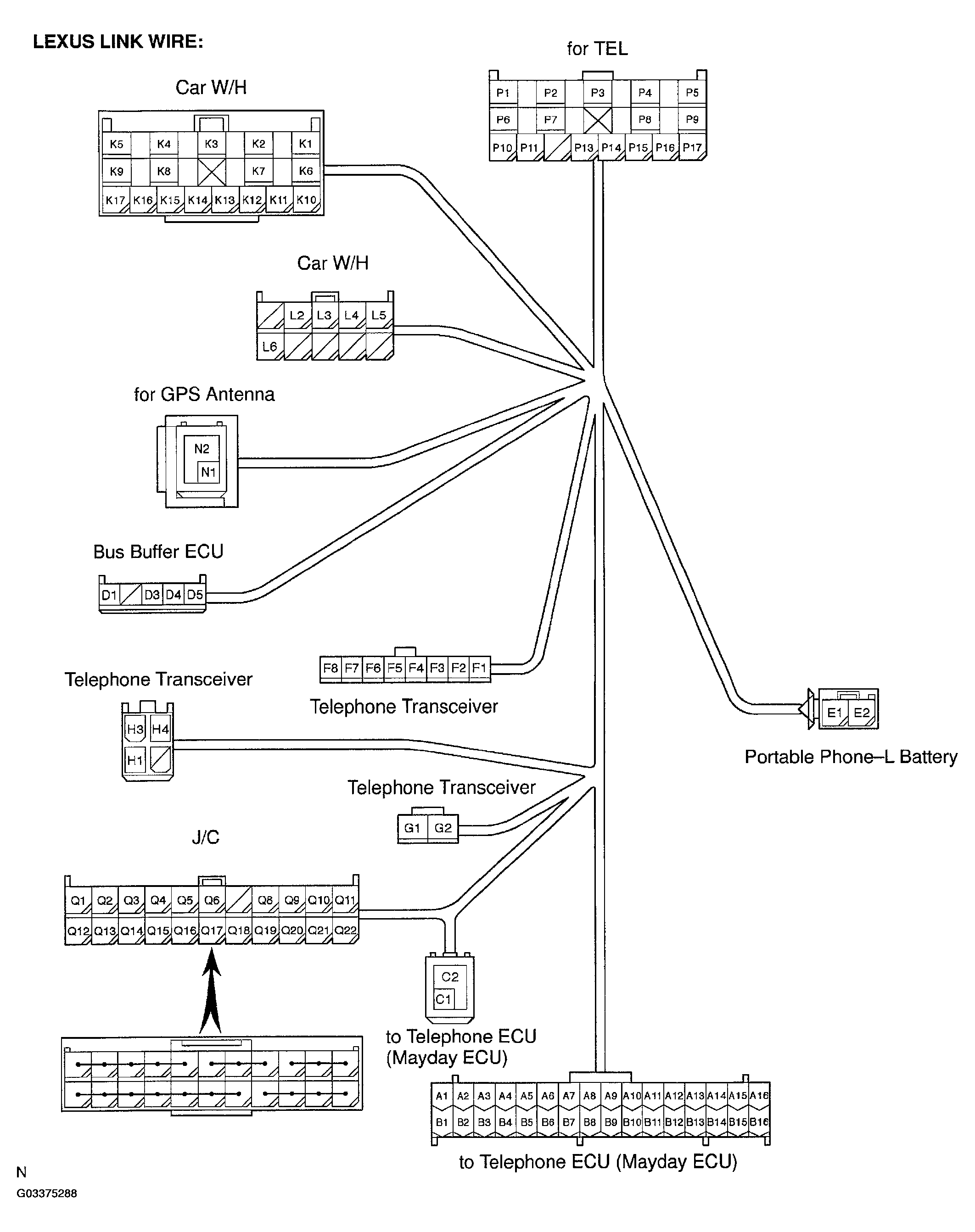

    Fig 1: Lexus Link Wire Connectors
    G03375288Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. WIRING DIAGRAMS

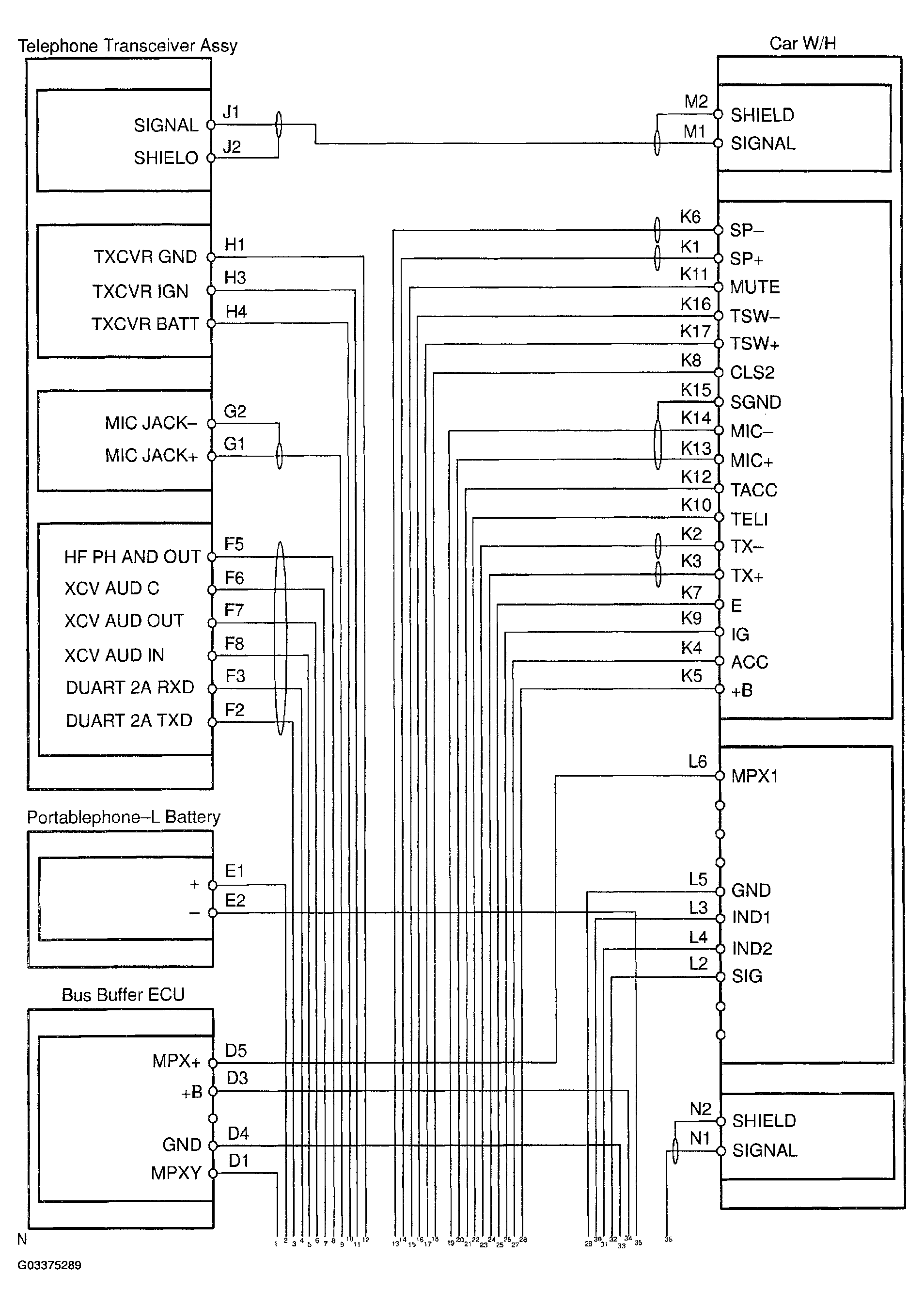

    Fig 2: Wiring Diagrams (1 Of 2)
    G03375289Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

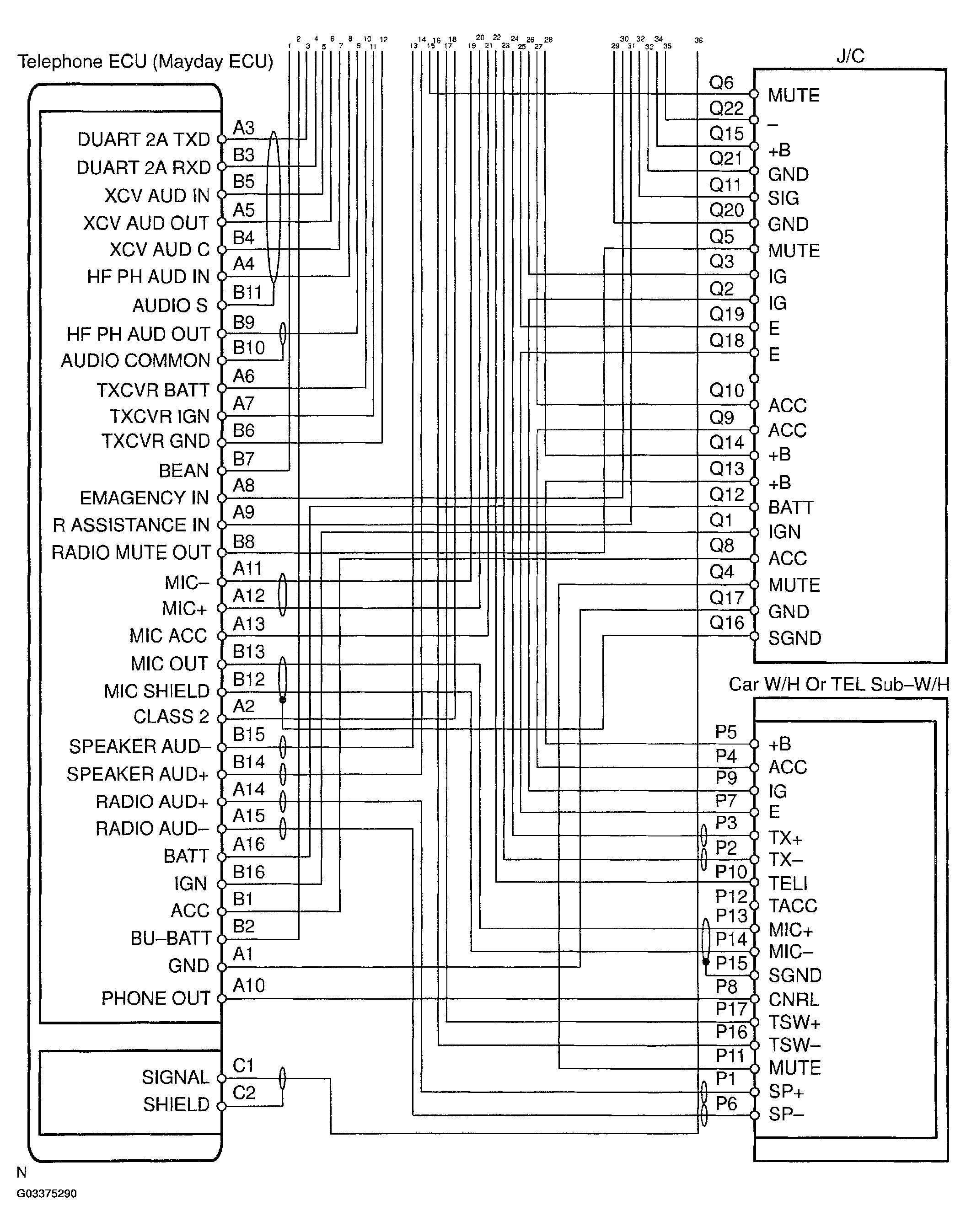

    Fig 3: Wiring Diagrams (2 Of 2)
    G03375290Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
