Section 437 (Illumination Light System): Location

WARNING: This page is about a different car, the 2003 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

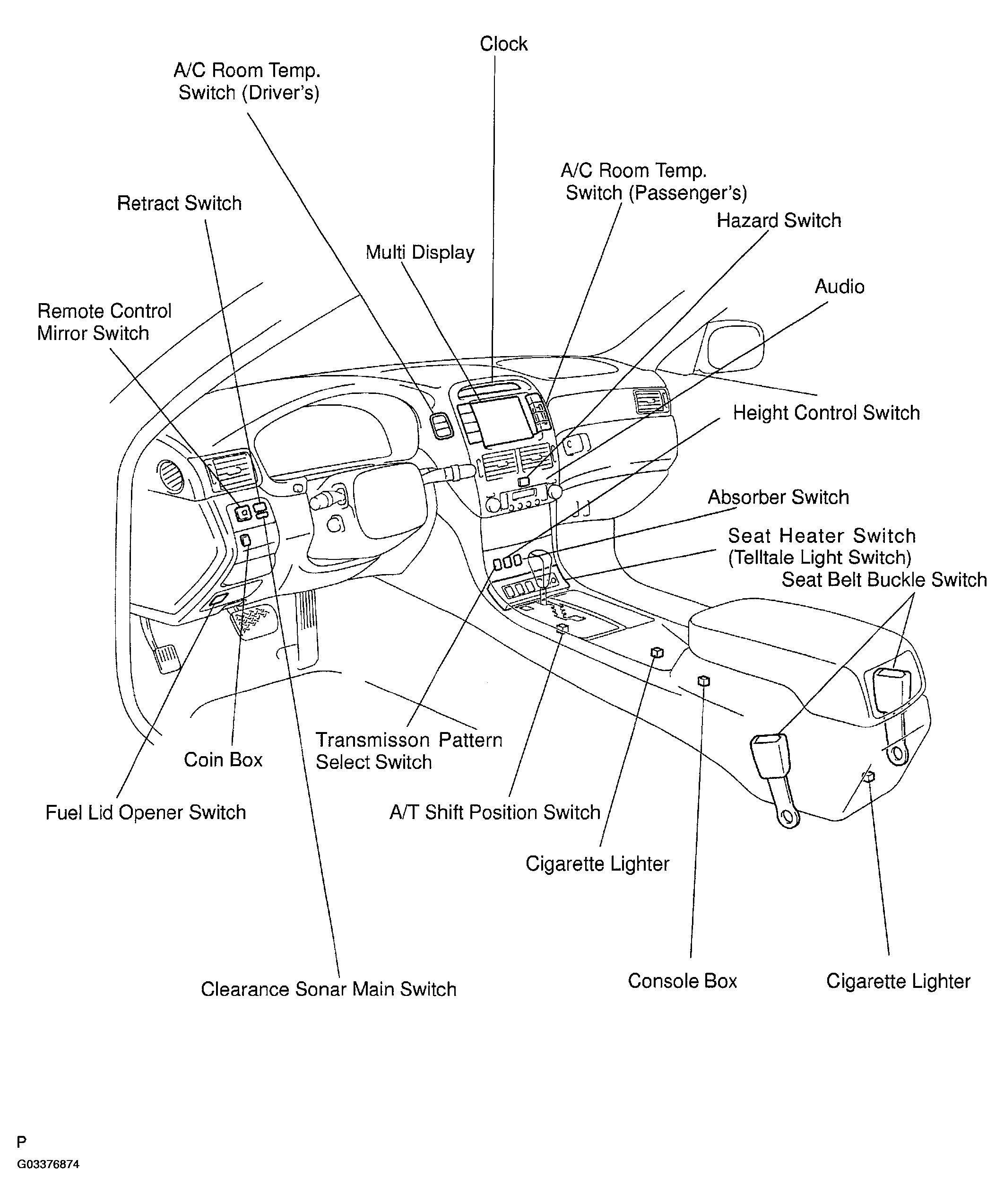

Fig 1: Identifying Illumination Light System Components Location (1 Of 2)
