Section 502 (Rear Seat (Power Adjuster Type)): Components

WARNING: This page is about a different car, the 2004 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

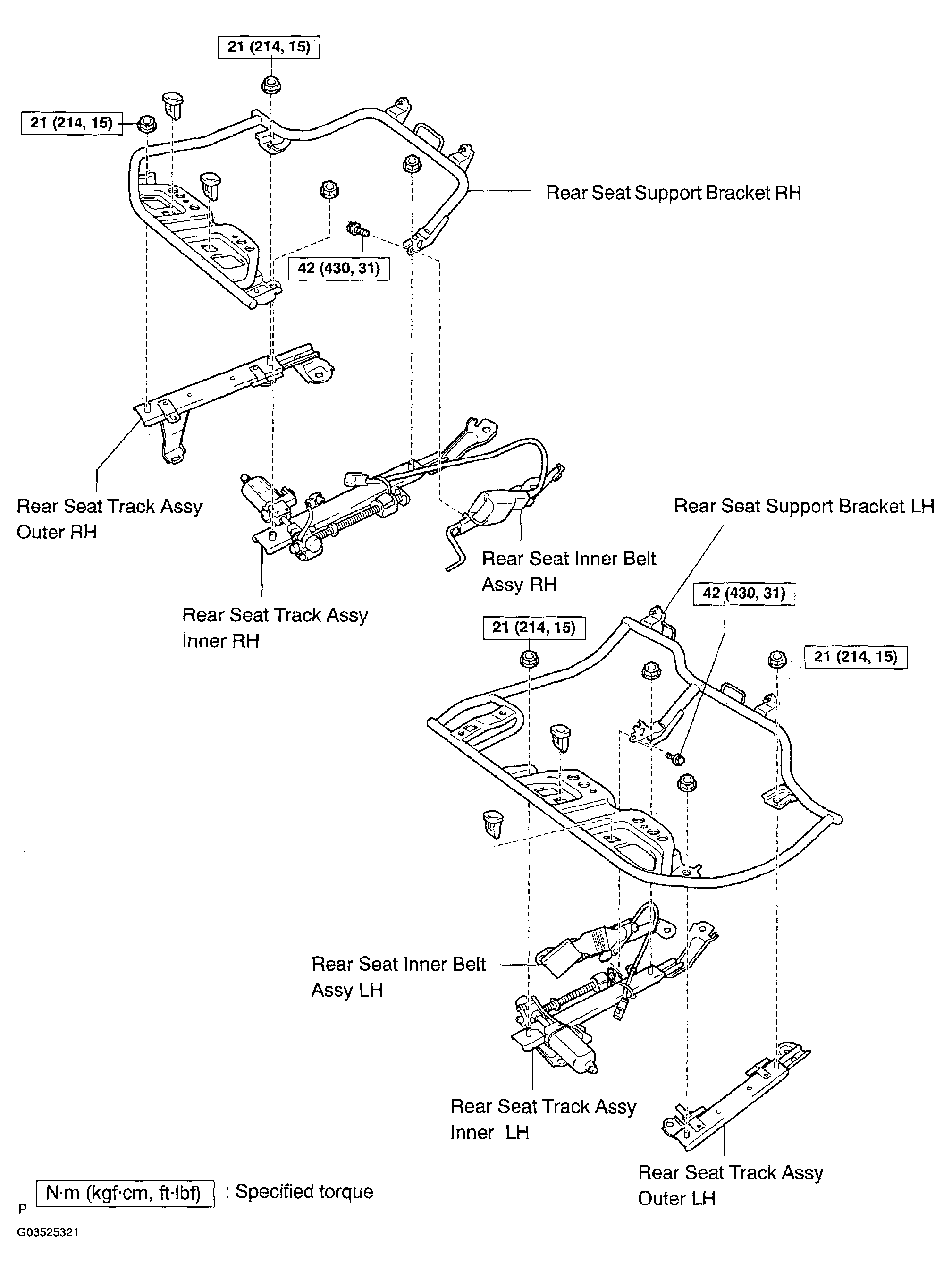

Fig 1: Exploded View Of Rear Seat Assembly Components And Torque Specifications (Power Adjuster Type) (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

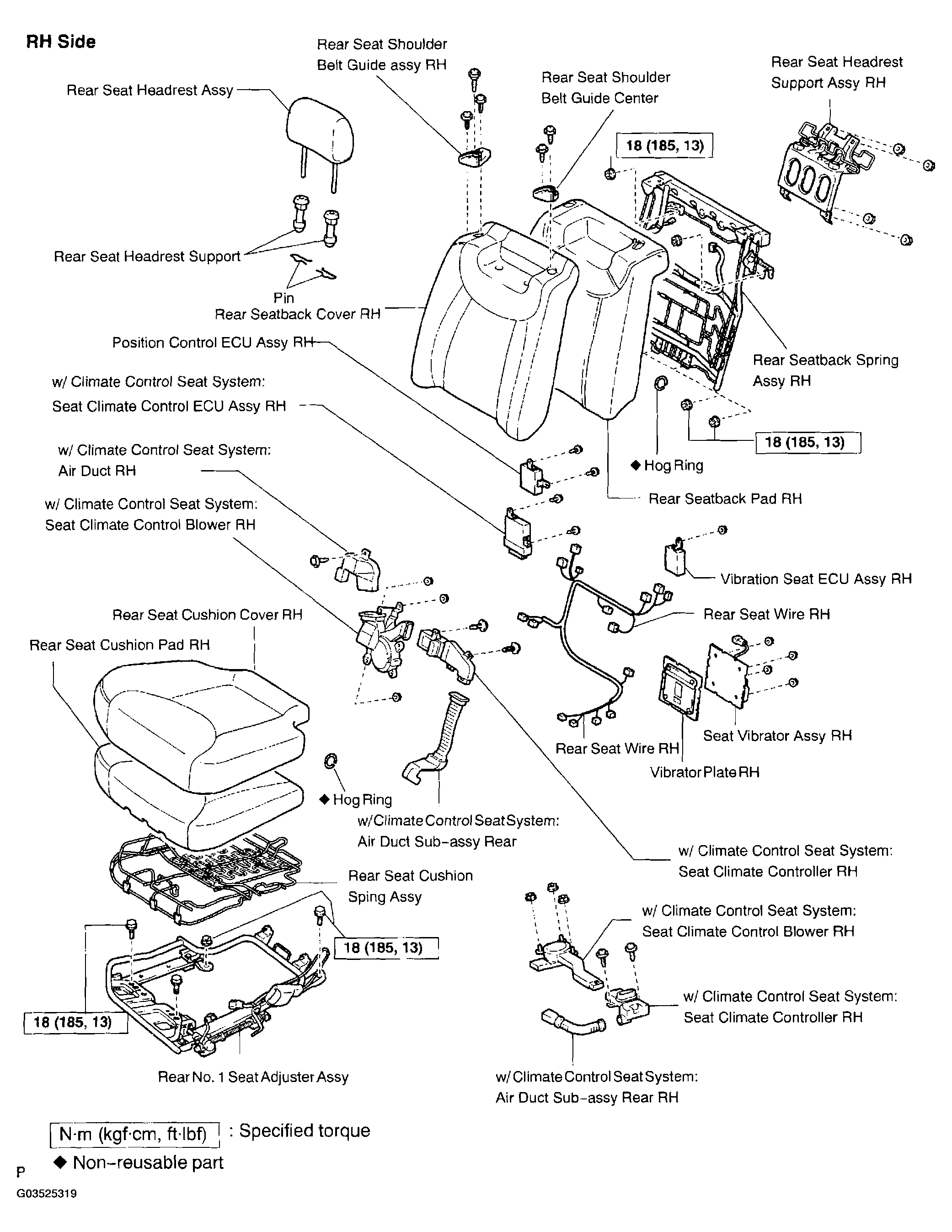

Fig 2: Exploded View Of Rear Seat Assembly Components And Torque Specifications (Power Adjuster Type) (2 Of 3)

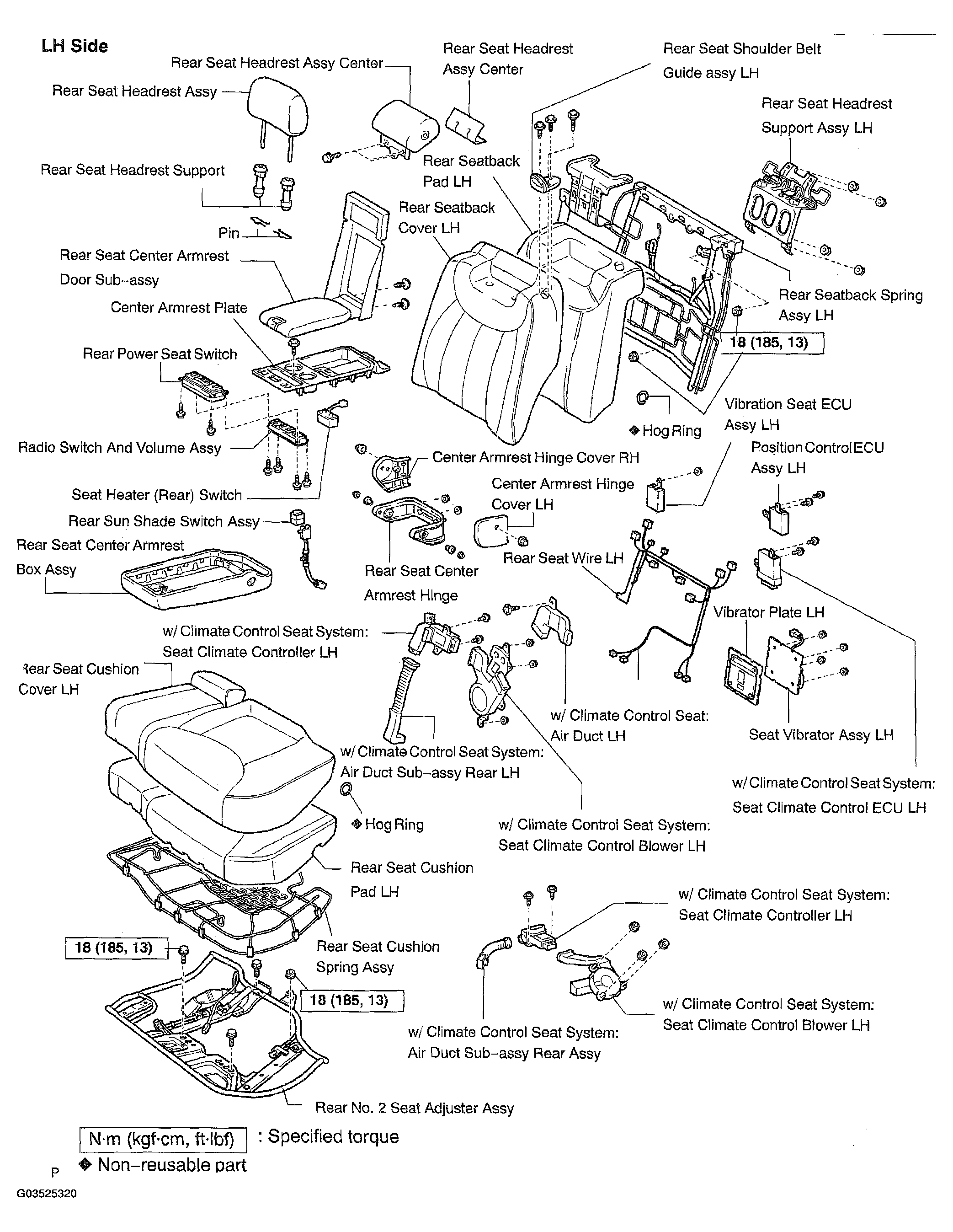

Fig 3: Exploded View Of Rear Seat Assembly Components And Torque Specifications (Power Adjuster Type) (3 Of 3)
