Section 503 (Sliding Roof): Components: Notes

WARNING: This page is about a different car, the 2004 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

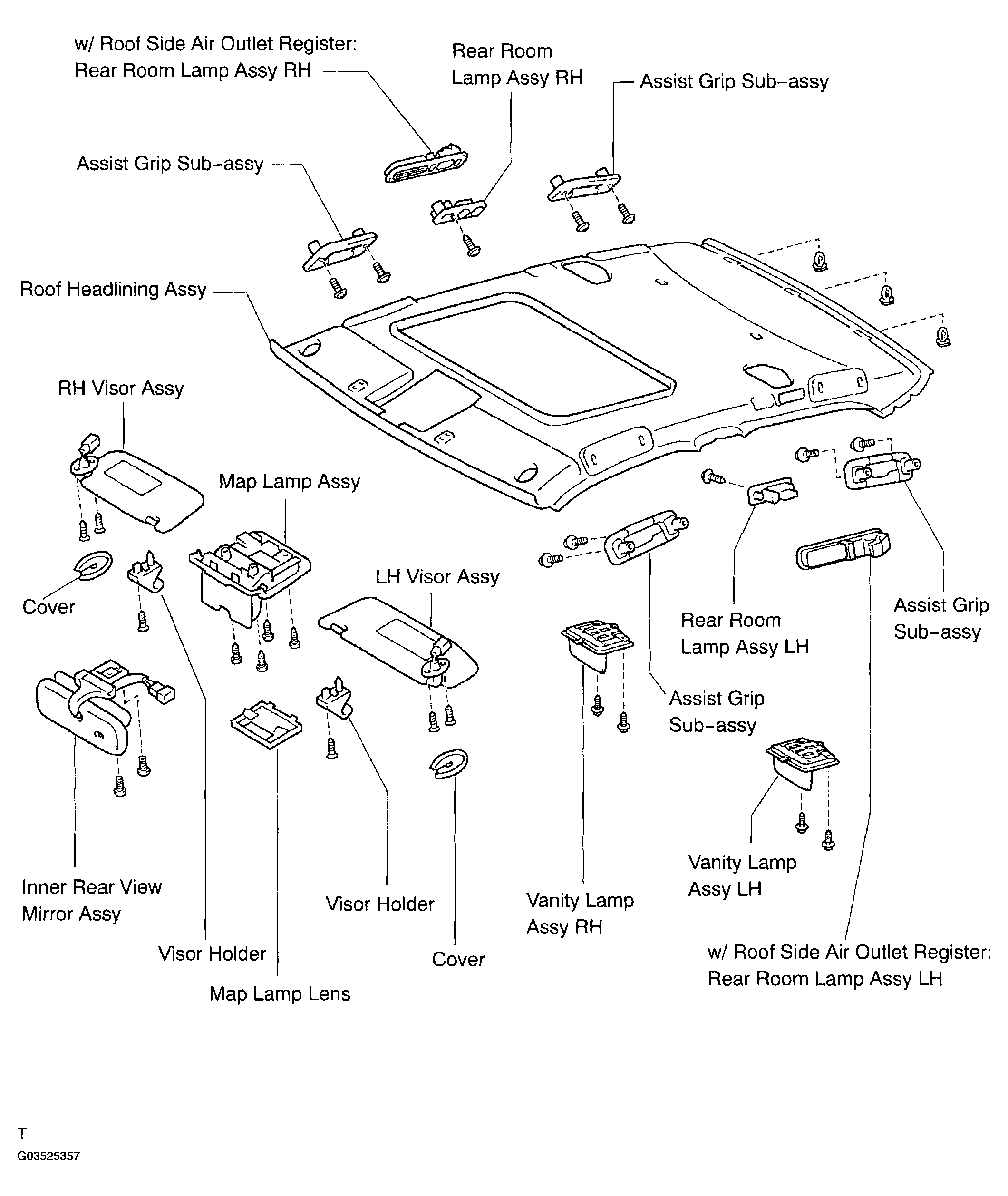

Fig 1: Locating Sliding Roof Components (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

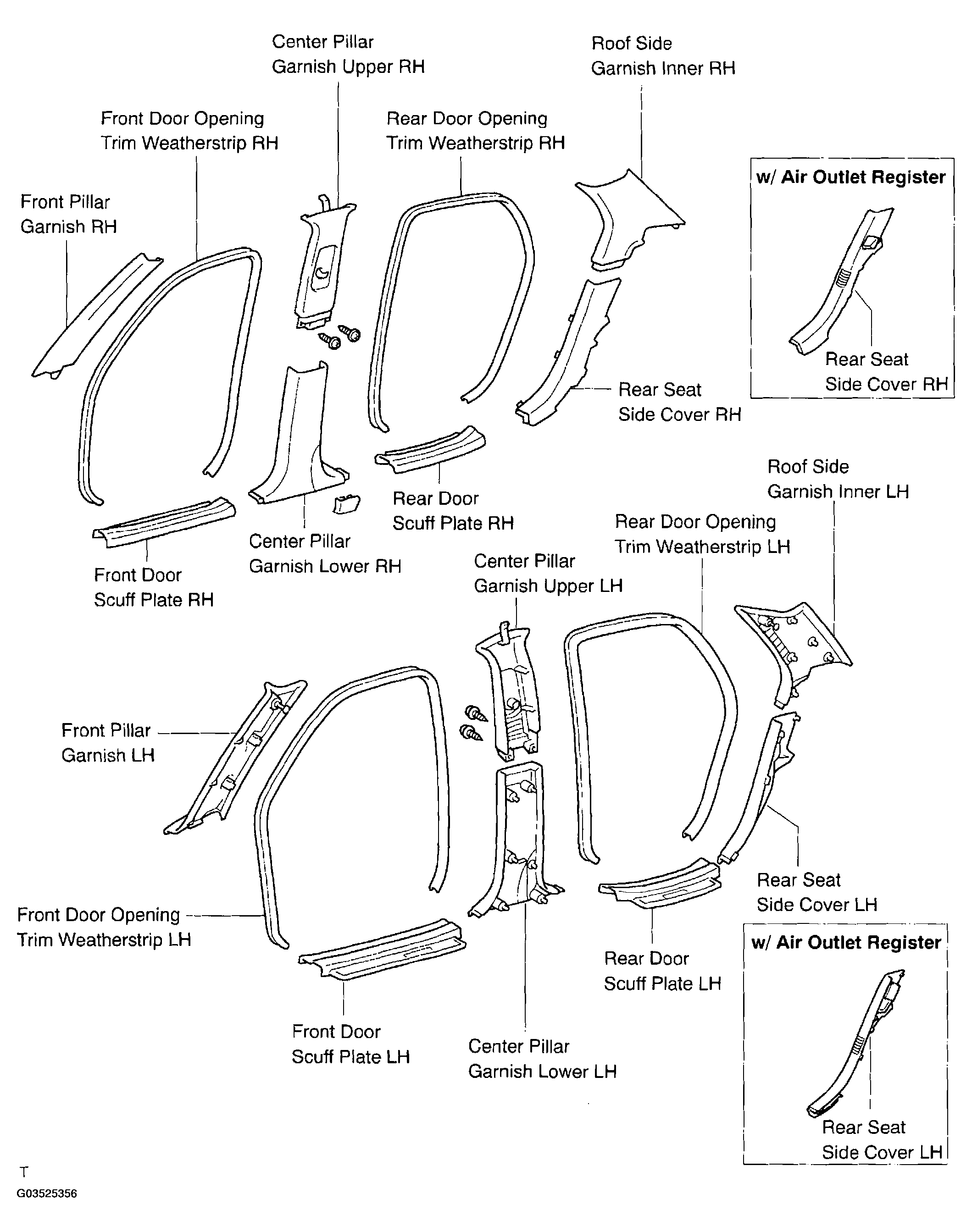

Fig 2: Locating Sliding Roof Components (2 Of 3)

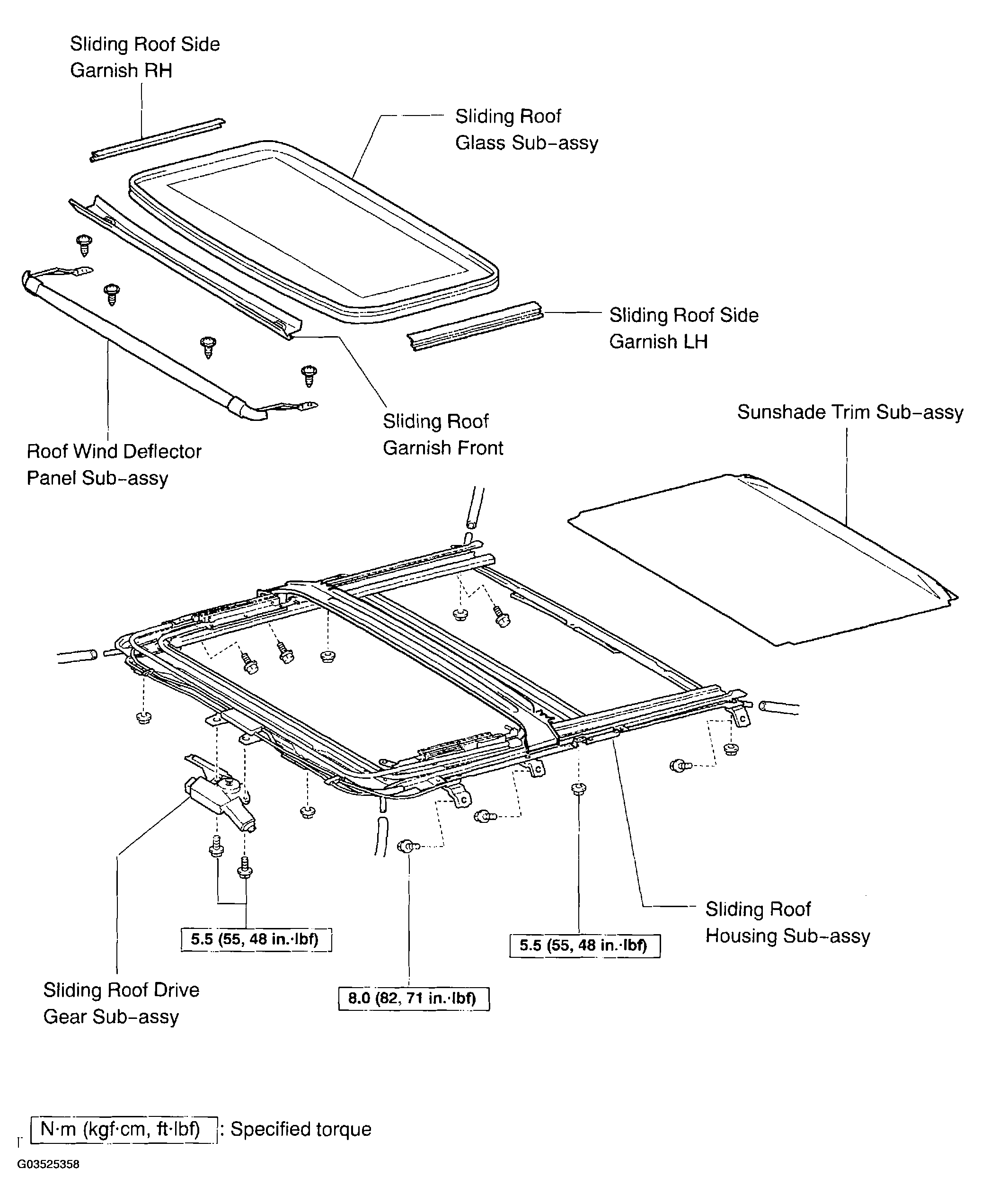

Fig 3: Locating Sliding Roof Components (3 Of 3)
