Section 520 (Power Source): Location

WARNING: This page is about a different car, the 2004 Lexus LX 470. However, it is still accessible from the selected car via links, so may be relevant.

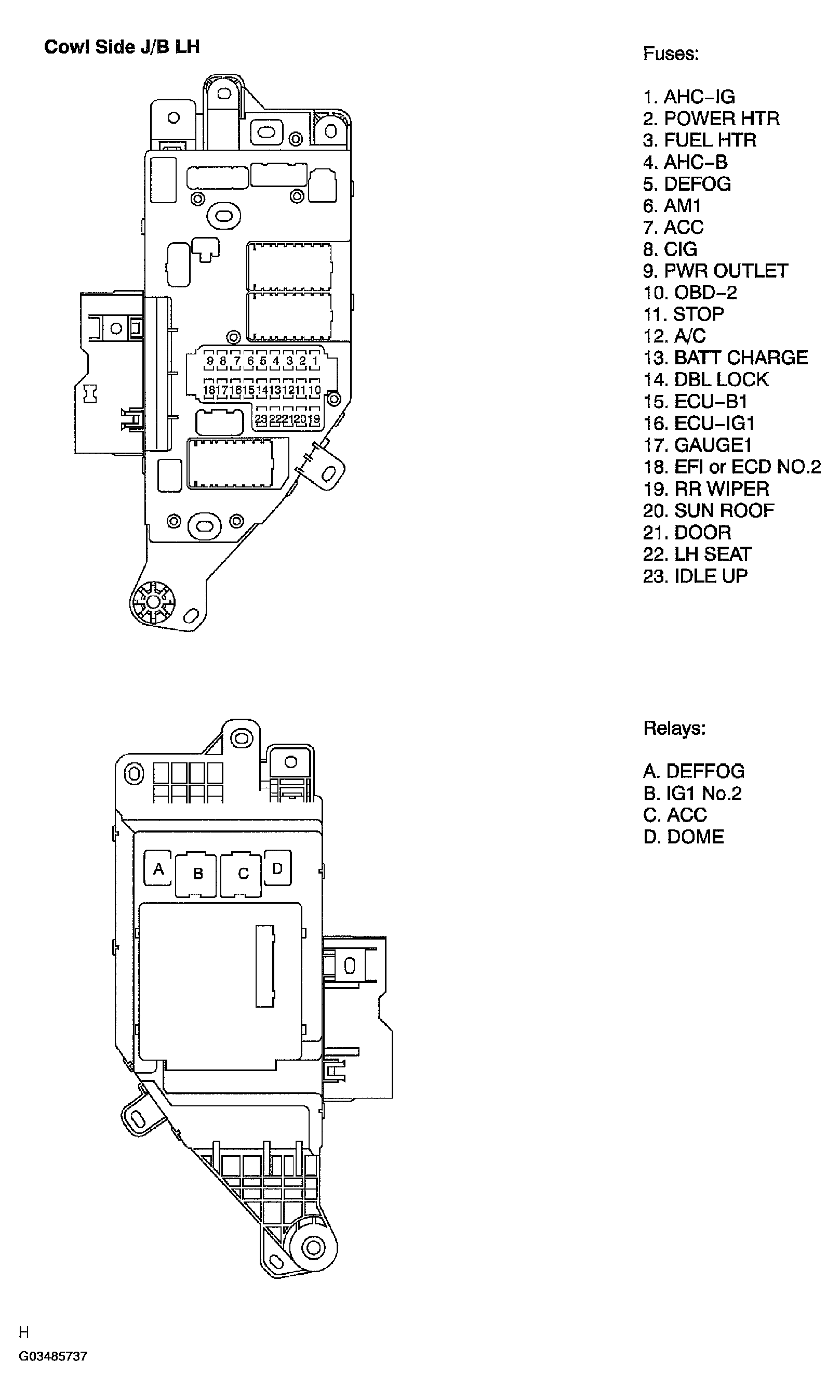

Fig 1: Locating Body Electrical Power Source Components (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

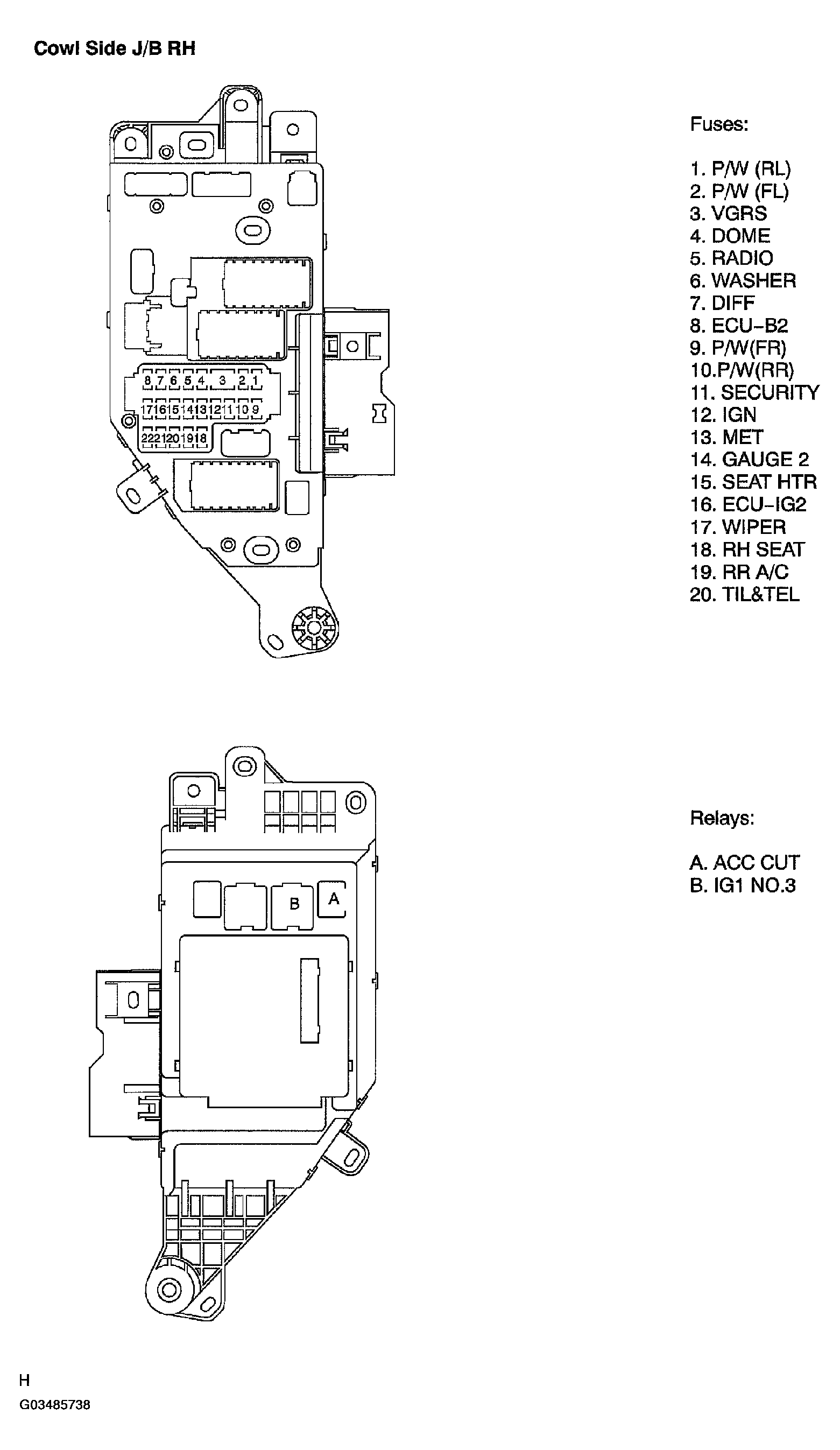

Fig 2: Locating Body Electrical Power Source Components (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

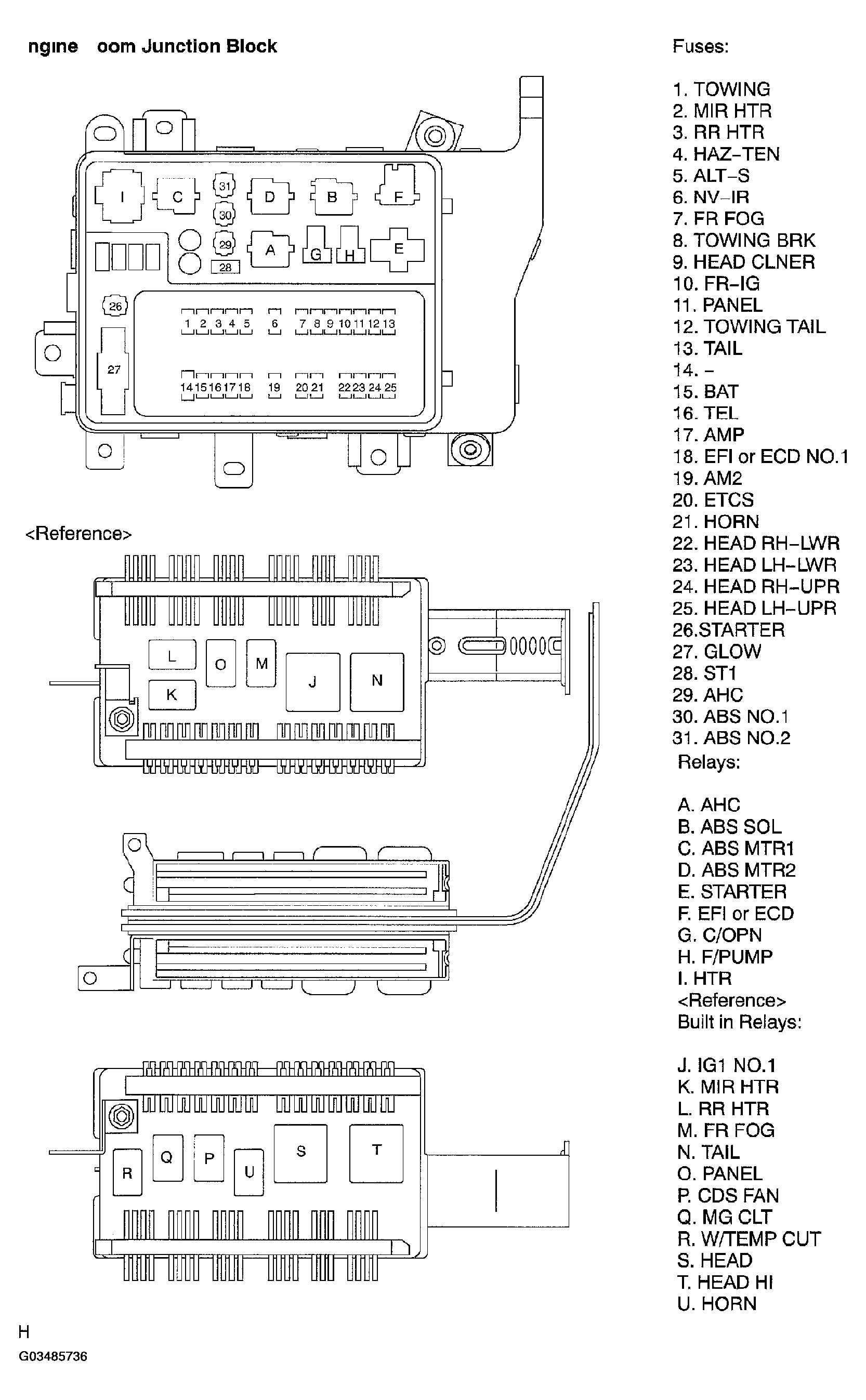

Fig 3: Locating Body Electrical Power Source Components (3 Of 4)

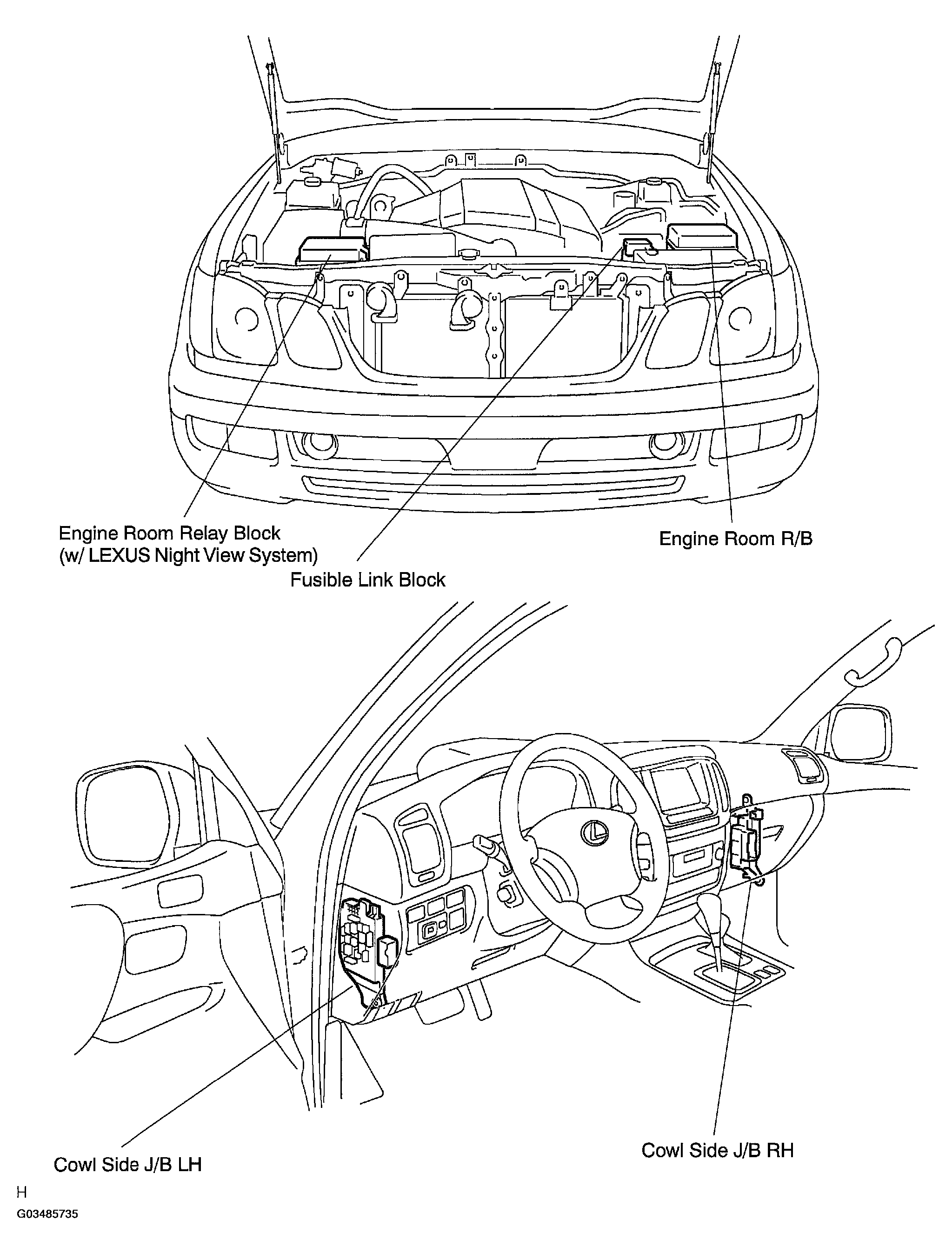

Fig 4: Locating Body Electrical Power Source Components (4 Of 4)
