Section 527 (Wiper & Washer System): Inspection

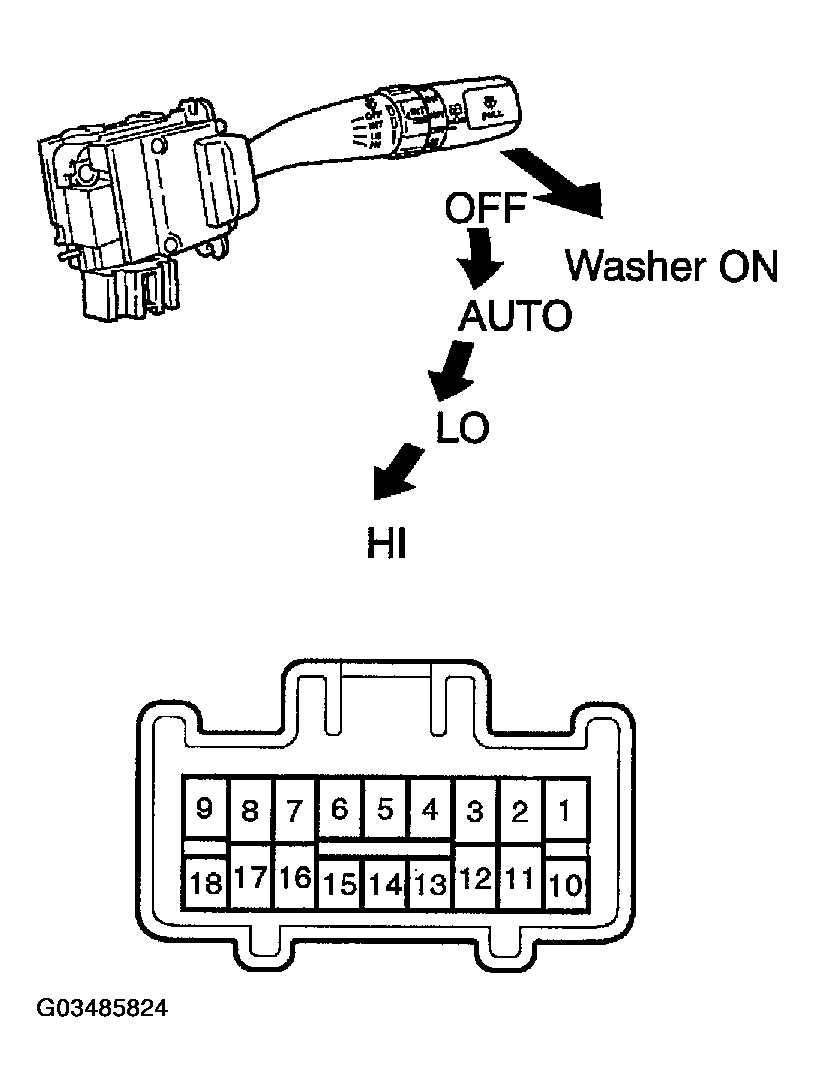

- INSPECT FRONT WIPER AND WASHER SWITCH CONTINUITY FRONT WIPER AND WASHER SWITCH SPECIFIED CONDITION TABLE
Switch position Tester connection Specified condition OFF 7 - 16 Continuity AUTO 7 - 16, 4 - 14 Continuity LO 7 - 17 Continuity HI 8 - 17 Continuity Washer OFF - No Continuity Washer ON 2 - 11 Continuity If continuity is not as specified, replace the switch.
- INSPECT FRONT WIPER AND WASHER SWITCH CIRCUIT
Disconnect the connector from the motor and inspect the connector on the wire harness side, as shown in Fig 2 .
FRONT CONNECTOR TERMINAL SPECIFIED CONDITION TABLETester connection Condition Specified condition 2 - Ground Always Continuity 11 - Ground Ignition switch LOCK or ACC No voltage 11 - Ground Ignition switch ON Battery positive voltage If circuit is not as specified, inspect the circuits connected to other parts.
- INSPECT FRONT WIPER INTERMITTENT OPERATION
- Turn the wiper switch to INT position.
- Turn the intermittent time control switch to FAST position.
- Connect the battery positive (+) lead to terminal 16 and the battery negative (-) lead to terminal 2.
- Connect the voltmeter positive (+) lead to terminal 7 and the voltmeter negative (-) lead to terminal 2, and check that the meter needle indicates battery voltage.

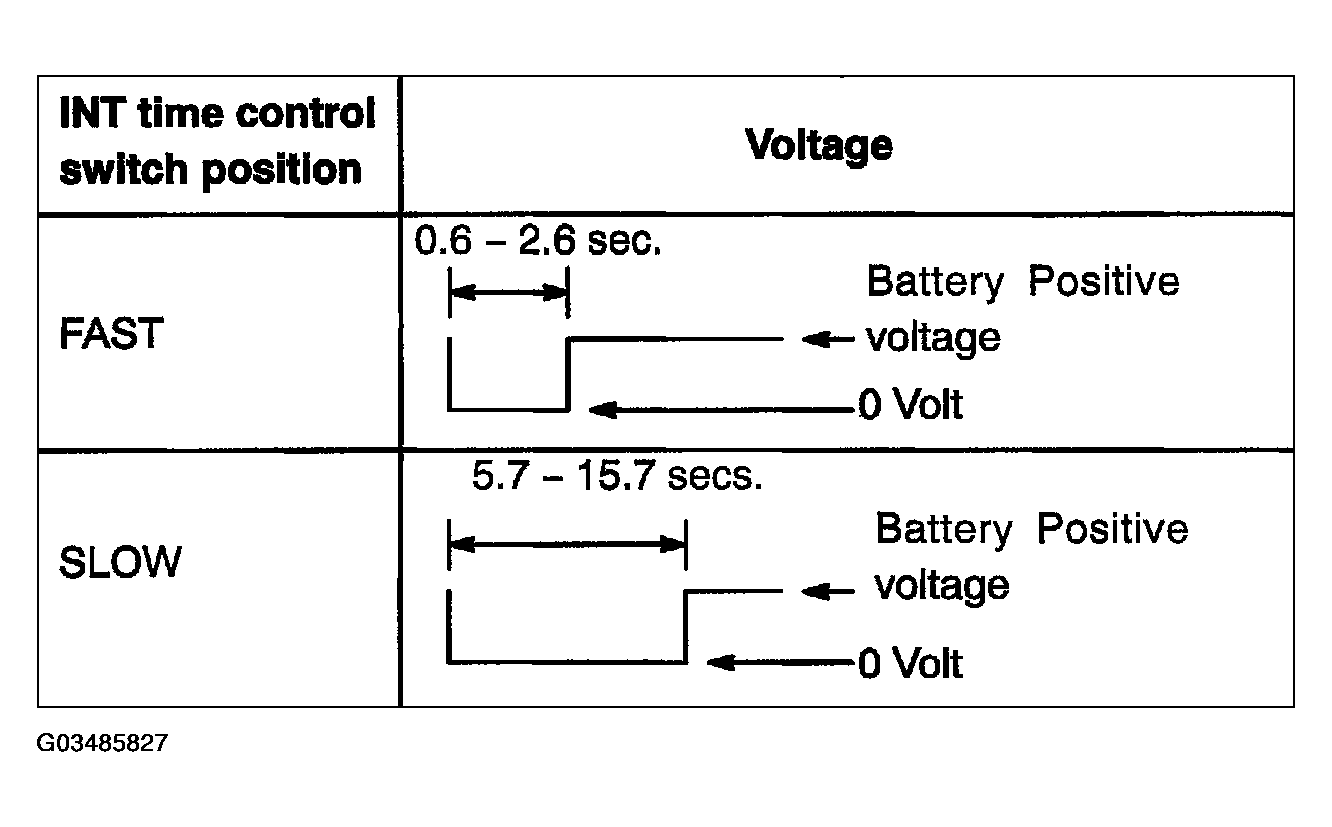

- After connecting terminal 16 to terminal 17, connect to terminal 2 to terminal 17, check the voltage rises from 0 volts to battery voltage within the times as shown in Fig 4
.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
If operation is not as specified, replace the wiper and washer switch.

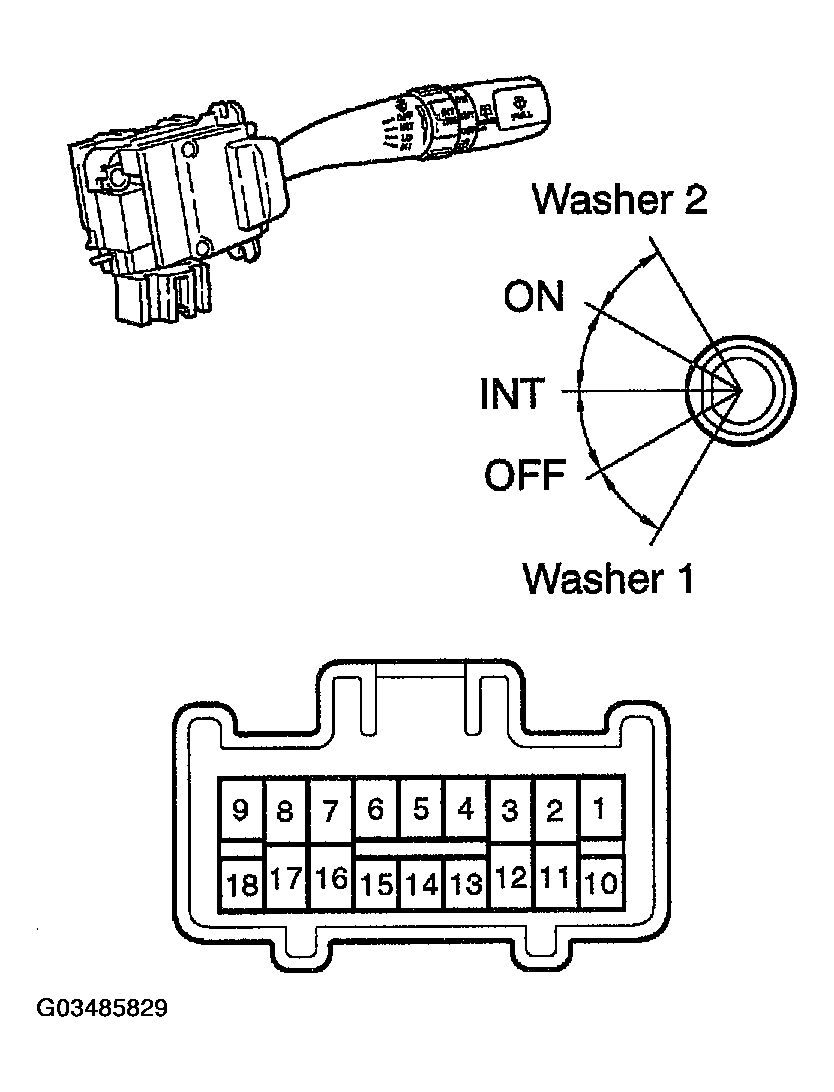

- INSPECT REAR WIPER AND WASHER SWITCH CONTINUITY REAR WIPER AND WASHER SWITCH SPECIFIED CONDITION TABLE
Switch position Tester connection Specified condition Washer 1 2 - 12 Continuity OFF - No Continuity INT 2 - 13 Continuity ON 2 - 10 Continuity Washer 2 2 - 10 - 12 Continuity If continuity is not as specified, replace the switch.
- INSPECT REAR WIPER AND WASHER SWITCH CIRCUIT
Disconnect the connector from the motor and inspect the connector on the wire harness side, as shown in Fig 7 .
REAR CONNECTOR TERMINAL SPECIFIED CONDITION TABLETester connection Condition Specified condition 2 - Ground Always Continuity 12 - Ground Ignition switch ON Battery positive voltage If circuit is not as specified, inspect the circuits connected to other parts.
- Low Speed: INSPECT FRONT WIPER MOTOR OPERATION
Connect the battery positive (+) lead to terminal 1 and the battery negative (-) lead to terminal 5, and check that the motor operates at low speed.
If operation is not as specified, replace the motor.
- High speed: INSPECT FRONT WIPER MOTOR OPERATION
Connect the battery positive (+) lead to terminal 4 and the battery negative (-) lead to terminal 5, and check that the motor operates at high speed.
If operation is not as specified, replace the motor.
- Stopping at Stop Position: INSPECT FRONT WIPER MOTOR OPERATION
- Operate the motor at low speed and stop the motor operation anywhere except at the stop position by disconnecting the battery positive (+) lead from terminal 1.
- Connect terminals 1 and 3.
- Connect the battery positive (+) lead to terminal 2 and the battery negative (-) lead to terminal 5, and check that the motor stops running at the stop position after the motor operates again.
If operation is not as specified, replace the motor.
- Connector disconnected: INSPECT FRONT WIPER MOTOR CIRCUIT
Disconnect the connector from the motor and inspect the connector on the wire harness side, as shown in Fig 12 .
FRONT WIPER MOTOR SPECIFIED CONDITION TABLETester connection Condition Specified condition 5 - Ground Always Continuity 2 - Ground Ignition switch LOCK or ACC No voltage 2 - Ground Ignition switch ON Battery positive voltage If circuit is not as specified, inspect the circuits connected to other parts.
- Low Speed: INSPECT REAR WIPER MOTOR OPERATION
Connect the battery positive (+) lead to terminal 3 and the battery negative (-) lead to terminal 2, and check that the motor operates at low speed.
If operation is not as specified, replace the motor.
- Stopping at Stop Position: INSPECT REAR WIPER MOTOR OPERATION
- Operate the motor at low speed and stop the motor operation anywhere except at the stop position by disconnecting positive (+) lead from terminal 3.
- Connect terminals 3 and 4.
- Connect the battery positive (+) lead to terminal 1 and the battery negative (-) lead to terminal 2, and check that the motor stops running at the stop position after the motor operates again.
If operation is not as specified, replace the motor.
- Connector disconnected: INSPECT REAR WIPER MOTOR CIRCUIT
Disconnect the connector from the motor and inspect the connector on the wire harness side, as shown in Fig 16 .
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REAR WIPER MOTOR SPECIFIED CONDITION TABLETester connection Condition Specified condition 1 - Ground Ignition switch OFF or ACC No voltage 1 - Ground Ignition switch ON Battery positive voltage 2 - Ground Always Continuity 3 - 4 Always Continuity If circuit is not as specified, inspect the circuits connected to other parts.
- INSPECT FRONT WASHER MOTOR OPERATION
Connect the battery positive (+) lead to terminal 2 and the battery negative (-) lead to terminal 1, check that the motor operates.
NOTE: These tests must be performed quickly (within 20 seconds) to prevent the coil from burning out.If operation is not as specified, replace the motor.
- Connector disconnected: INSPECT FRONT WASHER MOTOR CIRCUIT
Disconnect the connector from the motor and inspect the connector on the wire harness side, as shown in Fig 18 .
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
FRONT WASHER MOTOR SPECIFIED CONDITION TABLETester connection Condition Specified condition 2 - Ground Ignition switch ON Battery positive voltage If circuit is not as specified, inspect the power source and wire harness.
- INSPECT REAR WASHER MOTOR OPERATION
Connect the battery positive (+) lead to terminal 2 and the battery negative (-) lead to terminal 1, check that the motor operates.
NOTE: These tests must be performed quickly (within 20 seconds) to prevent the coil from burning out.If operation is not as specified, replace the motor.
- Connector disconnected: INSPECT REAR WASHER MOTOR CIRCUIT
Disconnect the connector from the motor and inspect the connector on the wire harness side, as shown in Fig 20 .
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REAR WASHER MOTOR SPECIFIED CONDITION TABLETester connection Condition Specified condition 2 - Ground Ignition switch ON Battery positive voltage If circuit is not as specified, inspect the power source, the wire harness and the wiper switch.
- INSPECT REAR WIPER RELAY OPERATION (See PROBLEM SYMPTOMS TABLE )
- INSPECT REAR WIPER RELAY INTERMITTENT OPERATION (See PROBLEM SYMPTOMS TABLE )
