Section 575 (Roof Headlining): Removal

WARNING: This page is about a different car, the 2004 Lexus LX 470. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE ROOF HEADLINING REAR TRIM

    Using a screwdriver, remove the roof headlining rear trim.

    HINT:

    Tape up the screwdriver tip before use.

  2. REMOVE REAR NO. 2 SEATS (See  DISASSEMBLY  )
    Fig 1: Removing Roof Headlining Rear Trim
    G02994475Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE REAR MAT SET PLATE
    1. Remove the 5 screws.
    2. Using a screwdriver, remove the rear mat set plate.

    HINT:

    Tape up the screwdriver tip before use.

    Fig 2: Removing Rear Mat Set Plate
    G02994476Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE NO. 3 REAR SEAT PROTECTOR

    Remove the 4 screws and the No. 3 rear seat protectors.

  5. REMOVE NO. 3 SEAT FRONT BRACKET COVER

    Remove the 2 screws and the No. 3 seat front bracket covers.

  6. REMOVE NO. 3 SEAT BRACKET SUPPORT COVERS
  7. REMOVE CRS TETHER ANCHOR BRACKET
    1. Remove the 3 CRS tether anchor bracket covers.
    2. Remove the 3 CRS tether anchor brackets.

      Torque: 27 N.m (275 kgf.cm, 20 ft.lbf)

  8. REMOVE REAR FLOOR CARPET
  9. REMOVE REAR NO. 2 SEAT OUTER BELT FLOOR ANCHOR

    Torque: 42 N.m (430 kgf.cm, 31 ft.lbf)

  10. REMOVE REAR NO. 1 SEAT OUTER BELT FLOOR ANCHOR

    Torque: 42 N.m (430 kgf.cm, 31 ft.lbf)

  11. REMOVE REAR DOOR SCUFF PLATES
  12. REMOVE REAR DOOR OPENING TRIMS
    Fig 3: Removing Screws & Rear Seat Protectors
    G02994477Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE QUARTER TRIM PANEL LH
    1. Remove the quarter trim jack cover.
    2. Using a clip remover, remove the 2 clips.
    3. Remove the quarter trim panel LH, then disconnect the connector.

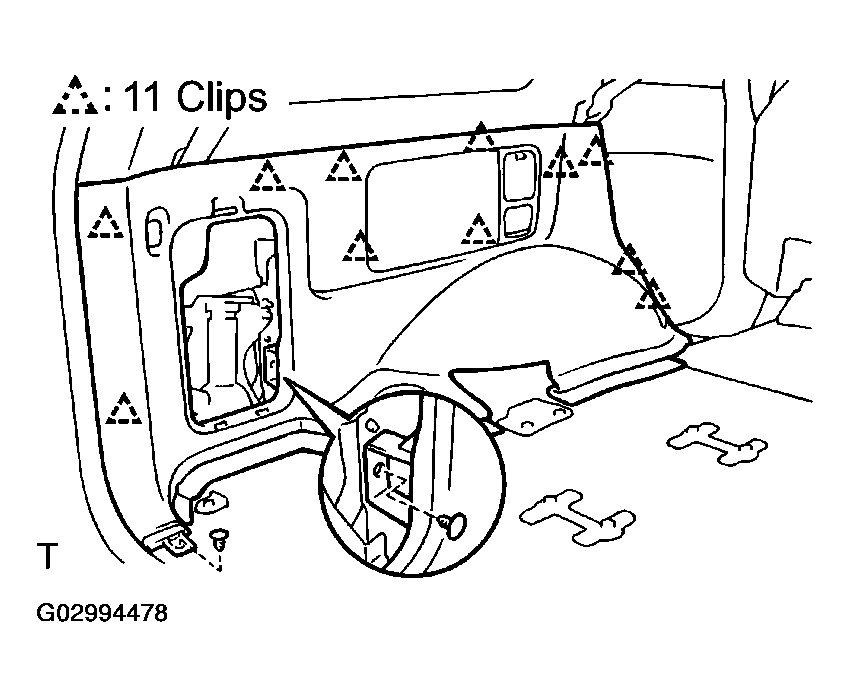

    Fig 4: Removing Clips
    G02994478Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE QUARTER TRIM PANEL RH
    1. Using a clip remover, remove the clip.
    2. Remove the quarter trim panel RH.
  15. REMOVE REAR NO. 2 SEAT OUTER BELT SHOULDER ANCHORS

    Torque: 42 N.m (430 kgf.cm, 31 ft.lbf)

  16. REMOVE REAR NO. 1 SEAT OUTER BELT SHOULDER ANCHORS

    Torque: 42 N.m (430 kgf.cm, 31 ft.lbf)

    Fig 5: Removing Quarter Trim Panel RH
    G02994479Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. REMOVE UPPER ROOF SIDE INNER GARNISH
    1. Using a screwdriver, remove the 2 assist grip plugs, then remove the 2 screws and the assist grip.

      HINT:

      Tape up the screwdriver tip before use.

    2. Using a clip remover, remove the clip.
    3. Using a screwdriver, remove the upper roof side inner garnish.

      HINT:

      Tape up the screwdriver tip before use.

    4. Use the same manner described above to the other side.

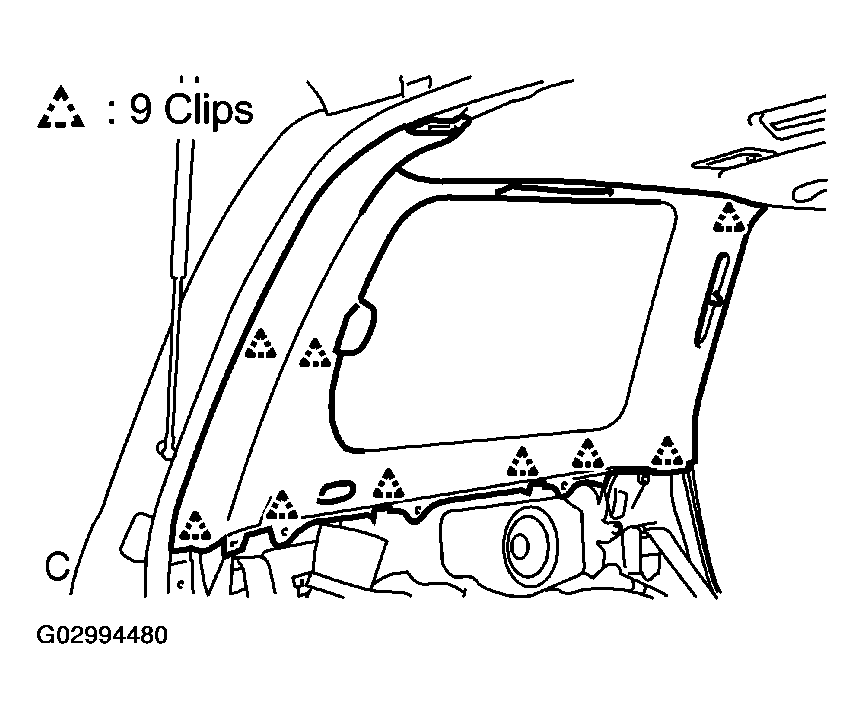

    Fig 6: Removing Upper Roof Side Inner Garnish
    G02994480Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE FRONT DOOR SCUFF PLATES
  19. REMOVE COWL SIDE TRIMS
  20. REMOVE FRONT DOOR OPENING TRIMS
  21. REMOVE ASSIST GRIPS
    1. Using a screwdriver, remove the 6 assist grip plugs, then remove the 6 screws and the 3 assist grips.

      HINT:

      Tape up the screwdriver tip before use.

    2. Use the same manner described above to the other side.
  22. REMOVE FRONT PILLAR GARNISH
    1. Using a screwdriver, remove the front pillar garnish.

      HINT:

      Tape up the screwdriver tip before use.

    2. Use the same manner described above to the other side.
    Fig 7: Removing Front Pillar Garnish
    G02994481Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. REMOVE CENTER PILLAR LOWER GARNISH
    1. Using a screwdriver, remove the center pillar garnish cover.

      HINT:

      Tape up the screwdriver tip before use.

      Fig 8: Removing Center Pillar Garnish Cover
      G02994482Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a screwdriver, remove the center pillar lower garnish as shown in Fig 9 .

      HINT:

      Tape up the screwdriver tip before use.

    3. Use the same manner described above to the other side.
    Fig 9: Removing Center Pillar Lower Garnish
    G02994483Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  24. REMOVE CENTER PILLAR GARNISH
    1. Using a screwdriver, remove the seat belt anchor cover cap.

      HINT:

      Tape up the screwdriver tip before use.

    2. Remove the bolt and the front seat outer belt shoulder anchor.

      Torque: 42 N.m (430 kgf.cm, 31 ft.lbf)

      Fig 10: Removing Seat Belt Anchor Cover Cap
      G02994484Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using a clip remover, remove the clip.
    4. Using a screwdriver, remove the center pillar garnish.

      HINT:

      Tape up the screwdriver tip before use.

    5. Use the same manner described above to the other side.
  25. REMOVE SUN VISORS
    1. Using a screwdriver, remove the 2 caps.

      HINT:

      Tape up the screwdriver tip before use.

    2. Remove the 4 screws, then disconnect the connectors.
    3. Remove the 2 sun visors.
  26. REMOVE DOUBLE VISORS

    Remove the 4 screws and the 2 double visors.

  27. REMOVE HOLDERS

    Remove the 2 screws and the 2 holders.

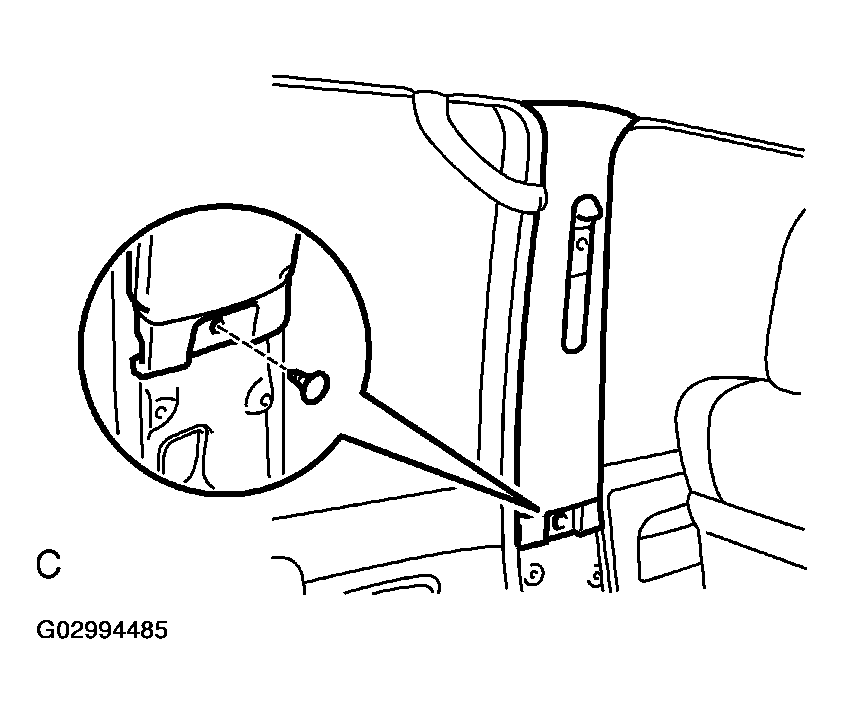

    Fig 11: Removing Clip
    G02994485Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  28. REMOVE DOME LIGHT
    1. Using a screwdriver, remove the lens as shown in Fig 12 .

      HINT:

      Tape up the screwdriver tip before use.

    2. Remove the 4 screws and the dome light, then disconnect the connector.
    Fig 12: Removing Lens
    G02994486Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  29. REMOVE MAP LAMP
    1. Using a screwdriver, remove the lens as shown in Fig 13 .

      HINT:

      Tape up the screwdriver tip before use.

    2. Remove the 4 screws and the map lamp, then disconnect the connector.
    Fig 13: Removing Map Lamp
    G02994487Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  30. REMOVE OVERHEAD CONSOLE BOX
    1. Remove the bolt.
    2. Using a screwdriver, remove the overhead console box, then disconnect the connector.

    HINT:

    Tape up the screwdriver tip before use.

  31. REMOVE ASSIST GRIPS
  32. REMOVE CENTER ASSIST GRIPS
    Fig 14: Removing Overhead Console Box
    G02994488Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  33. w/ LEXUS Link System:

    REMOVE OVERHEAD CONSOLE BOX

    1. Using a screwdriver, open the LEXUS link system switch assembly.

      HINT:

      Tape up the screwdriver tip before use.

    2. Remove the bolt.
    3. Using a screwdriver, remove the overhead console box, then disconnect the connector.

    HINT:

    Tape up the screwdriver tip before use.

    Fig 15: Opening Lexus Link System Switch Assembly
    G02994489Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  34. REMOVE REAR COOLER CONTROL ASSEMBLY

    Using a screwdriver, remove the rear cooler control assembly, then disconnect the connector.

    HINT:

    Tape up the screwdriver tip before use.

  35. REMOVE REAR ROOM TEMPERATURE SENSOR

    Using a screwdriver, remove the rear room temperature sensor, then disconnect the connector.

    HINT:

    Tape up the screwdriver tip before use.

    Fig 16: Removing Rear Room Temperature Sensor
    G02994490Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  36. REMOVE ROOF HEADLINING

    Using a clip remover, remove the 3 clips and the roof headlining.

  37. REMOVE ADJUSTABLE ANCHOR

    Remove the 2 bolts and the adjustable anchor.

  38. REMOVE CENTER ASSIST GRIPS
  39. REMOVE AIR OUTLET GRILLE

    Remove the 4 screws and the air outlet grille.

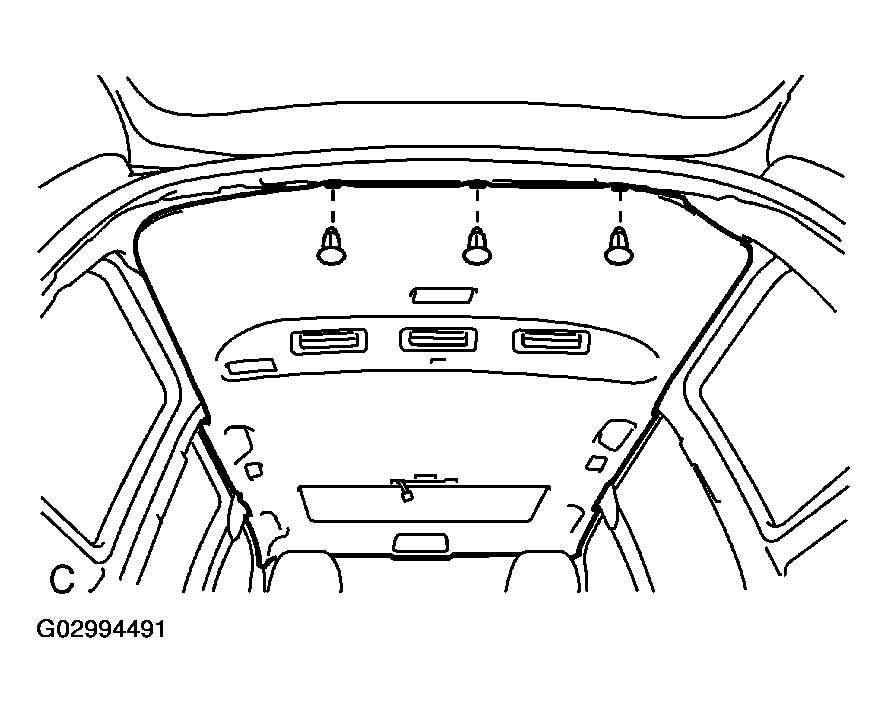

    Fig 17: Removing Clips & Roof Headlining
    G02994491Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
