Oil Pump: Installation

WARNING: This page is about a different car, the 2002 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.
  1. Ensure sealing surfaces are clean. Install NEW "O" ring on cylinder block. Apply a continuous bead of silicone sealant on oil pump body sealing surface, inside of bolt holes.
  2. Install oil pump. Ensure teeth on drive rotor engage with teeth on crankshaft. Install bolts. DO NOT reuse stud bolt. Ensure proper bolts are installed in specified areas. See Fig 1. Tighten all bolts to specification. See TORQUE SPECIFICATIONS .
  3. To install remaining components, reverse removal procedure. Ensure proper bolts are installed in specified areas. See Fig 2 and Fig 3 . Ensure proper oil pan installation procedure is used. See OIL PAN  under REMOVAL & INSTALLATION. Fill engine with oil.

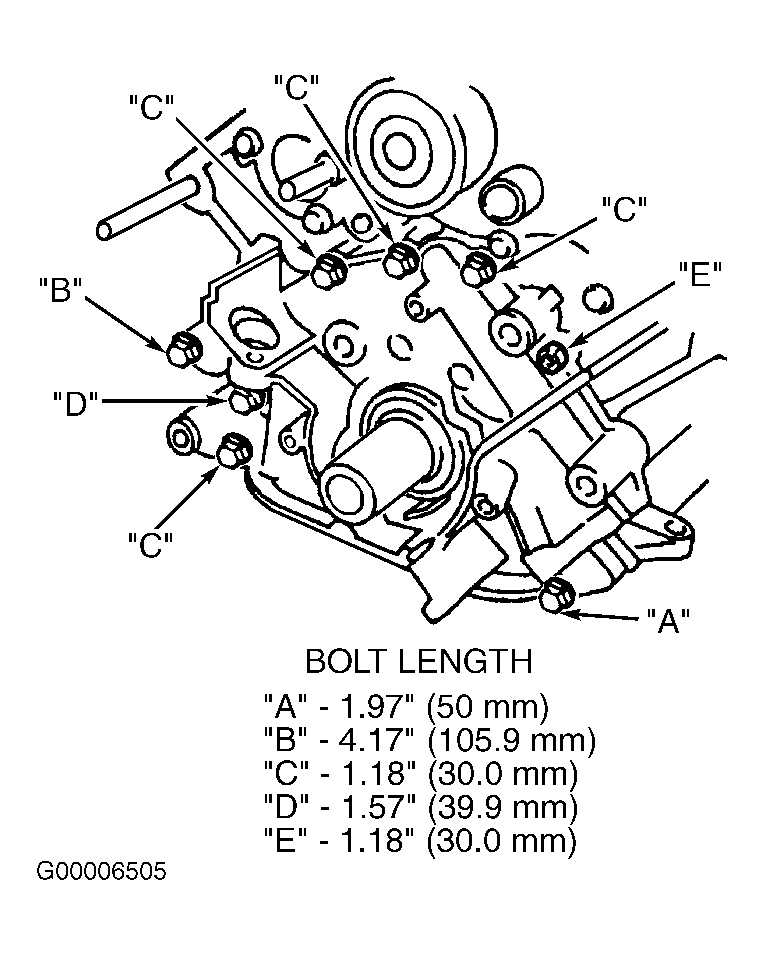

Fig 1: Identifying Oil Pump Bolt Location
G00006505Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying No. 1 Drive Belt Idler Pulley Bolts Lengths
G00247179Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Identifying Suspension Member-To-Body Bolts Tightening Sequence
G00247177Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
