Component Locations
WARNING: This page is about a different car, the 2003 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
If the wire harness used in the SRS is damaged, replace the whole wire harness assembly.

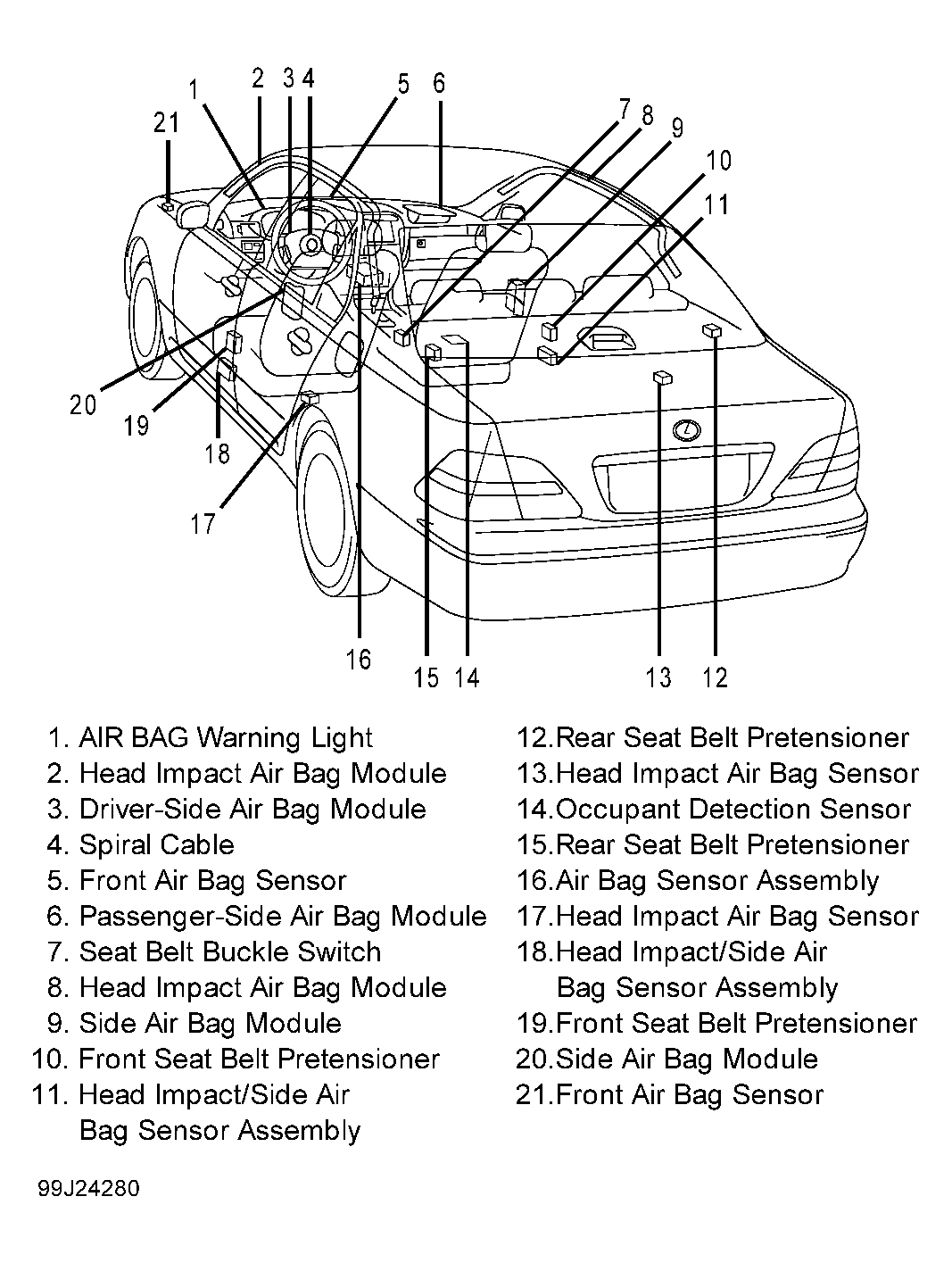

Refer to illustration for component locations. See Fig 1.
