Home › Lexus › 2003 › SC 430 › Repair and Diagnosis › Restraints › Restraints Control Systems › Seat Belt › Front Seat Belt With PRETENSIONER › Components

Front Seat Belt With PRETENSIONER: Components

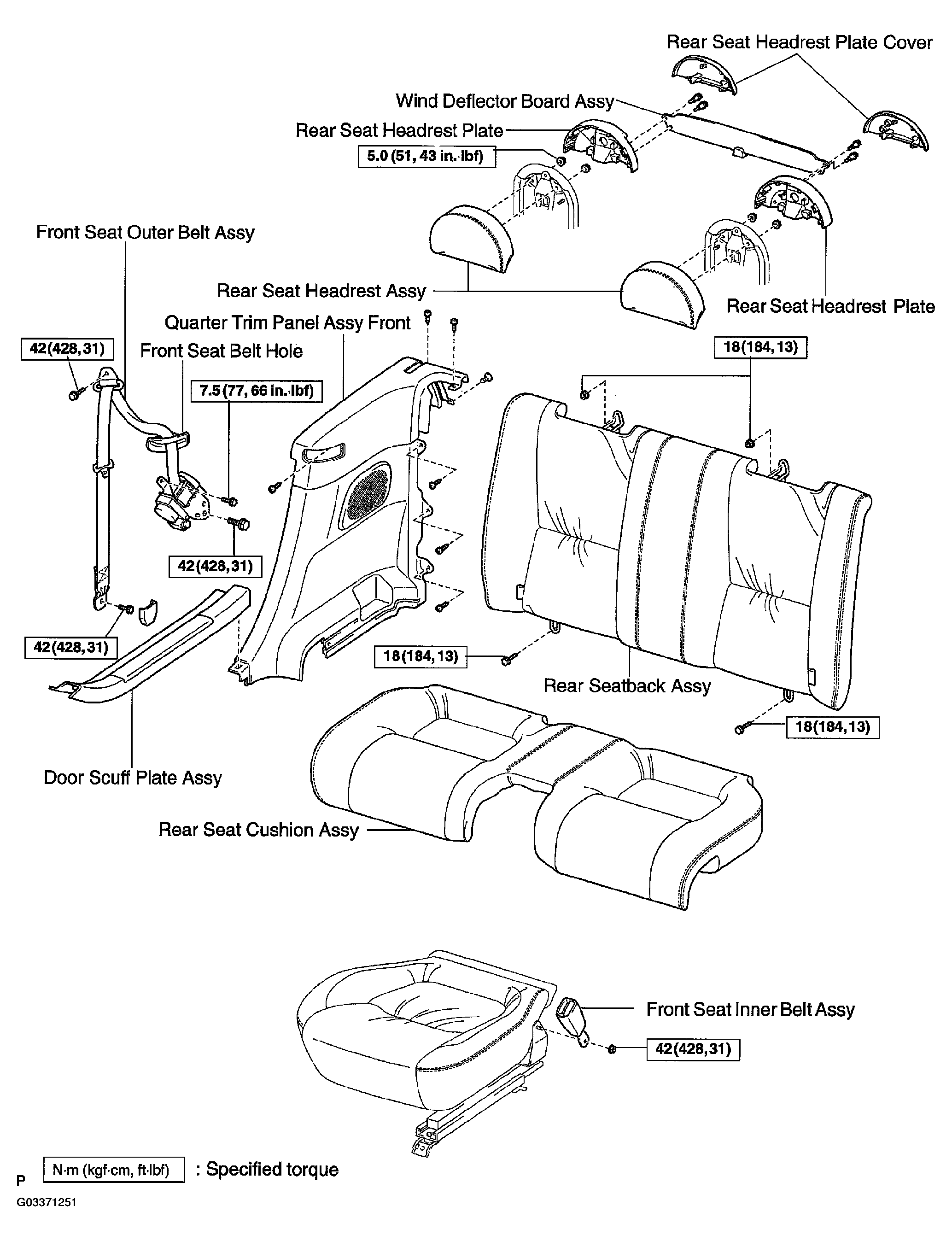

Fig 1: Identifying Front Seat Belt Components
G03371251Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
