Audio & Visual System: Components

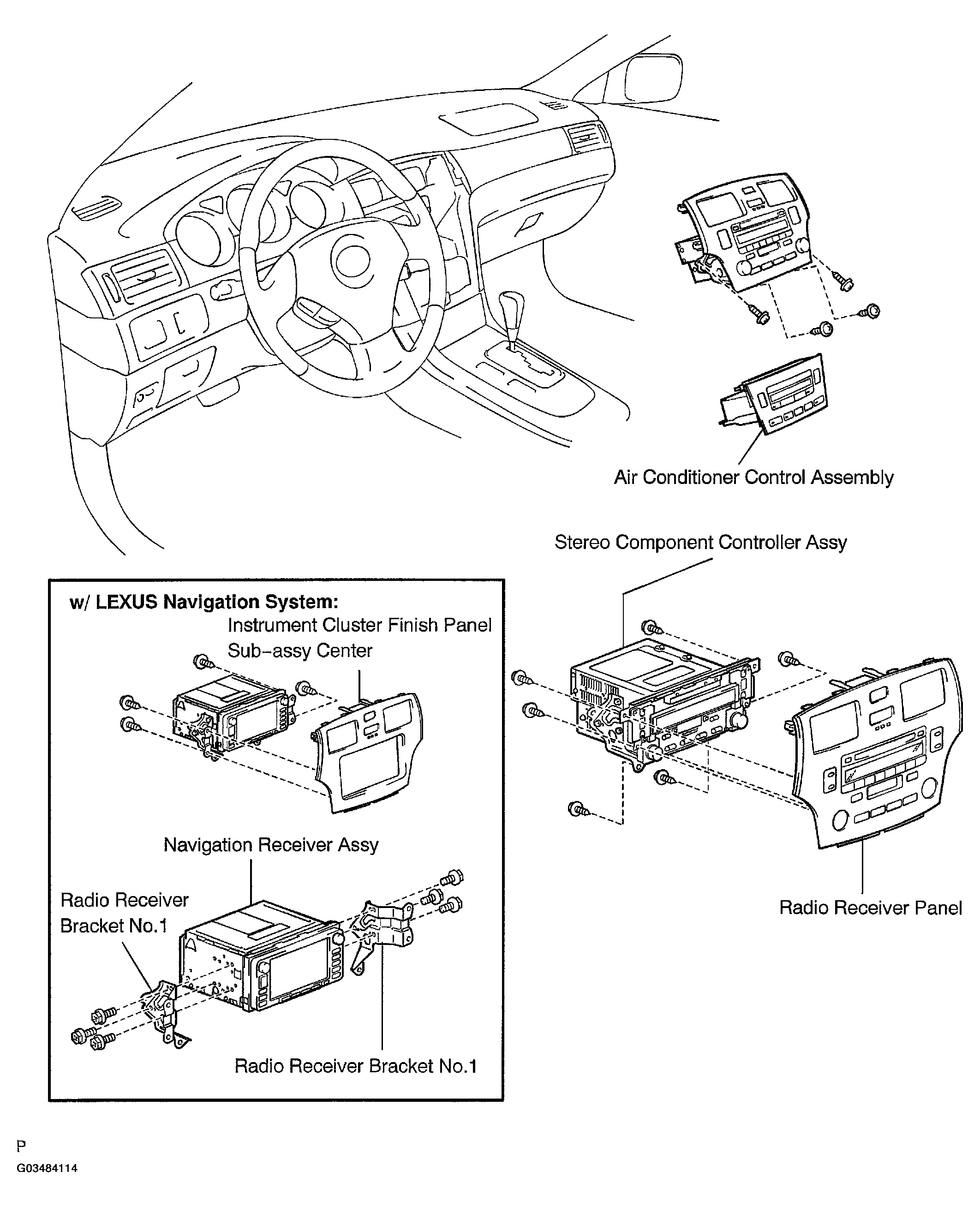

Fig 1: Identifying Audio & Visual System Component Locations (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

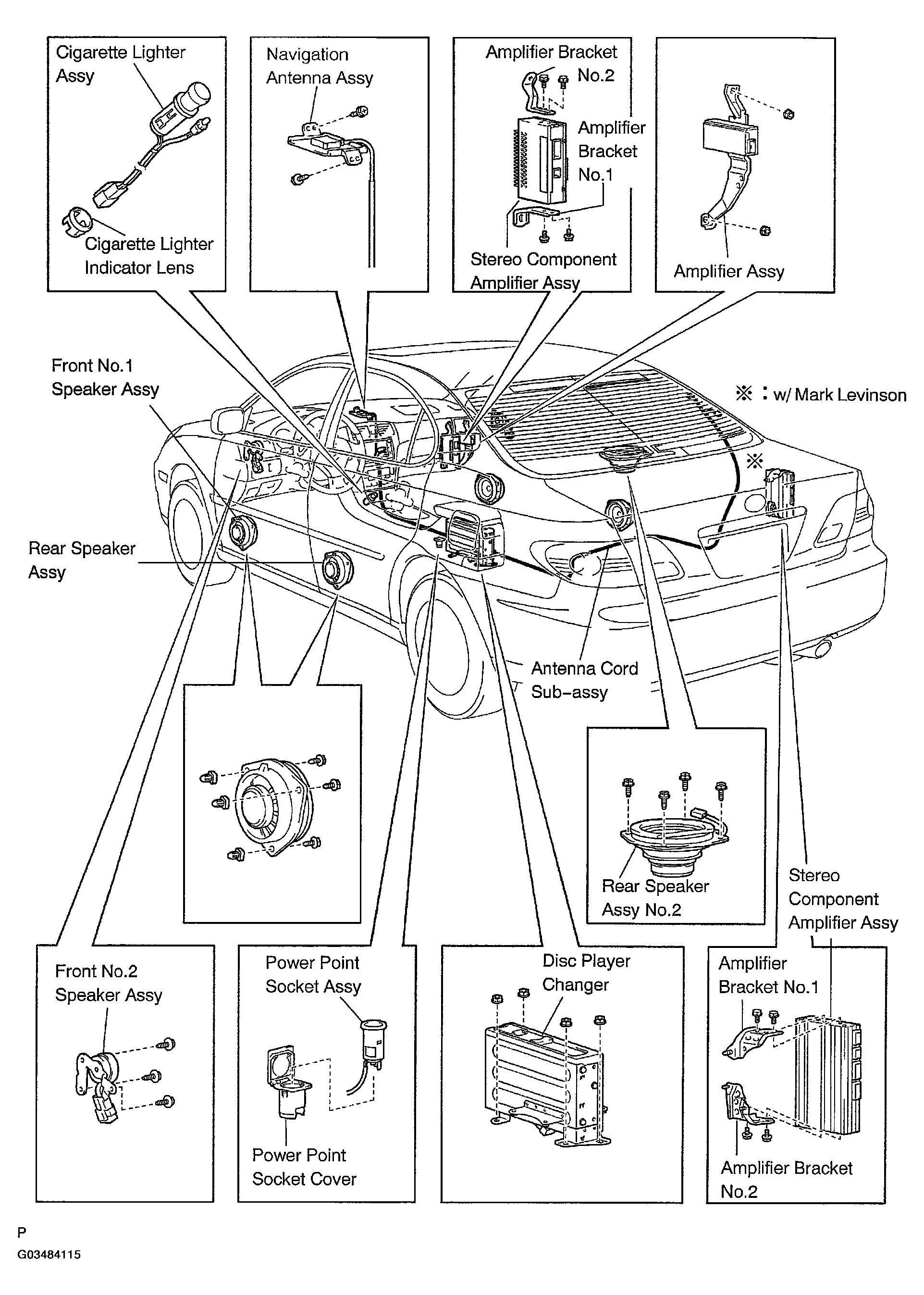

Fig 2: Identifying Audio & Visual System Component Locations (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
