Rear Door: Components

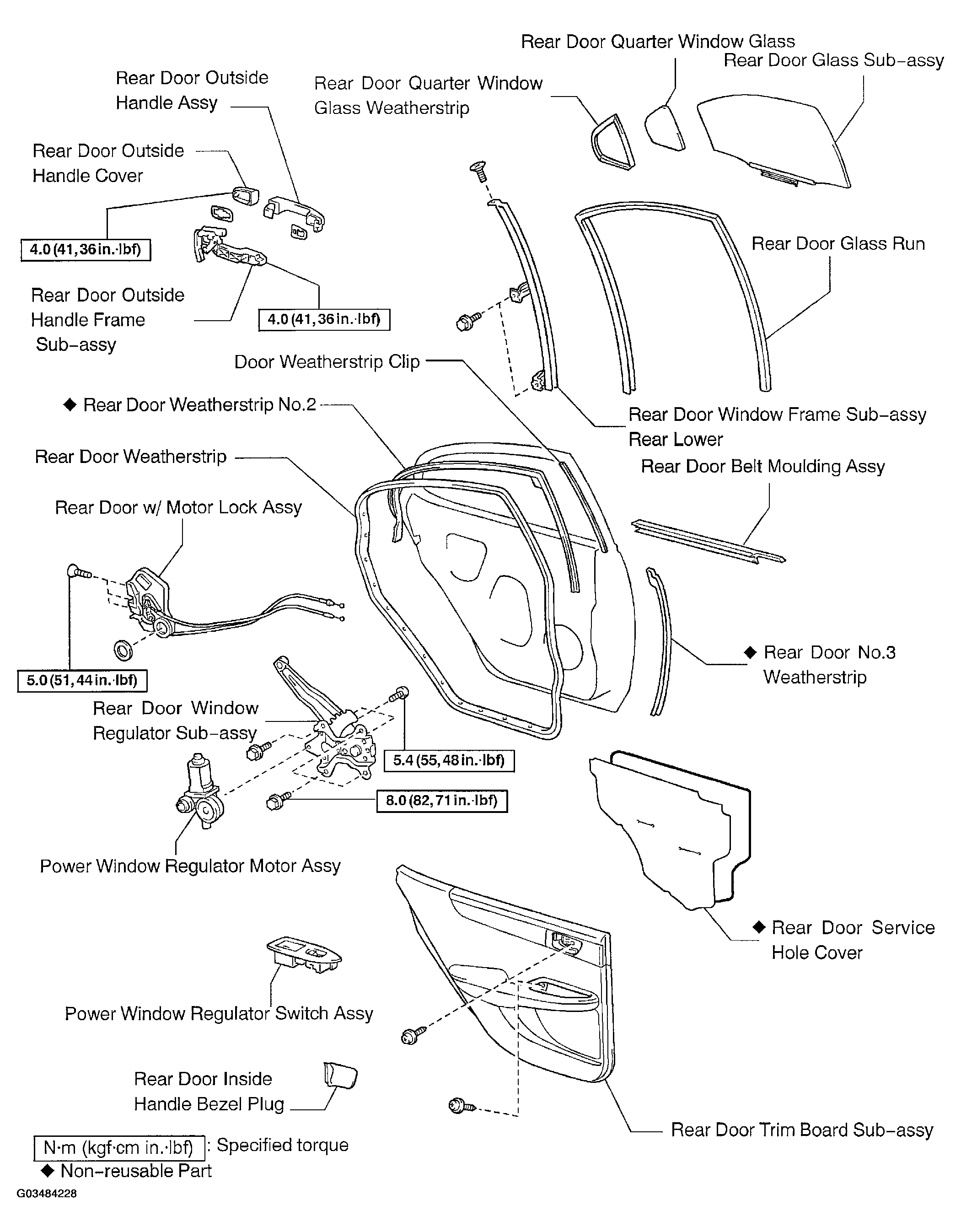

Fig 1: Exploded View Of Rear Door Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
