Power Window Control System - Diagnostics: Location

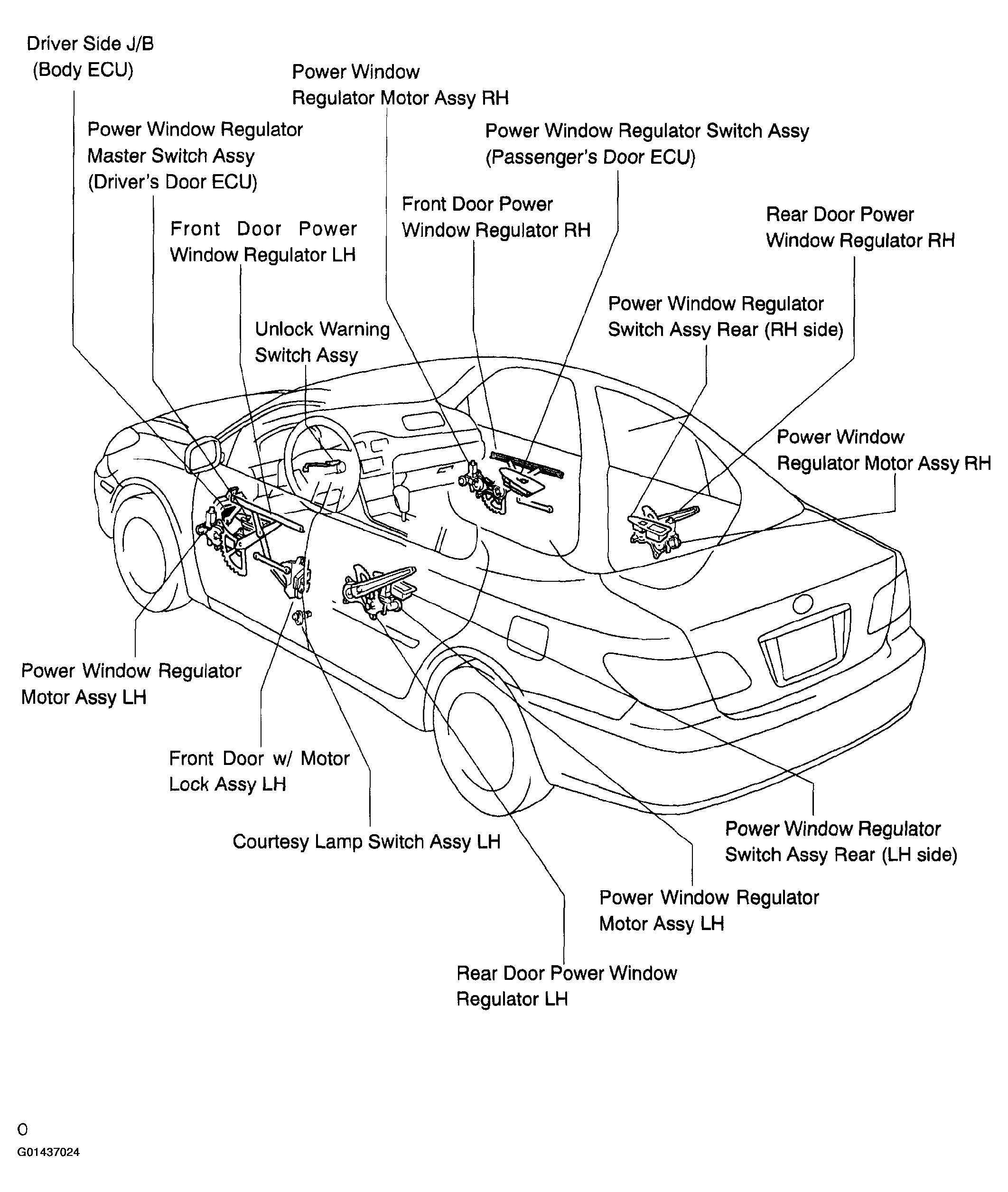

Fig 1: Locating Power Window Control System Components
G01437024Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
