Horn System: Location

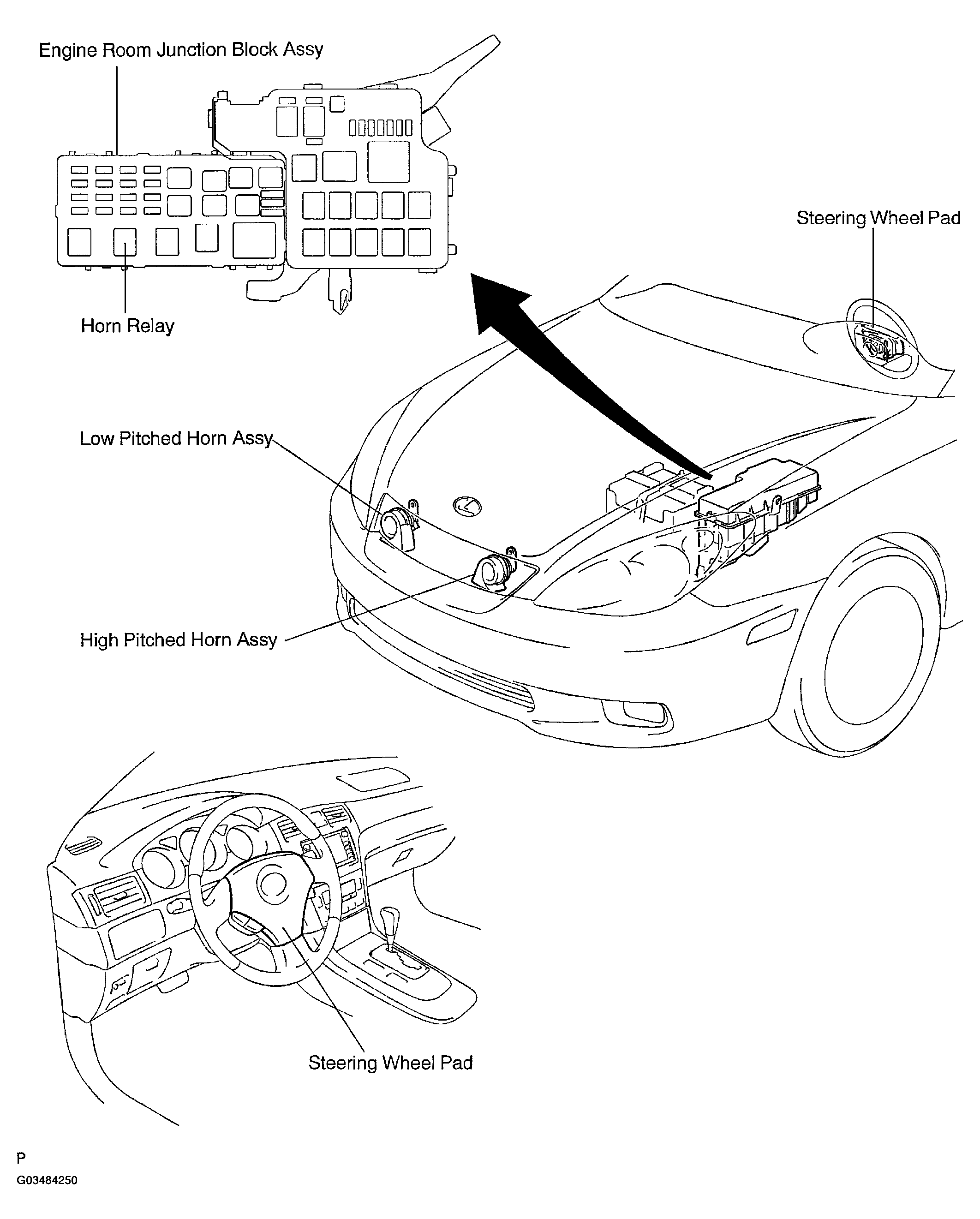

Fig 1: Identifying Horn System Location
G03484250Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
