Exhaust Pipe ASSY: Components

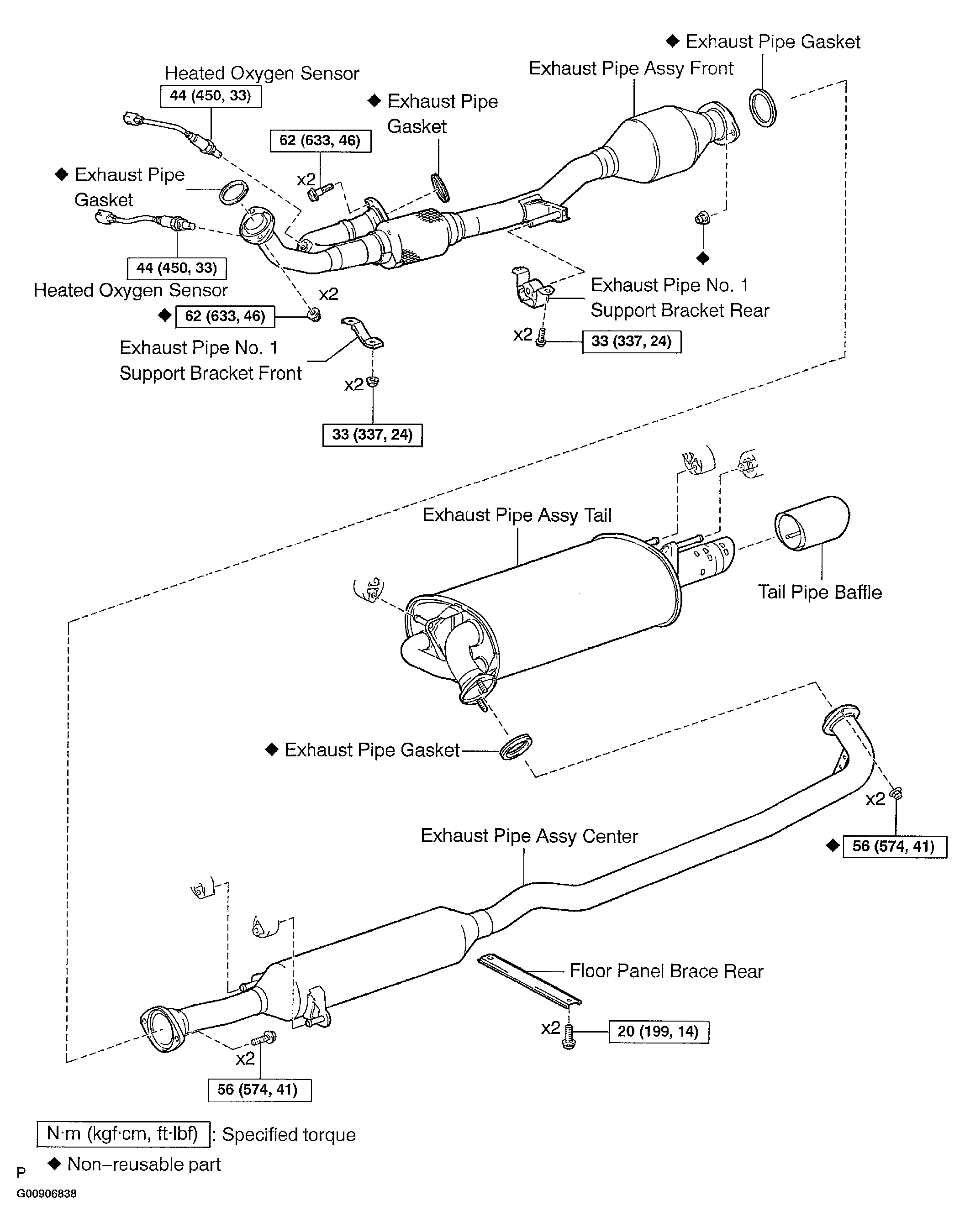

Fig 1: Identifying Exhaust Pipe Assy Components
G00906838Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
