Engine Control System (Service Specifications)
›
Engine Control System
›
Torque Specification
Torque Specification

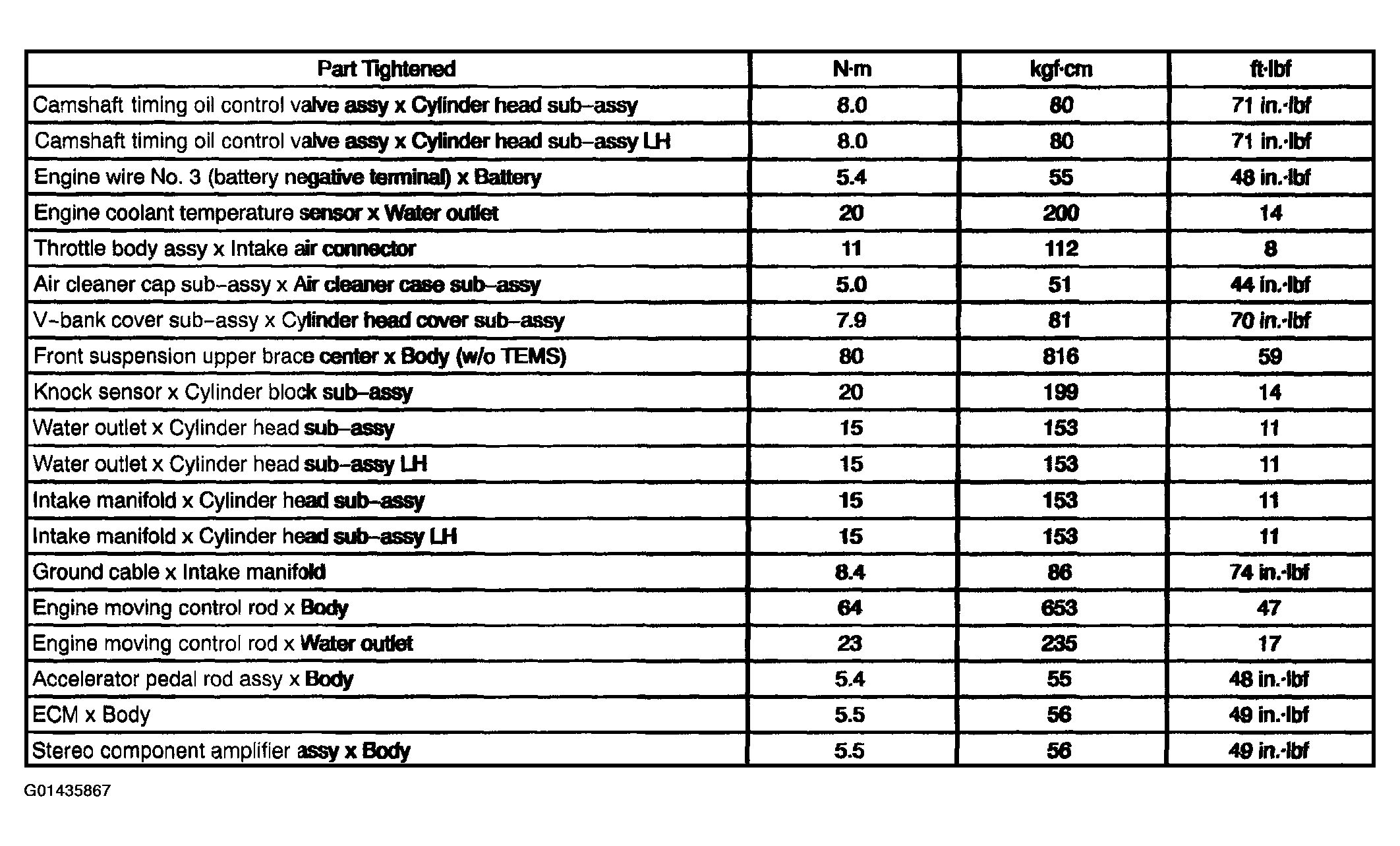

Fig 1: Torque Specification Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
