Engine Control System - Diagnosis
›
ACIS Control Circuit
›
Wiring Diagram
ACIS Control Circuit: Wiring Diagram

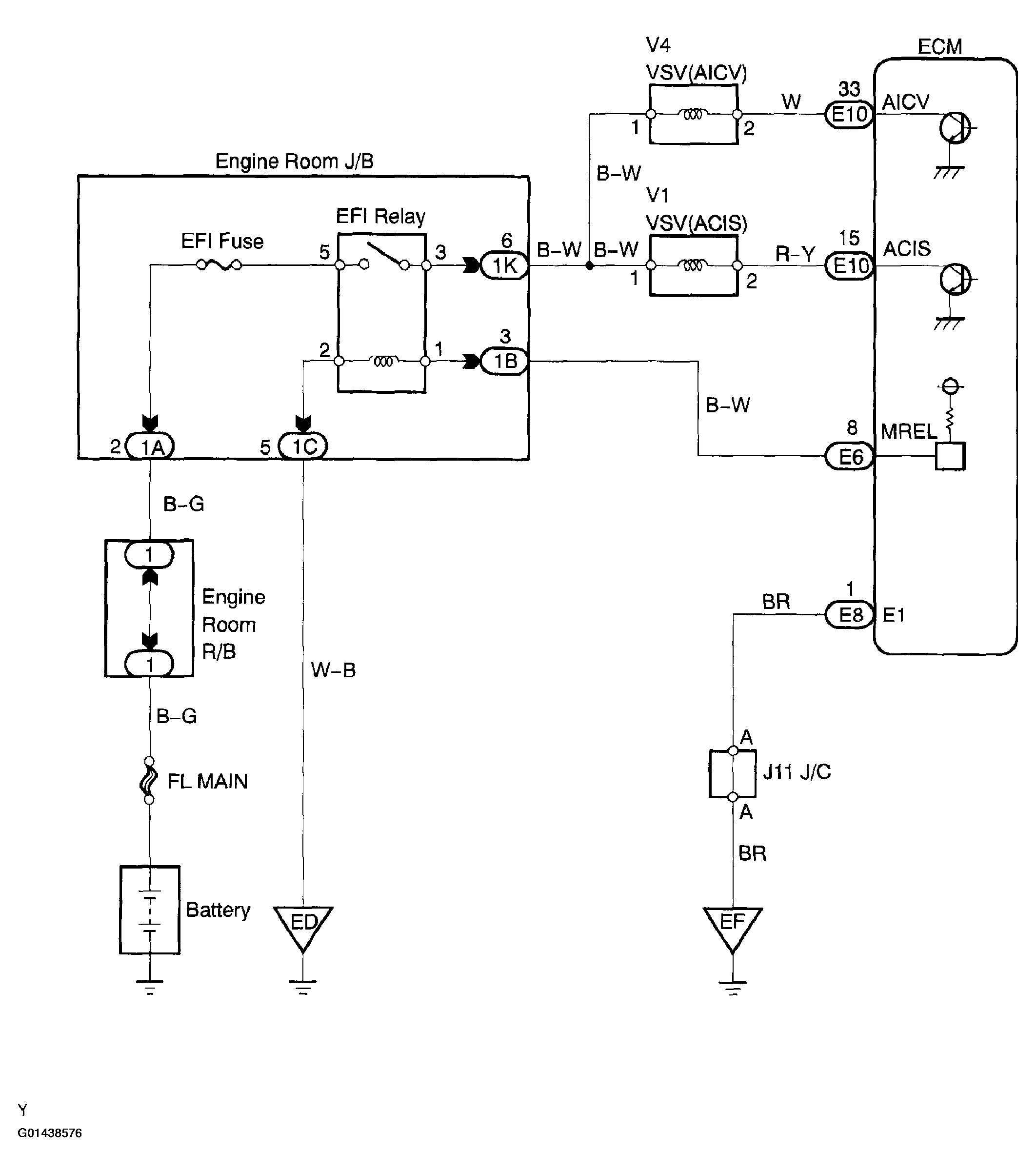

Fig 1: Wiring Diagram - ACIS Control Circuit
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
