Engine Control System - Diagnosis
›
DTC P0505: Idle Air Control System
›
Typical Malfunction Thresholds
›
IAC functional check:
IAC functional check:

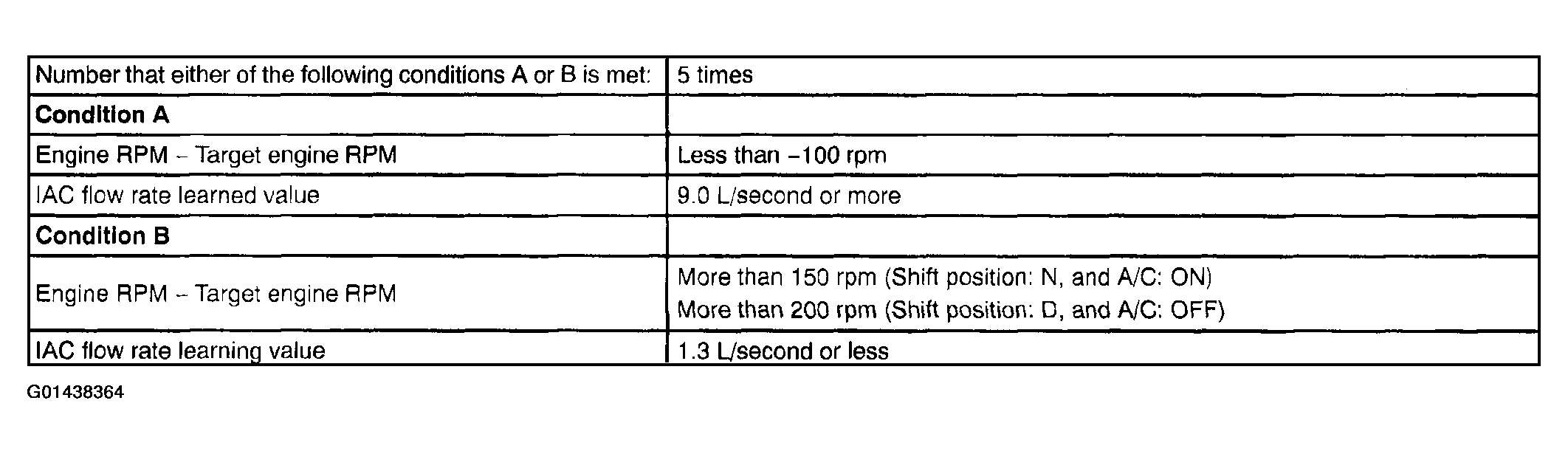

Fig 1: IAC Functional Check Typical Malfunction Thresholds Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
