DTC P2118: Throttle Actuator Control Motor Current Range/Performance
›
Wiring Diagram
DTC P2118: Throttle Actuator Control Motor Current Range/Performance: Wiring Diagram

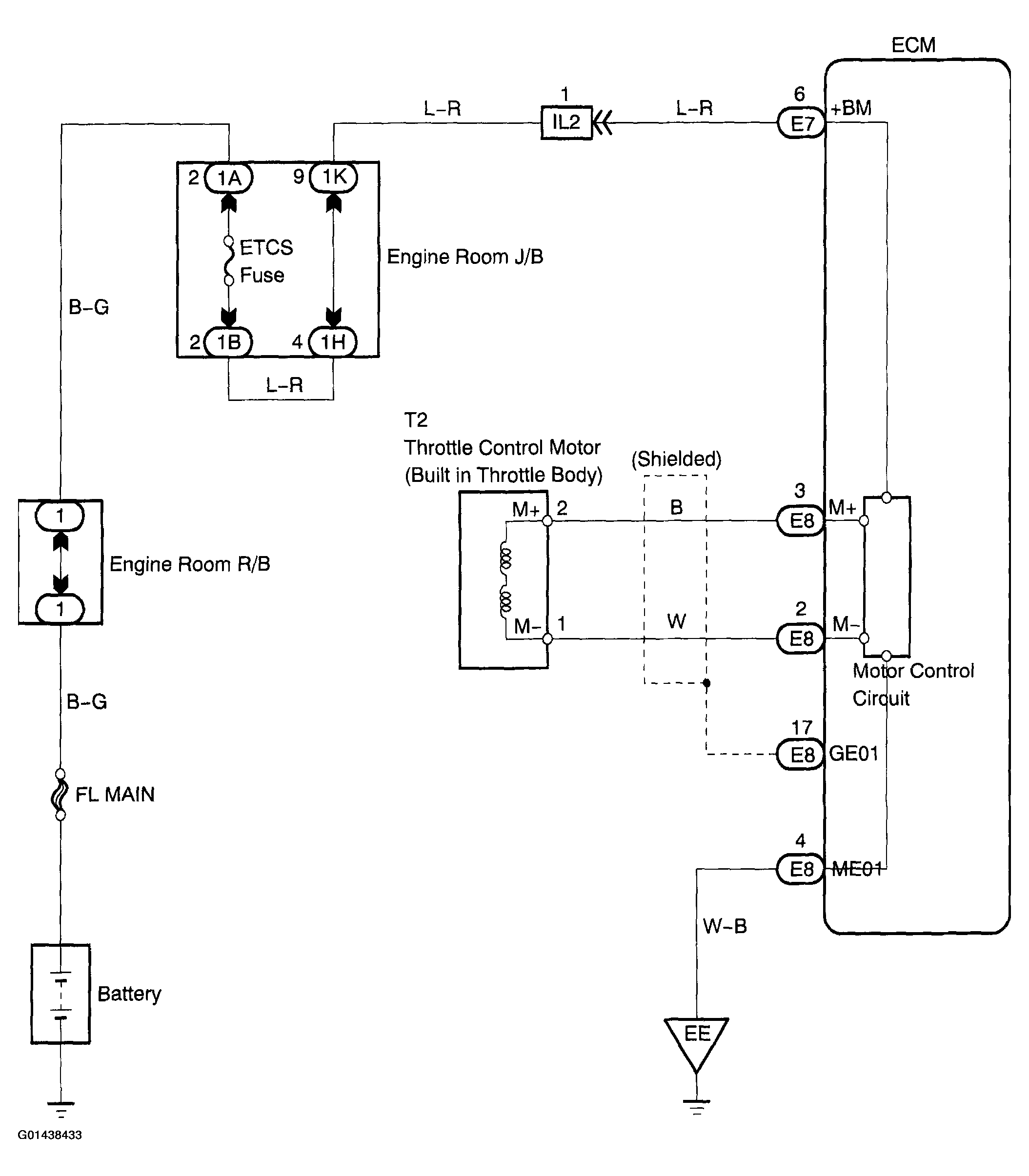

Fig 1: Wiring Diagram - Throttle Actuator Control Motor
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
