Engine Control System - Diagnosis
›
Fuel Pump Control Circuit
›
Wiring Diagram

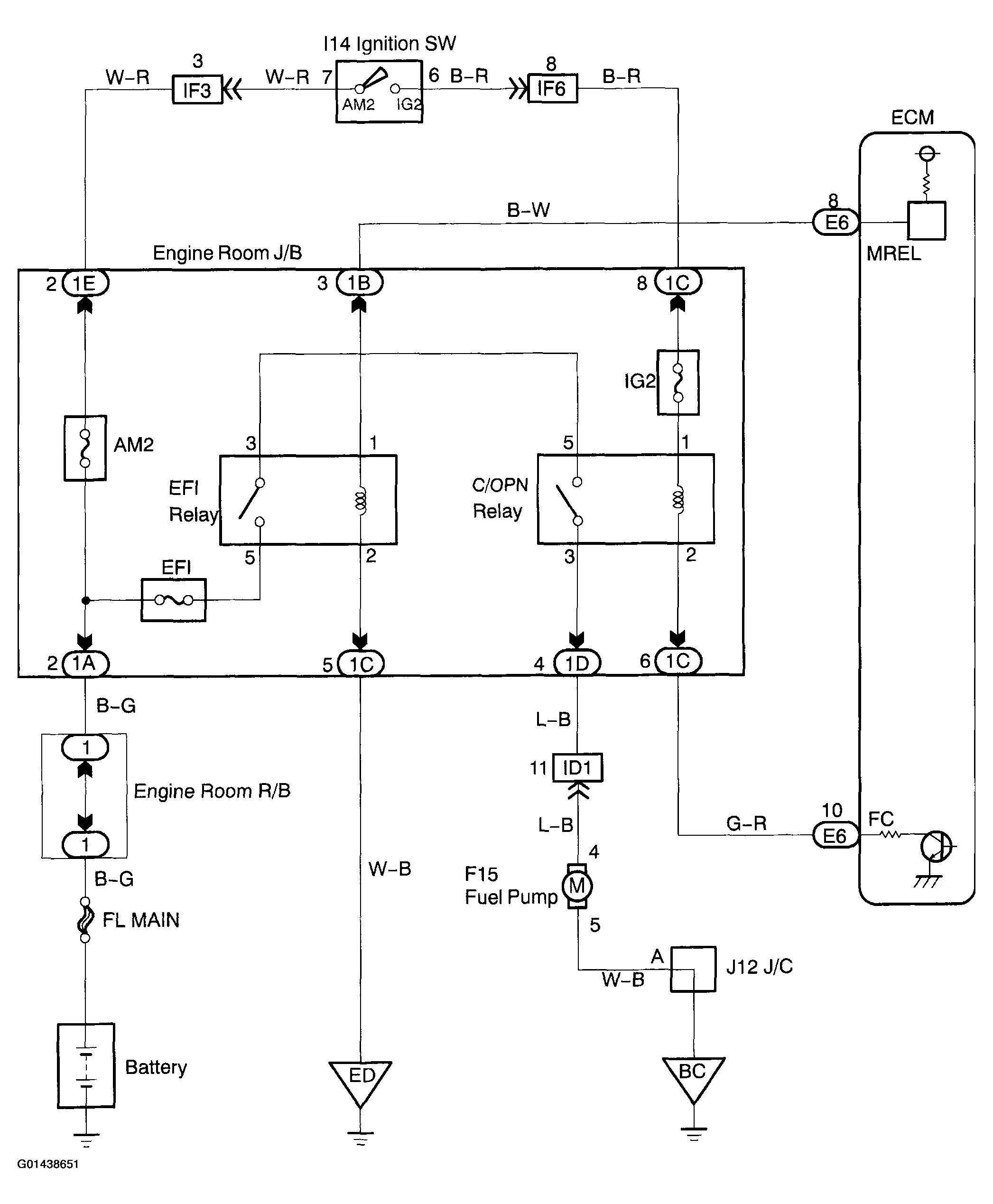

Fuel Pump Control Circuit: Wiring Diagram
Fig 1: Wiring Diagram - Fuel Pump Control Circuit
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
