Engine Control System - Diagnosis: Location

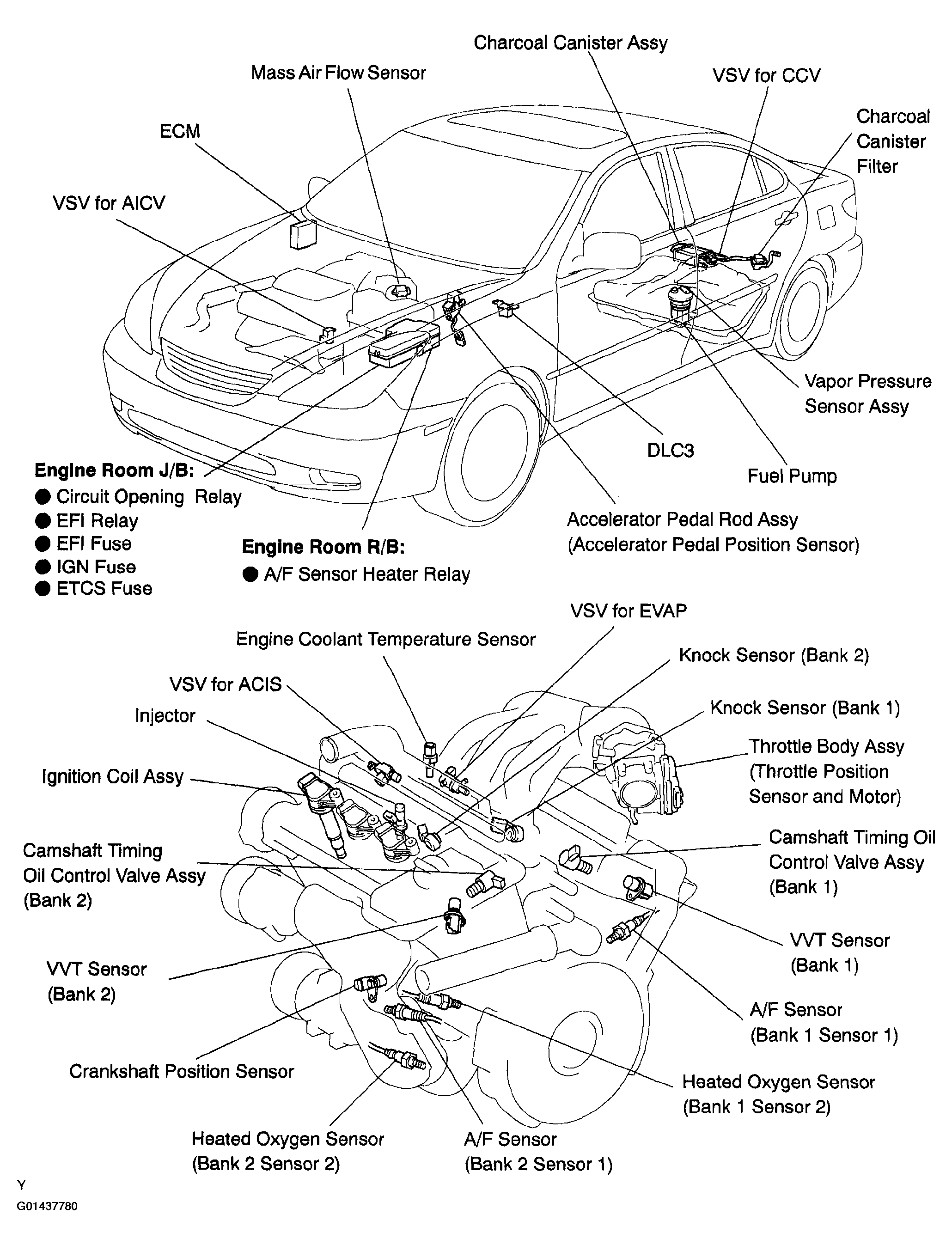

Fig 1: Identifying SFI System Components Location
G01437780Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
