Lexus
›
2004
›
ES 330
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Engine Control System - Diagnosis
›
Mil Circuit
›
Wiring Diagram
Mil Circuit: Wiring Diagram

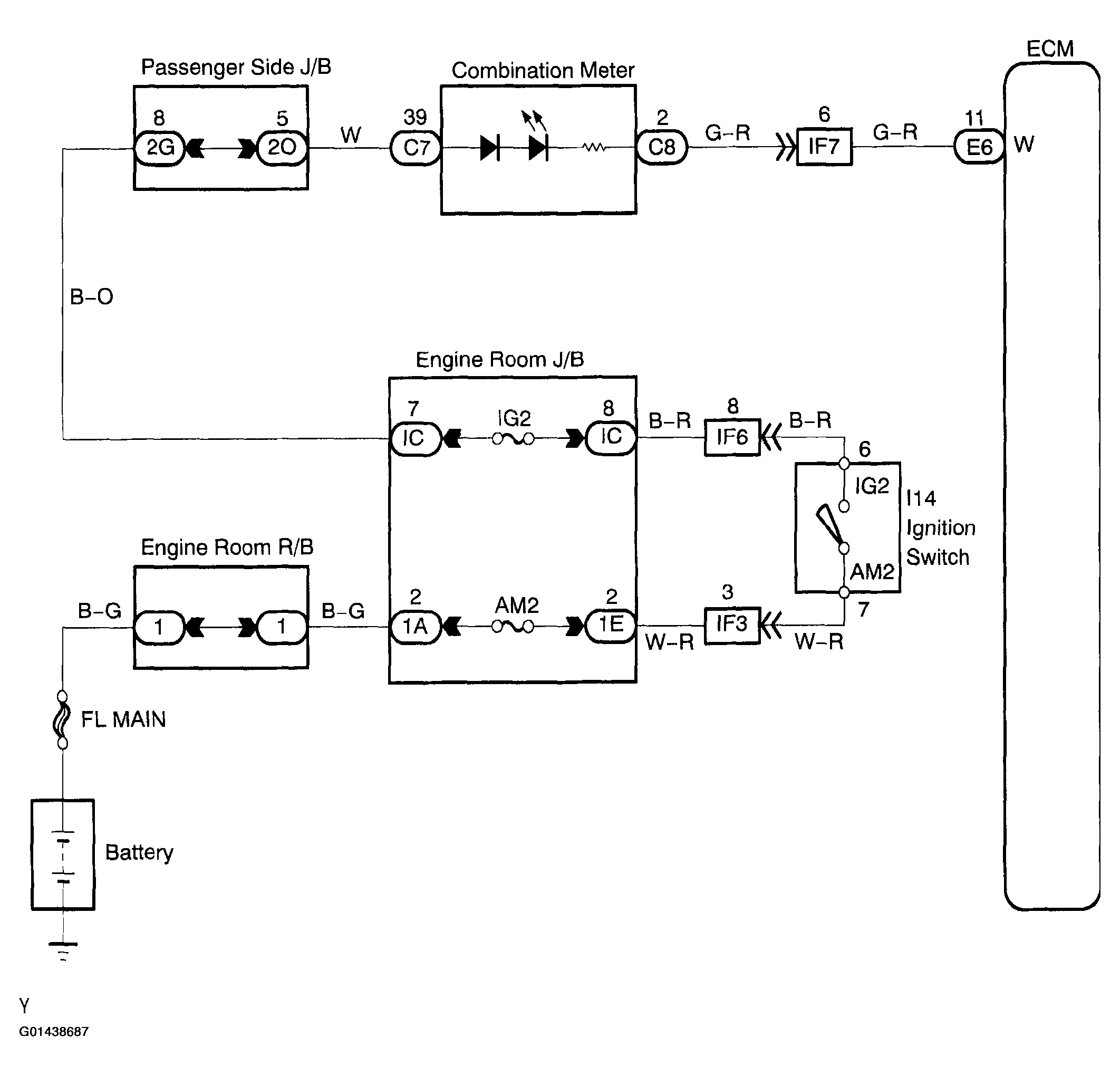

Fig 1: Wiring Diagram - MIL Circuit
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
